simmill VX milling insert, general slot milling, straight slot shape, w=2 mm, R=0.2 mm, Dmin=22 mm, tmax=4.5 mm
Article no.: V22.0200.02 G X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V22.0200.02 G X800 | |
| EAN / GTIN | 4069769303780 | |
| Manufacturer number | ADNUX800 | |
| L-Number | L23830 1667 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

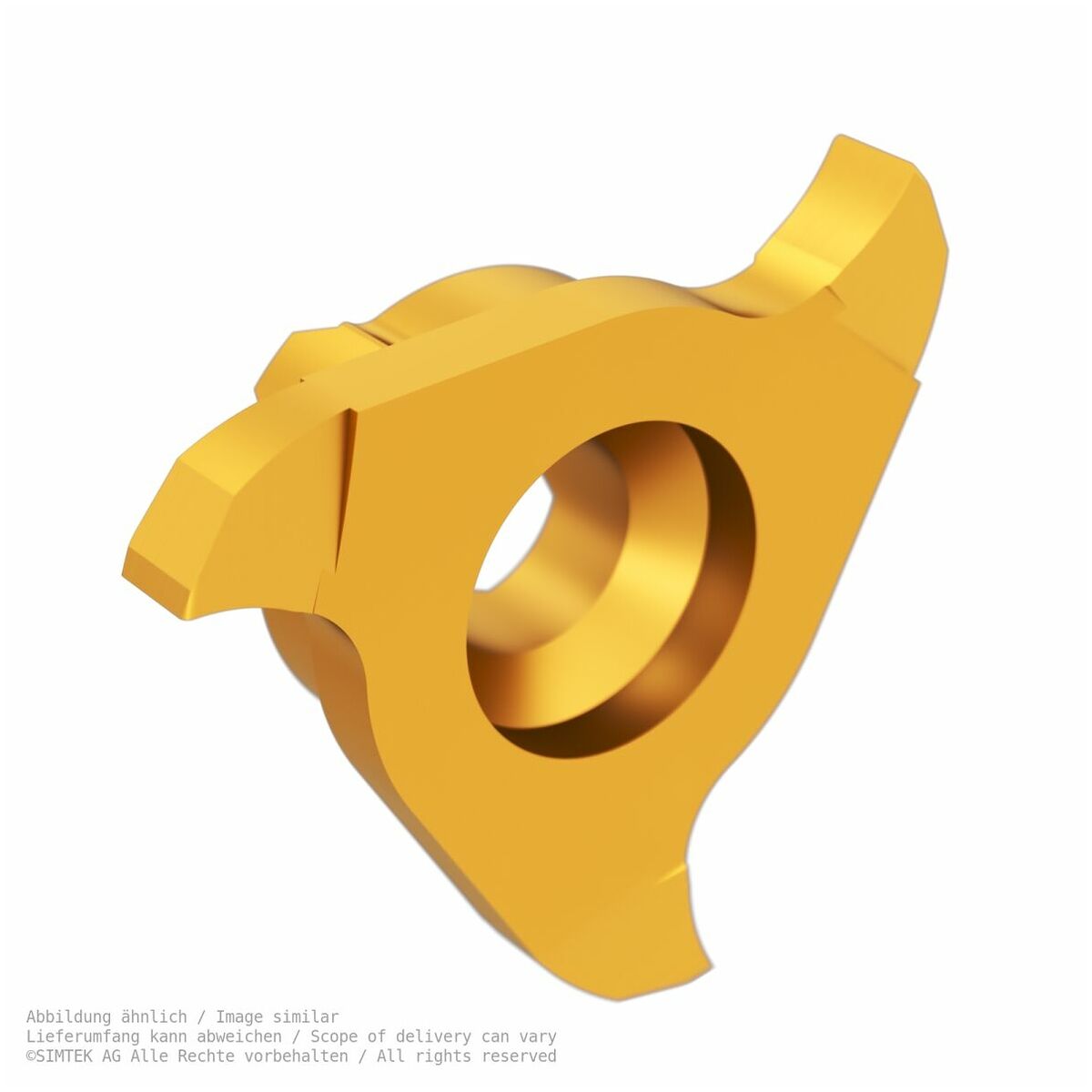

SIMTEK simmill VX milling insert
General groove milling, straight groove shape
w=2 mm, R=0.2 mm, Dmin=22 mm, tmax=4.5 mm

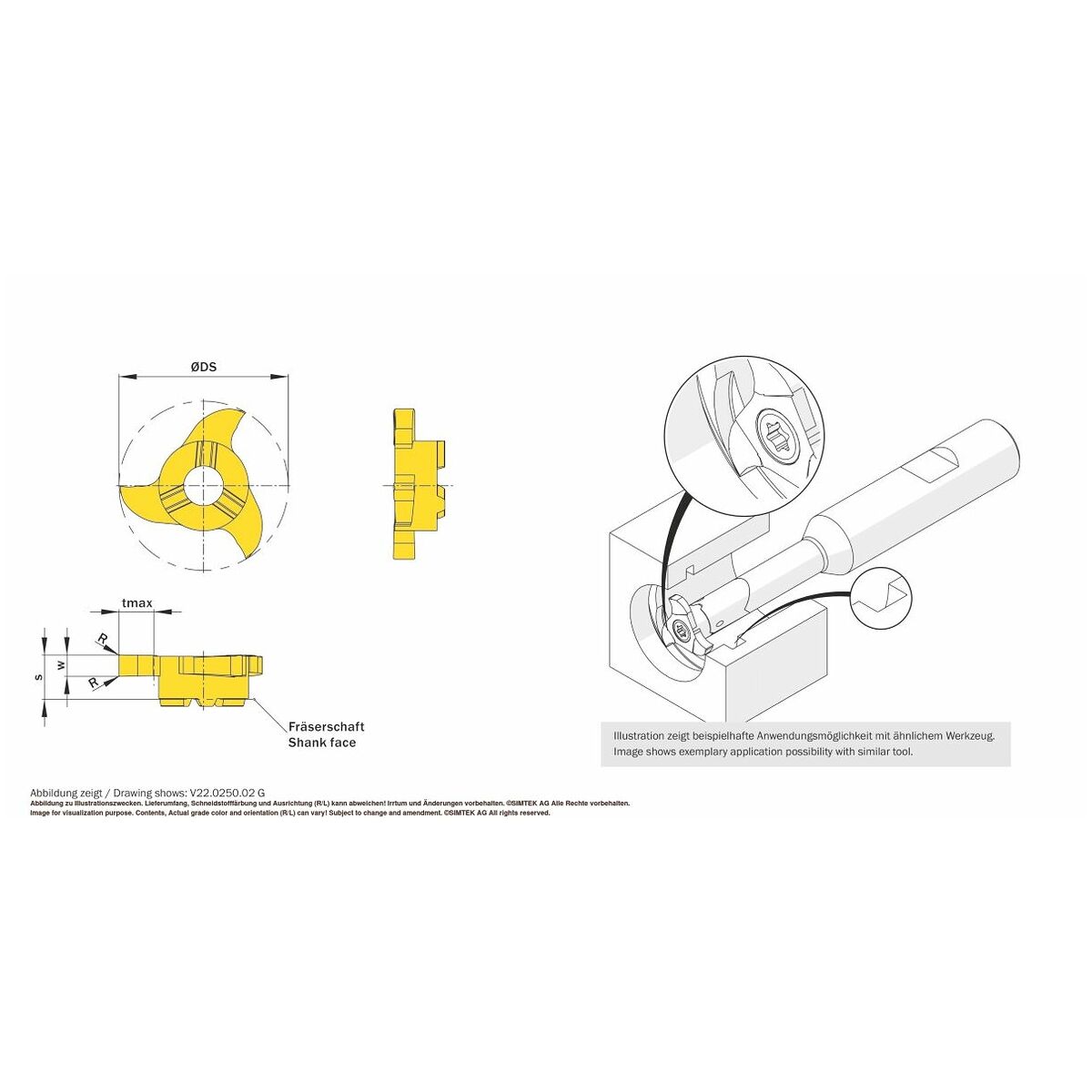

Technical parameters:
- tmax = 4.5 mm
- ZEFP = 3
- S = 5.7 mm
- ØDmin (min. bore) = 22.0 mm
- R = 0.2 mm
- w = 2.0 mm (tolerance +0.02)
- ØDS = 21.7 mm
