simmill VX milling cutter insert, milling of circlip grooves, inside, nominal width=1 mm, Dmin=22 mm, tmax=2.1 mm
Article no.: V22.0100.00 Z X808
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V22.0100.00 Z X808 | |
| EAN / GTIN | 4069769302950 | |
| Manufacturer number | AMB0X808 | |
| L-Number | L23830 102314 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

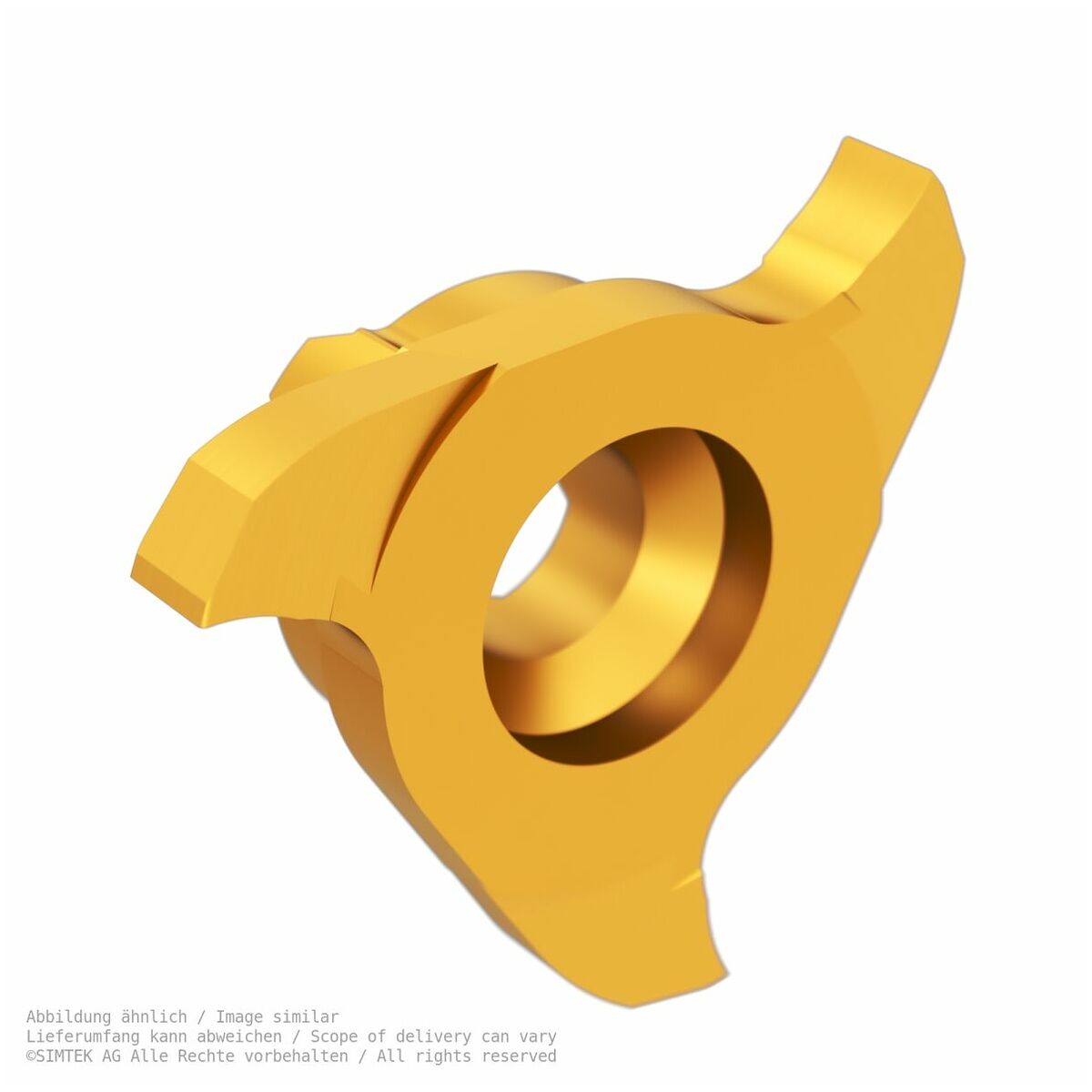

SIMTEK simmill VX milling insert
Milling of retaining ring grooves, internal
Nominal width = 1 mm, Dmin = 22 mm, tmax = 2.1 mm

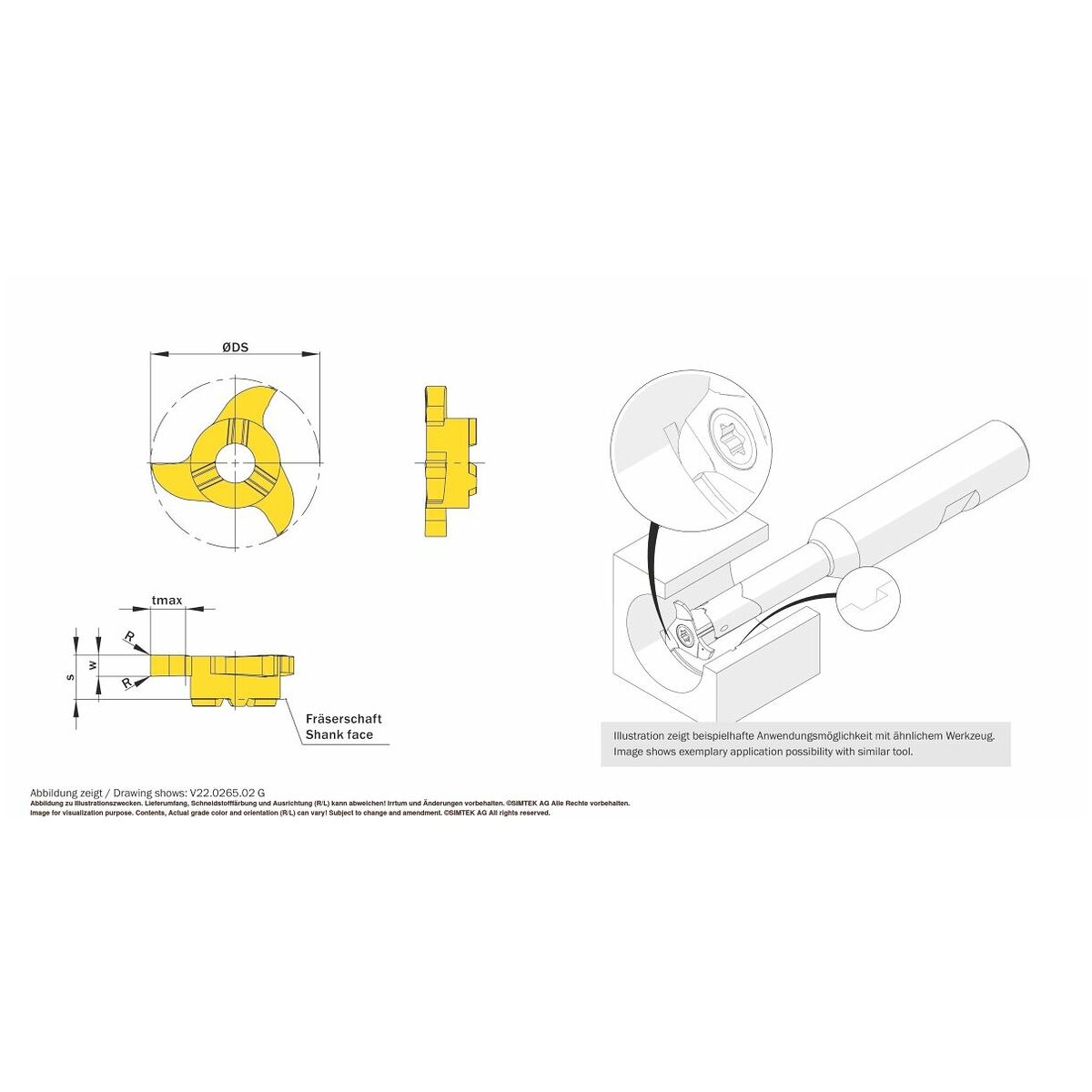

Technical parameters:
- ZEFP = 3
- R = 0.0 mm
- ØDmin (min. bore) = 22.0 mm
- tmax = 2.1 mm
- S = 5.6 mm
- ØDS = 21.7 mm
- Nut width = 1.0 mm
- w = 1.07 mm (tolerance -0.02)
