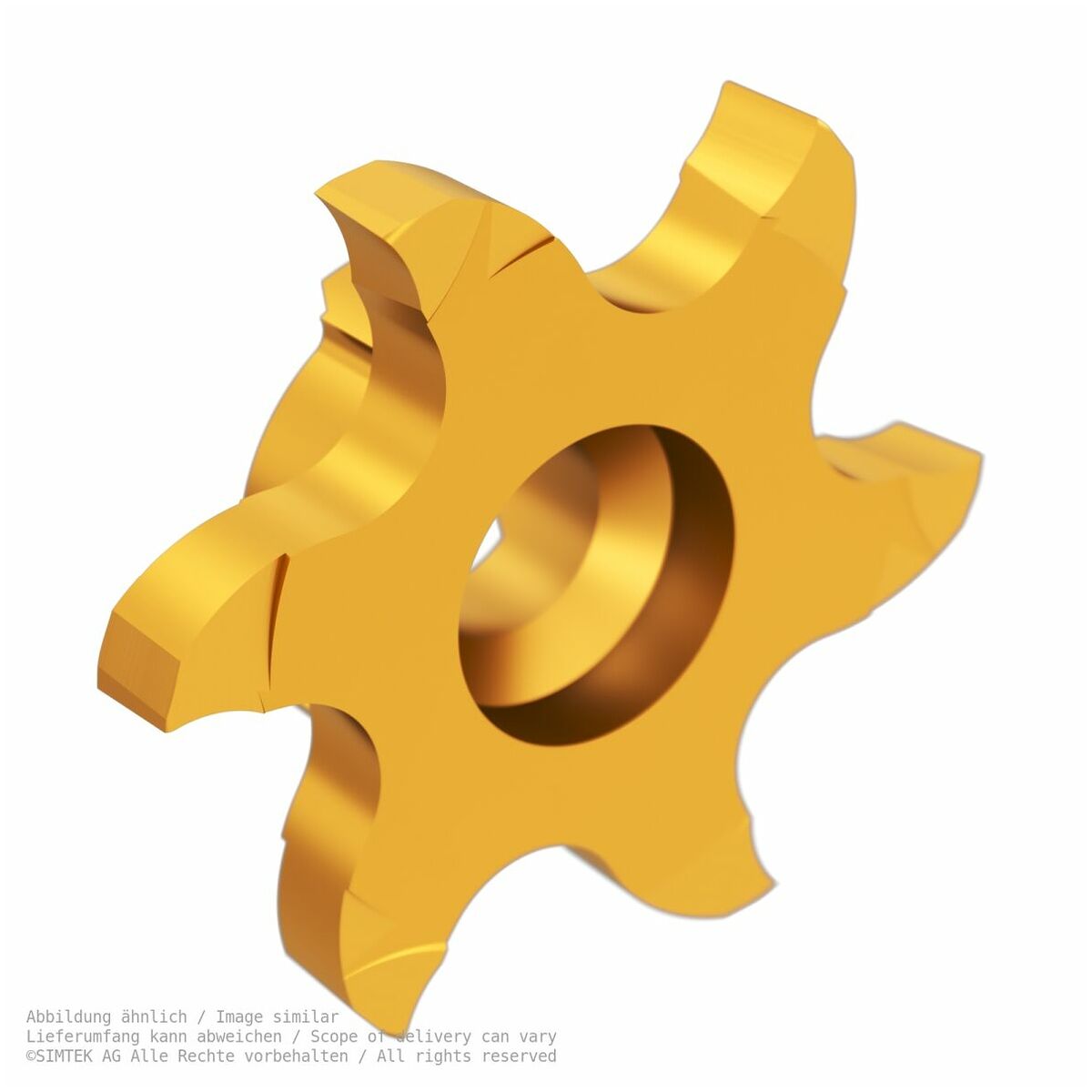

simmill VX cutting insert, general slot milling, for soft cuts, w=2.5 mm, R=0.2 mm Dmin=28 mm
Article no.: V06.0250.020.28 GY X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V06.0250.020.28 GY X800 | |
| EAN / GTIN | 4069769297614 | |
| Manufacturer number | AYJCX800 | |
| L-Number | L23830 1487 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:
SIMTEK simmill VX milling insert
General groove milling, for smooth cuts
w=2.5 mm, R=0.2 mm Dmin=28 mm

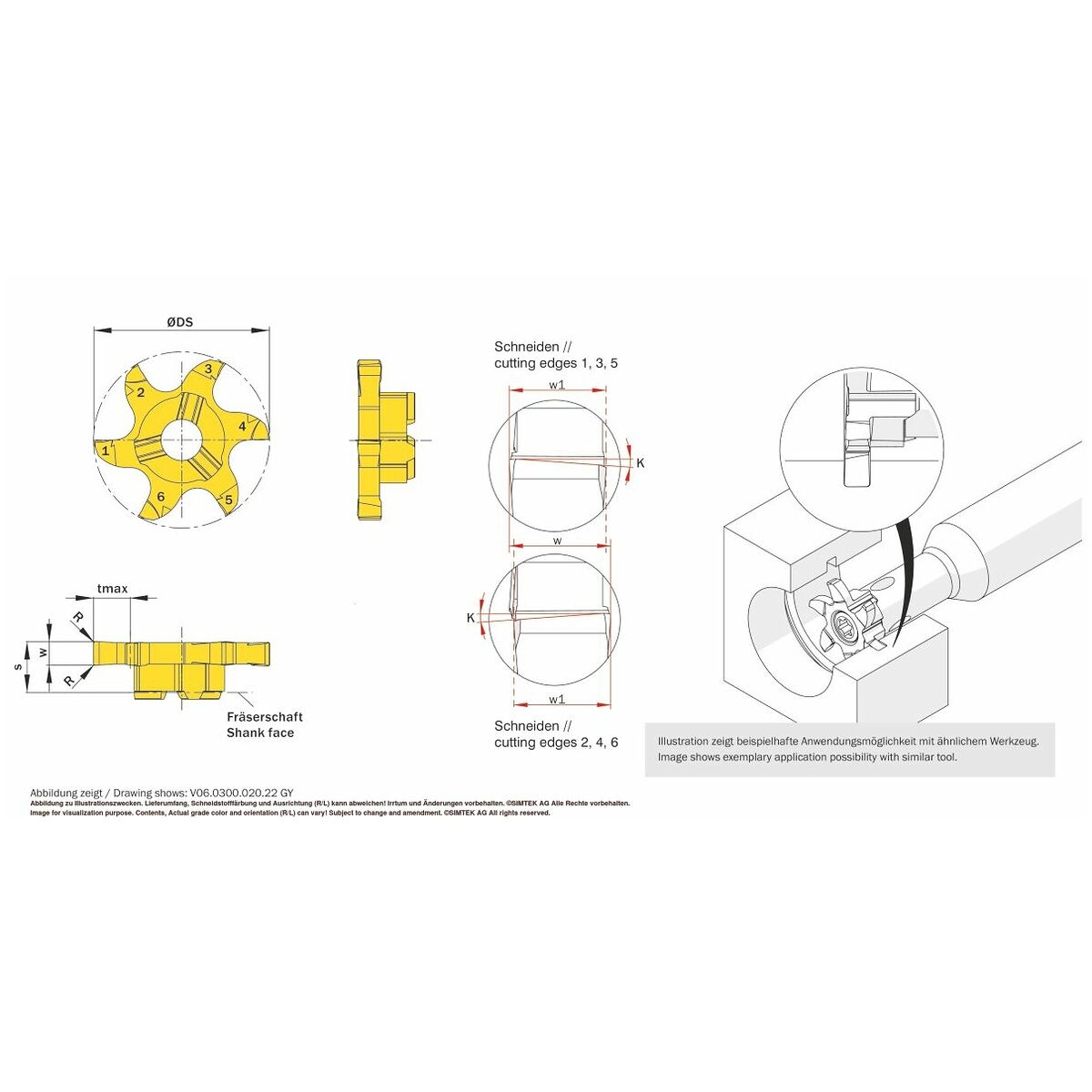

Technical parameters:
- S = 6.2 mm
- w1 = 2.40 mm
- ZEFP = 6
- tmax = 6.5 mm
- ØDmin (min. bore) = 28.0 mm
- w = 2.50 mm (tolerance +0.02)
- Nut width = 0.0 mm
- R = 0.2 mm
- ØDS = 27.7 mm
