simmill VX milling insert, general slot milling, straight slot shape, w=1.5 mm, R=0.1 mm, Dmin=40 mm, tmax=13.5 mm
Article no.: V06.0150.010.40 G X500
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V06.0150.010.40 G X500 | |
| EAN / GTIN | 4069769296259 | |
| Manufacturer number | AWX8X500 | |
| L-Number | L23830 1915 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

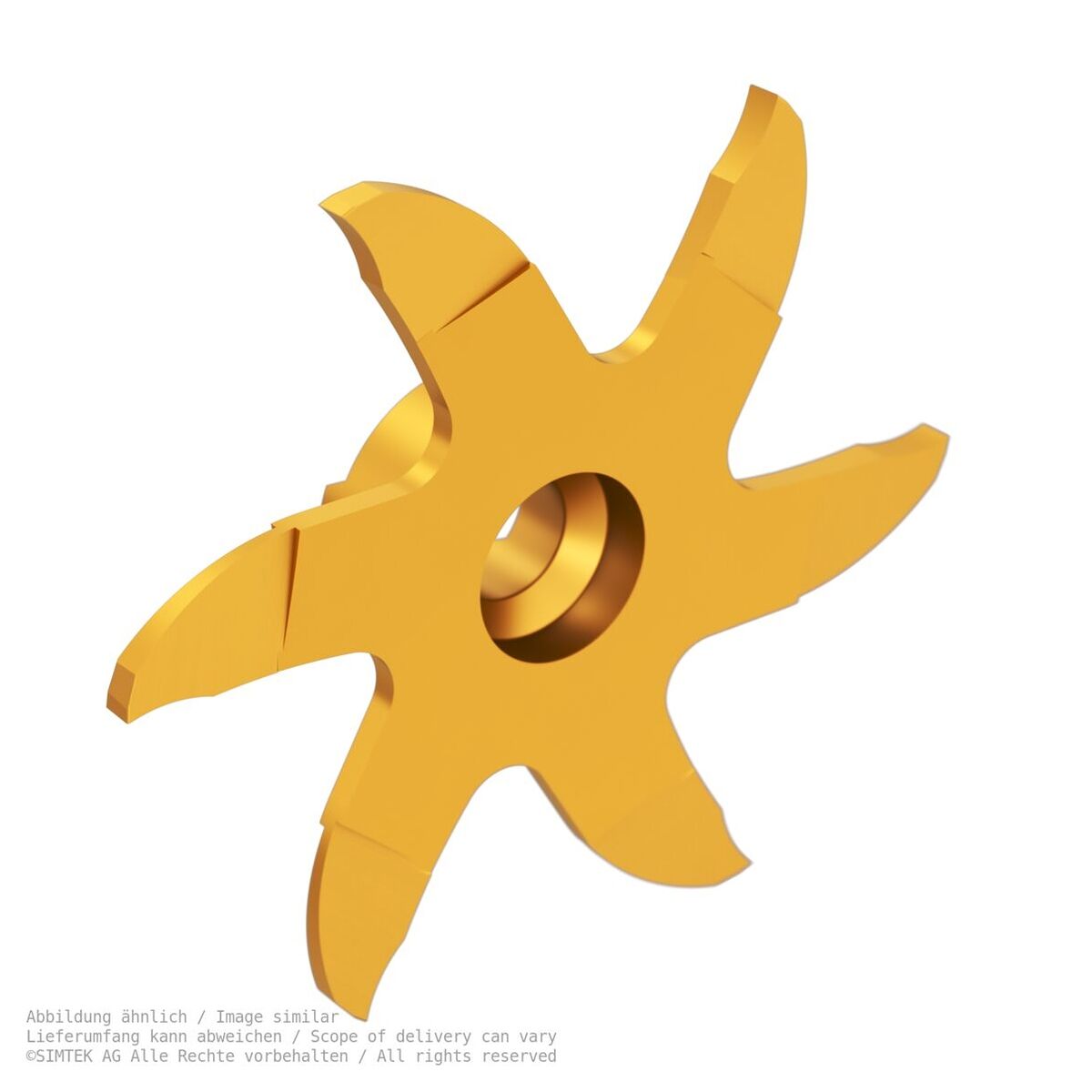

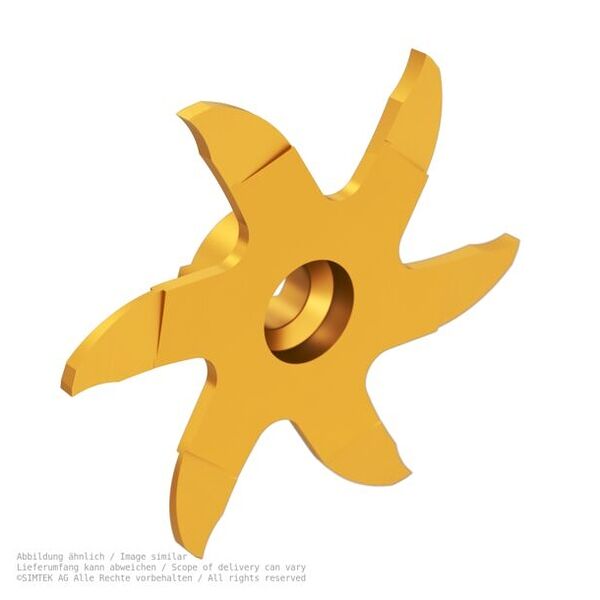

SIMTEK simmill VX milling insert
General groove milling, straight groove shape
w=1.5 mm, R=0.1 mm, Dmin=40 mm, tmax=13.5 mm

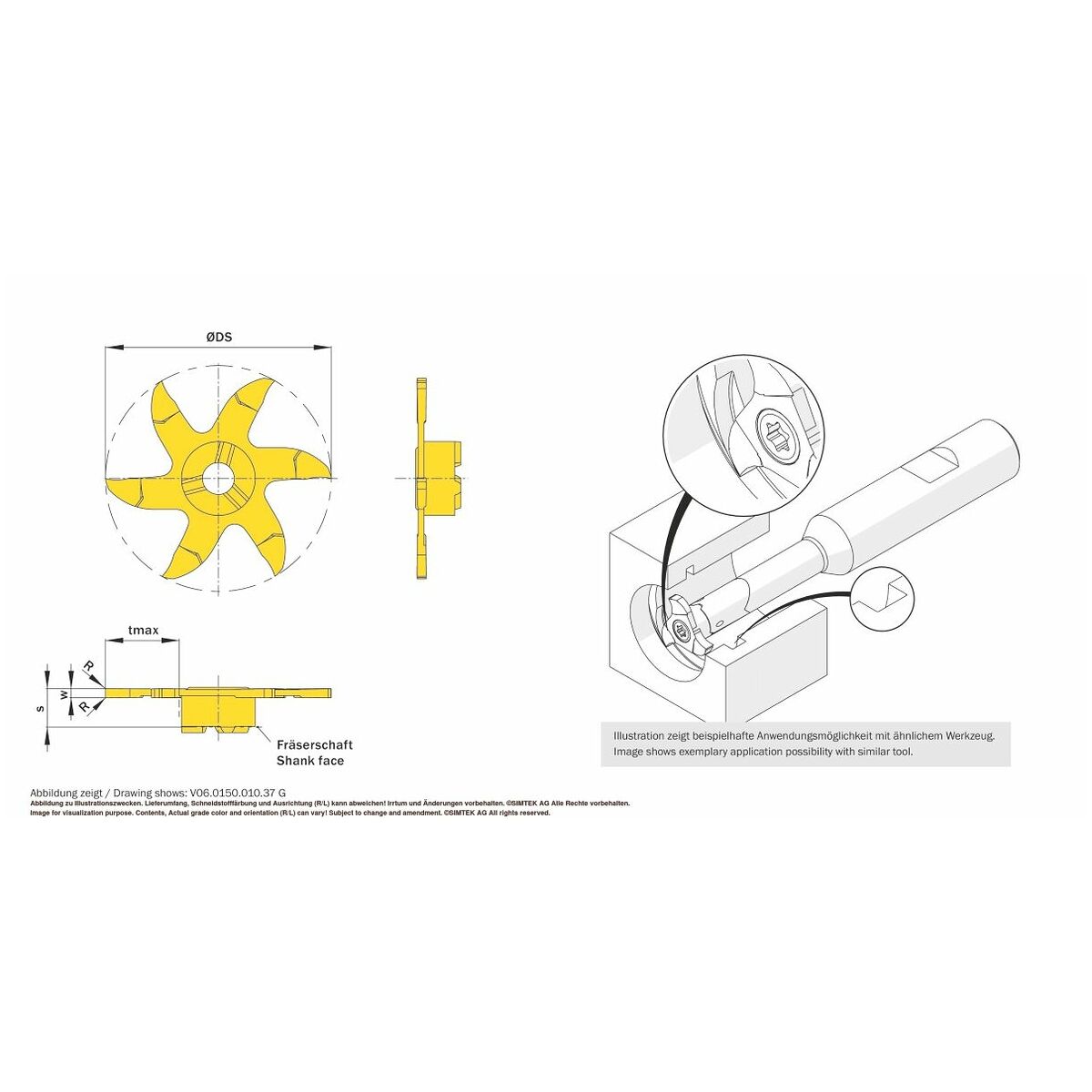

Technical parameters:
- ØDmin (min. bore) = 40.0 mm
- ZEFP = 6
- ØDS = 39.7 mm
- tmax = 13.5 mm
- R = 0.1 mm
- w = 1.5 mm (tolerance +0.02)
- S = 6.2 mm
