simmill VX milling insert, general slot milling, straight slot shape, w=1 mm, R=0.1 mm, Dmin=28 mm, tmax=6.5 mm
Article no.: V06.0100.010.28 G X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V06.0100.010.28 G X800 | |
| EAN / GTIN | 4069769295405 | |
| Manufacturer number | AASZX800 | |
| L-Number | L23830 1630 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

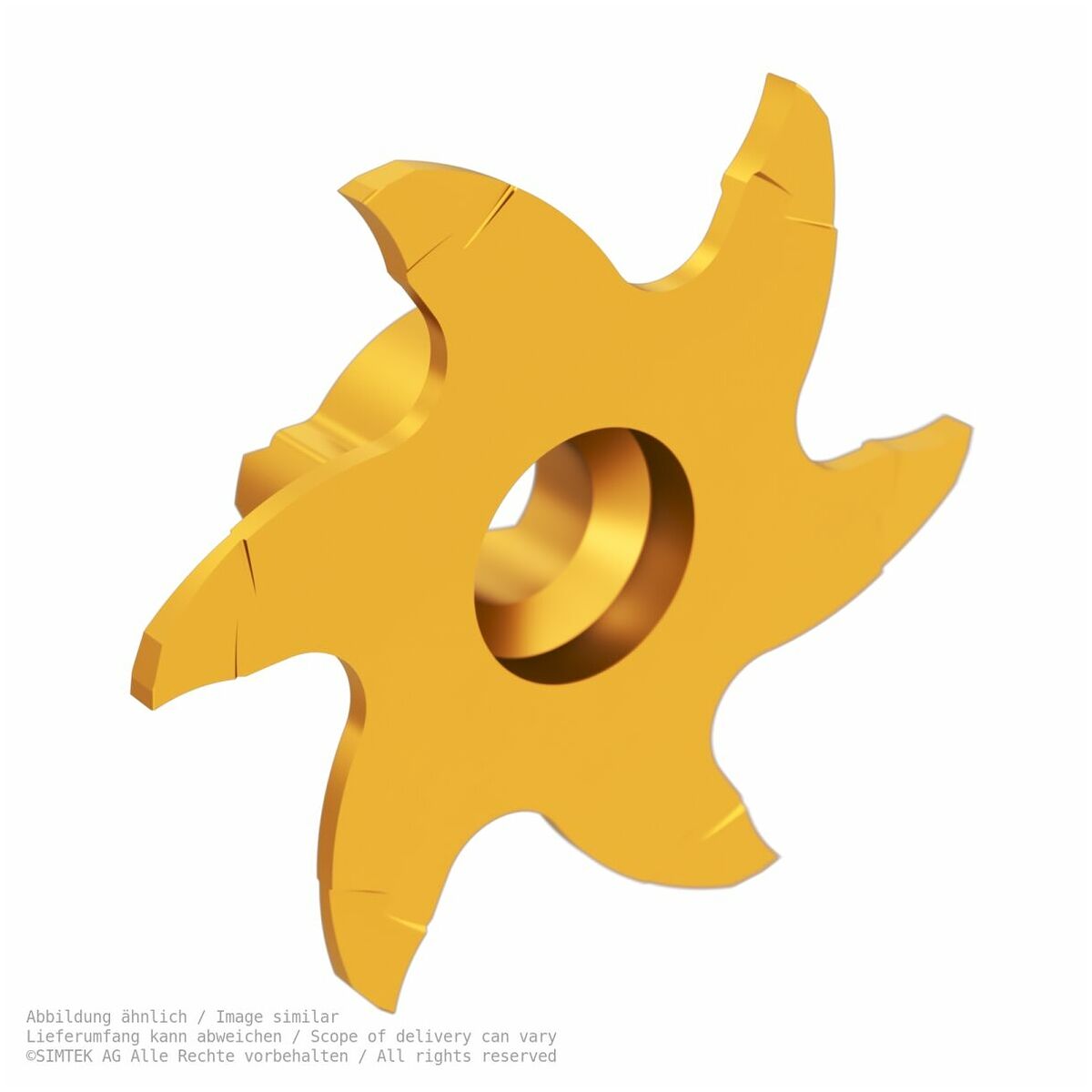

SIMTEK simmill VX milling insert
General groove milling, straight groove shape
w=1 mm, R=0.1 mm, Dmin=28 mm, tmax=6.5 mm

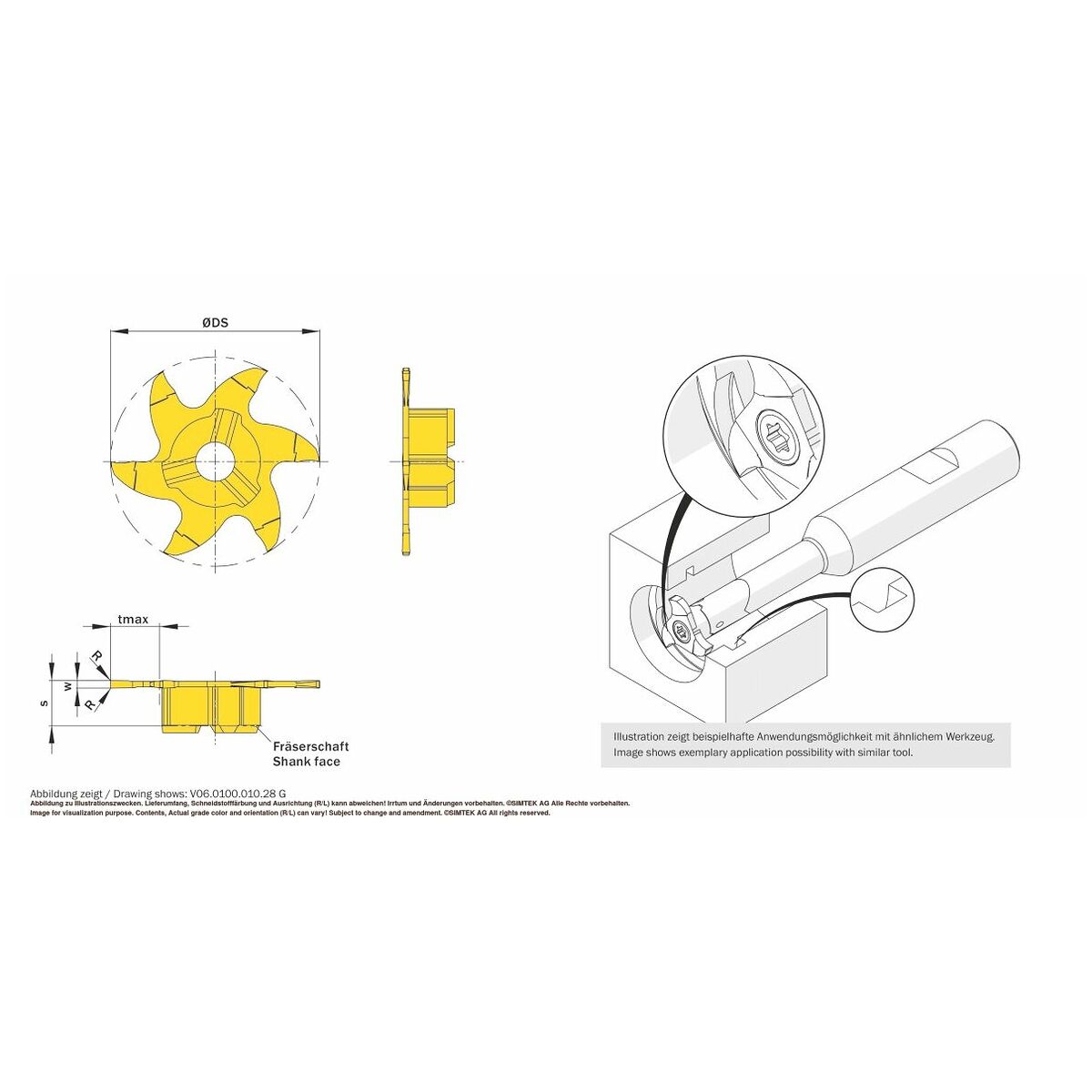

Technical parameters:
- w = 1.0 mm (tolerance +0.02)
- ZEFP = 6
- ØDS = 27.7 mm
- S = 6.0 mm
- tmax = 6.5 mm
- R = 0.1 mm
- ØDmin (min. bore) = 28.0 mm
