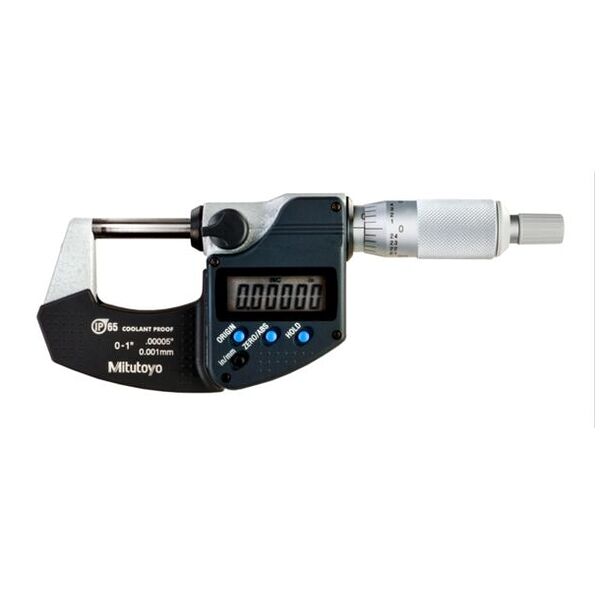

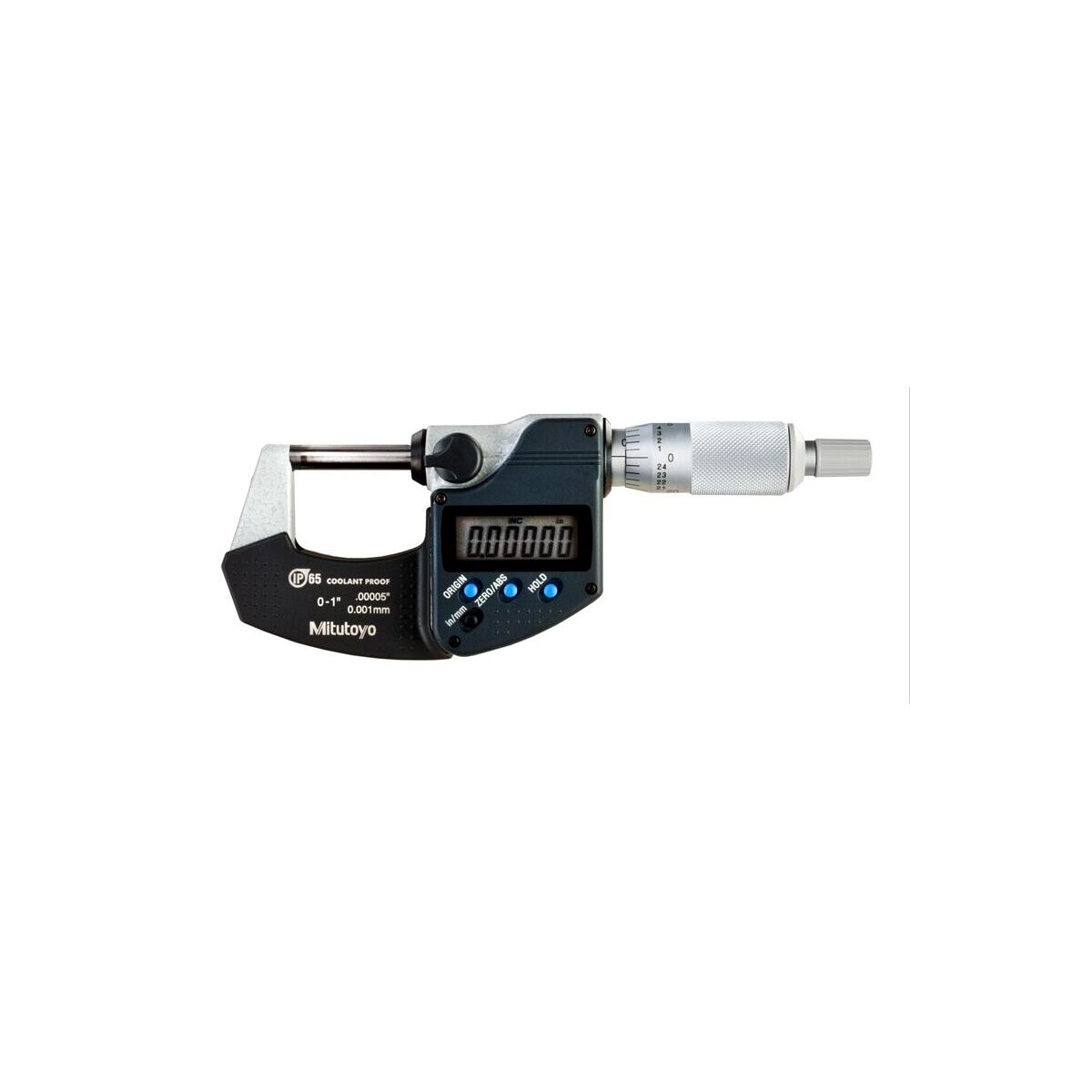

Digital Micrometer IP65, Inch/Metric 0-1″, w/o Output, Type: 0-1
Article no.: U42028 0-1
Article code:
- IP Index of Protection: IP 65
Product details
Technical Data
| IP Index of Protection | IP 65 | |
| Measurement technology | digital | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number | U42028 0-1 |
Description
Version:
This IP65 ratchet stop micrometer without data output, is highly robust and offers outstanding accuracy with the following benefits; Oil-resistant material used for all plastic parts, extraordinary battery life of 2,4 years and excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
Description:
This IP65 Micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits: Oil-resistant material used for all plastic parts. Extraordinary battery life of 2,4 years*. Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
Feature:
Digital/Analogue: Digital
Measuring range: 0 - 1
Digit step value: 0,00005″/0,001 mm
Accuracy: ±0.00005″
Limit value of the measuring deviation J MPE: ±0.00005″.
Scale: Scale drum and sleeve satin chrome plated ø18 mm
Display: LCD, digit height 7.5 mm
Measuring force: 5-10
ABS / INC (INC ZERO): Yes
Low voltage alarm: Yes
Inch/Metric: Inch/Metric
Scope of delivery: Incl. box, key, battery, setting standard (from 1″), with factory certificate (0-2″)
Power supply: 1x battery SR-44
Battery life: Approx. 2.4 years for models ≤4″ 1.2 years for >4″.
Measuring range: 0 - 1
Digit step value: 0,00005″/0,001 mm
Accuracy: ±0.00005″
Limit value of the measuring deviation J MPE: ±0.00005″.
Scale: Scale drum and sleeve satin chrome plated ø18 mm
Display: LCD, digit height 7.5 mm
Measuring force: 5-10
ABS / INC (INC ZERO): Yes
Low voltage alarm: Yes
Inch/Metric: Inch/Metric
Scope of delivery: Incl. box, key, battery, setting standard (from 1″), with factory certificate (0-2″)
Power supply: 1x battery SR-44
Battery life: Approx. 2.4 years for models ≤4″ 1.2 years for >4″.
