simmill UX milling insert, face and face milling, tmax=5.5 mm, R=0.2 mm, Dmin=18 mm
Article no.: U06.PL55.020.18 Y X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | U06.PL55.020.18 Y X800 | |
| EAN / GTIN | 4069769289442 | |
| Manufacturer number | AZUDX800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

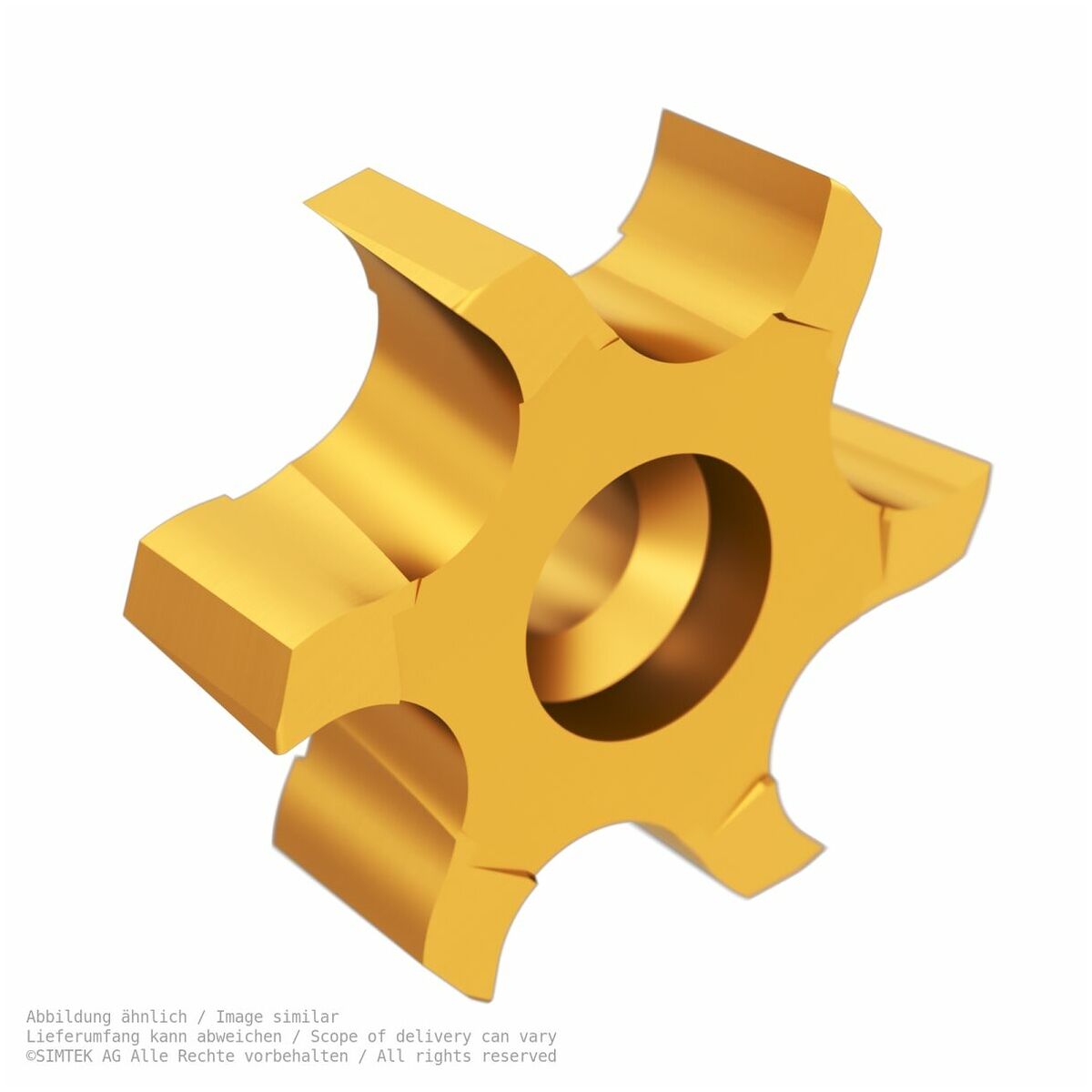

SIMTEK simmill UX milling insert
Face and flat milling
tmax=5.5 mm, R=0.2 mm, Dmin=18 mm

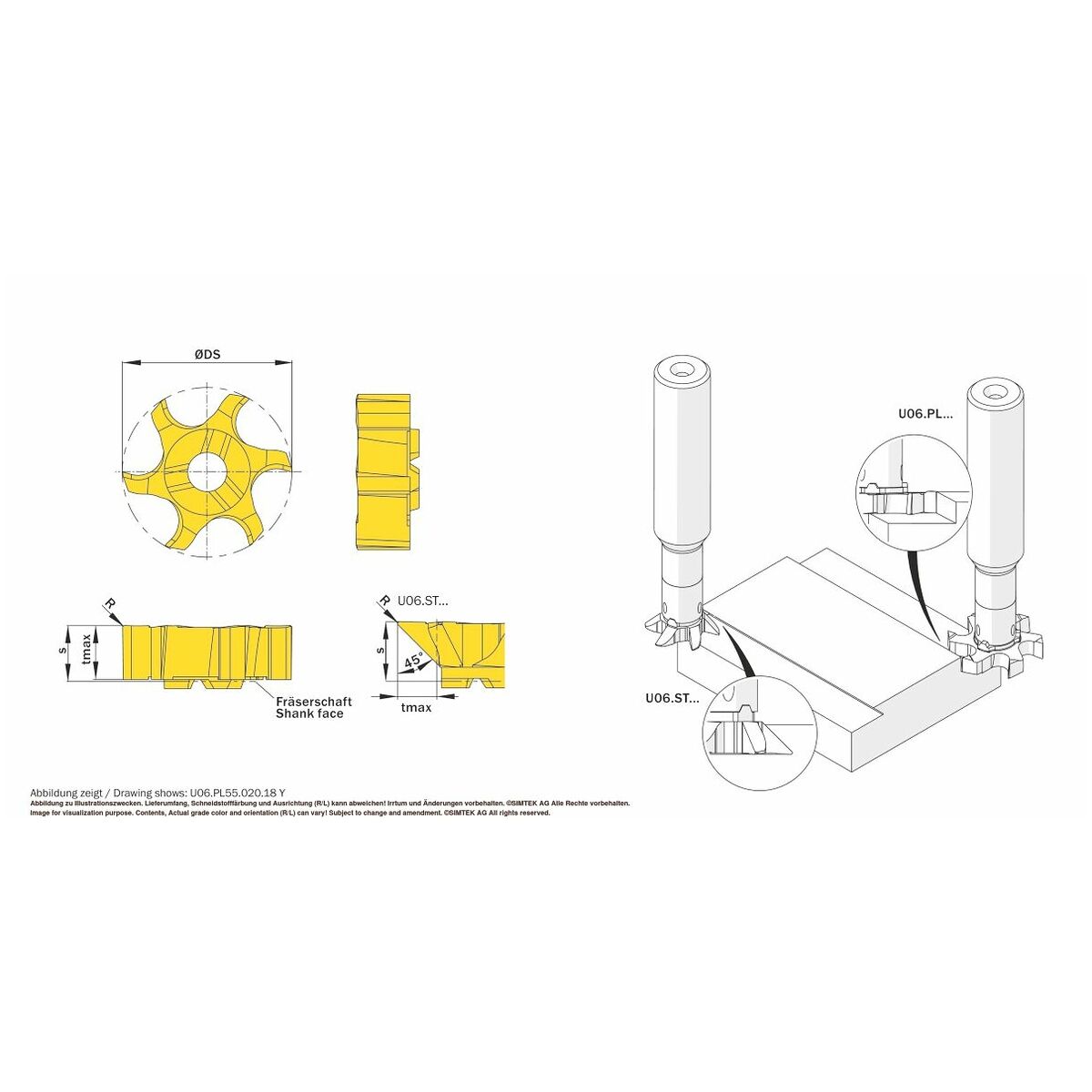

Technical parameters:
- tmax = 5.5 mm
- R = 0.2 mm
- ØDmin (min. bore) = 18.0 mm
- S = 5.8 mm
- ØDS = 17.7 mm
- ZEFF/ZEFP = 6
