simmill UX milling insert, milling of chamfers, both sides, angle=45°, tmax=2.2 mm, Dmin=18 mm
Article no.: U06.4545.020.18 F X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | U06.4545.020.18 F X800 | |
| EAN / GTIN | 4069769289312 | |
| Manufacturer number | AK5YX800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

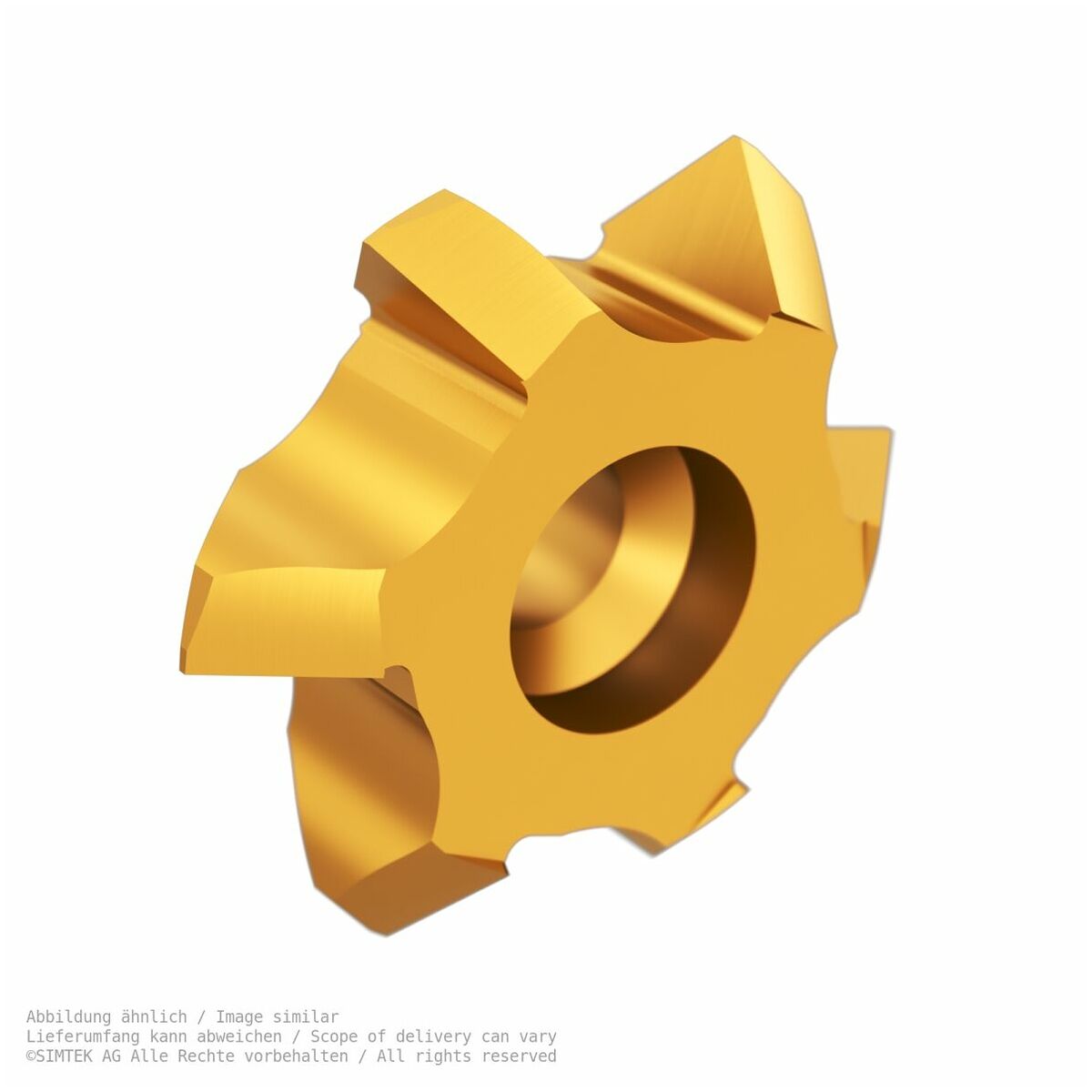

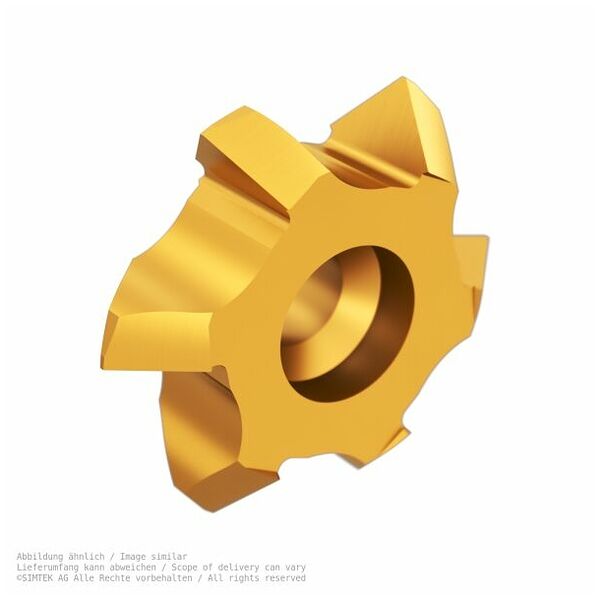

SIMTEK simmill UX milling insert
Milling chamfers, both sides
Angle = 45°, tmax = 2.2 mm, Dmin = 18 mm

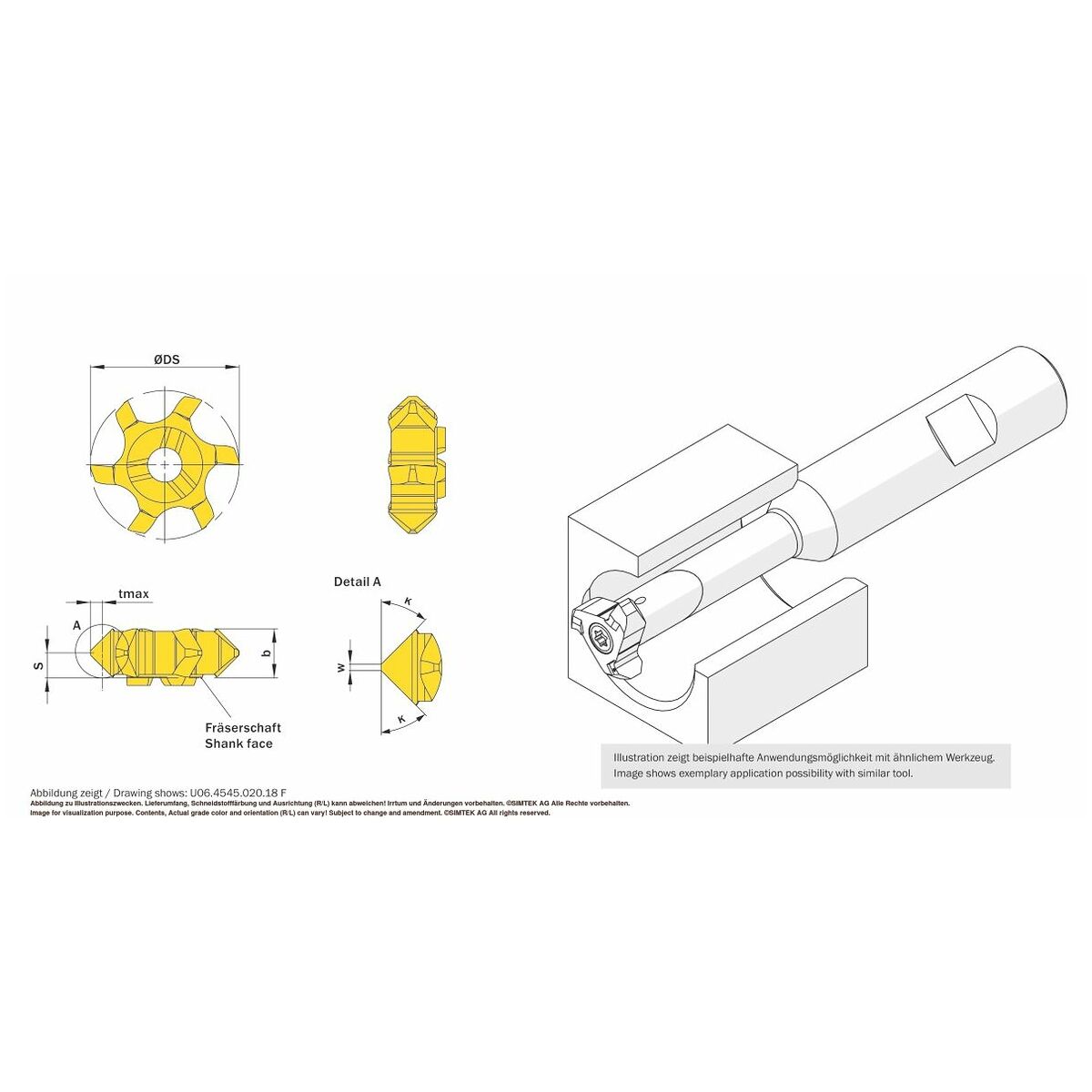

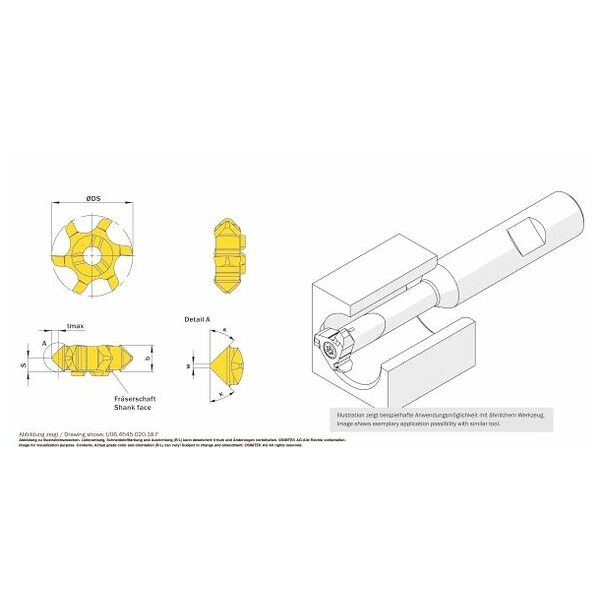

Technical parameters:
- tmax = 2.2 mm
- ØDS = 17.7 mm
- b = 5.75 mm
- S = 3.0 mm
- ØDmin (min. bore) = 18.0 mm
- w = 0.2 mm
- κ = 45°
- ZEFP = 6
