simturn E3 indexable insert, thread, internal, metric ISO, full profile, TP=1 mm
Article no.: TE3.MT10.02 IM L X400
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.MT10.02 IM L X400 | |
| EAN / GTIN | 4069769243376 | |
| Manufacturer number | AGUZX400 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

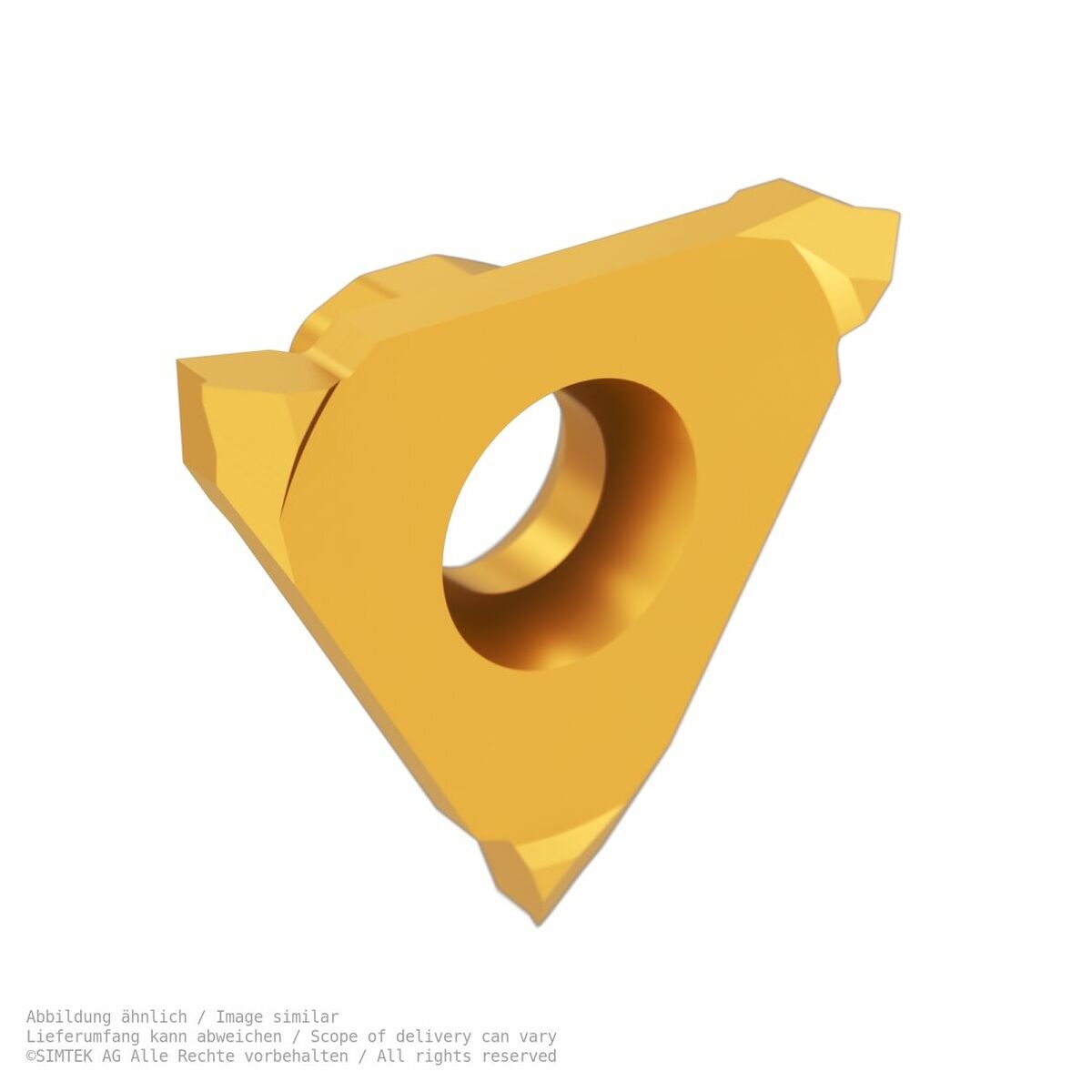

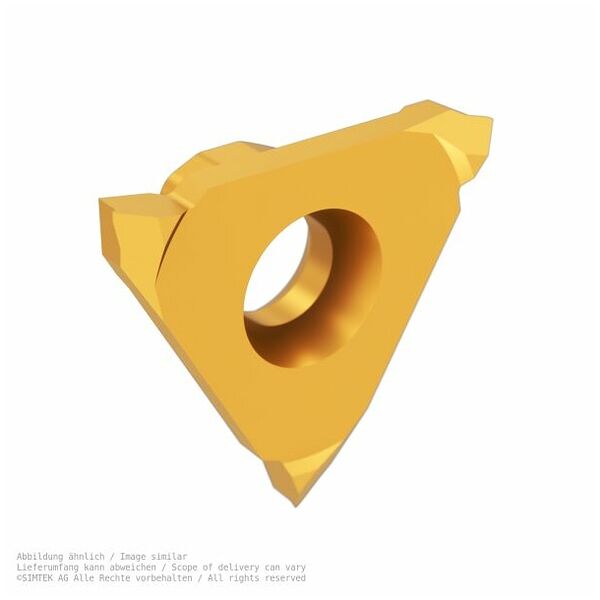

SIMTEK simturn E3 indexable insert
Thread, internal, metric. ISO, full profile
TP=1 mm

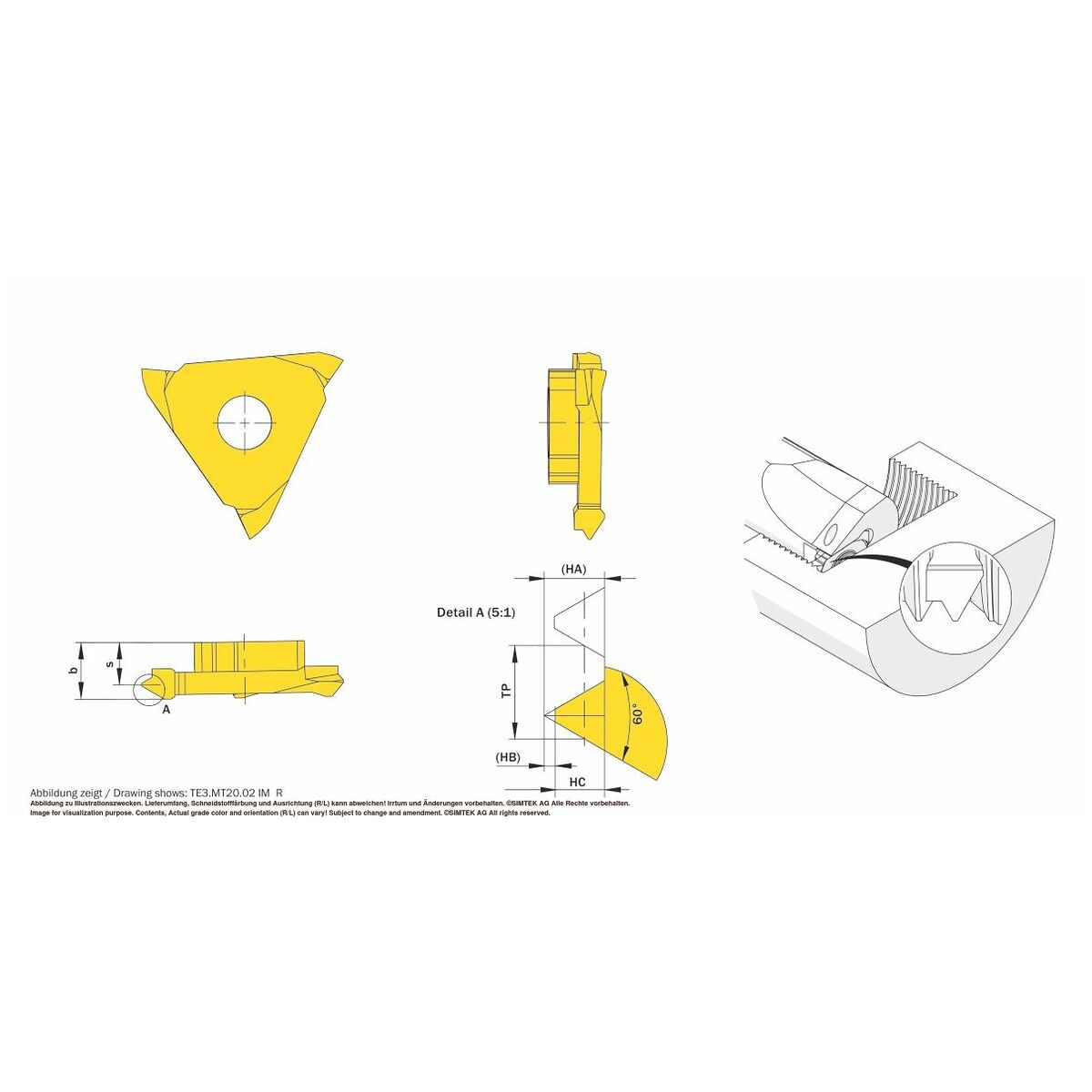

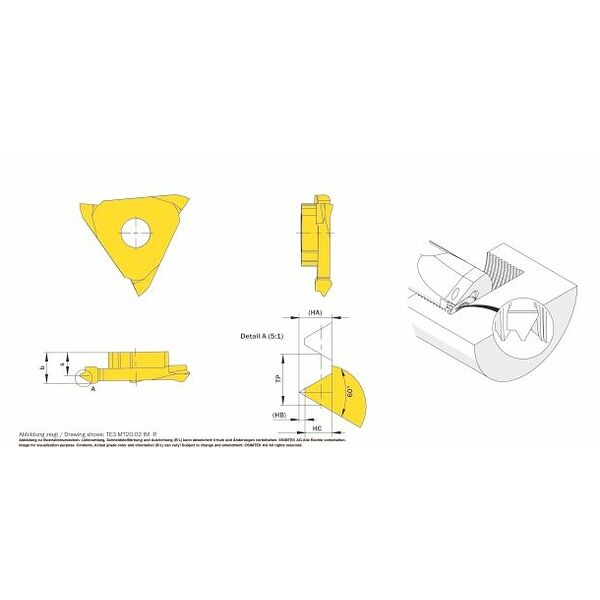

Technical parameters:
- HB = 0.108 mm
- TP pitch = 1.0 mm
- HC = 0.541 mm
- b = 5.6 mm
- S = 4.65 mm
- HA = 0.650 mm
