simturn E3 Indexable insert, thread, external, metric ISO, full profile, P=0.8 mm
Article no.: TE3.MT08.02 EM L X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.MT08.02 EM L X800 | |
| EAN / GTIN | 4069769242935 | |
| Manufacturer number | ATWMX800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

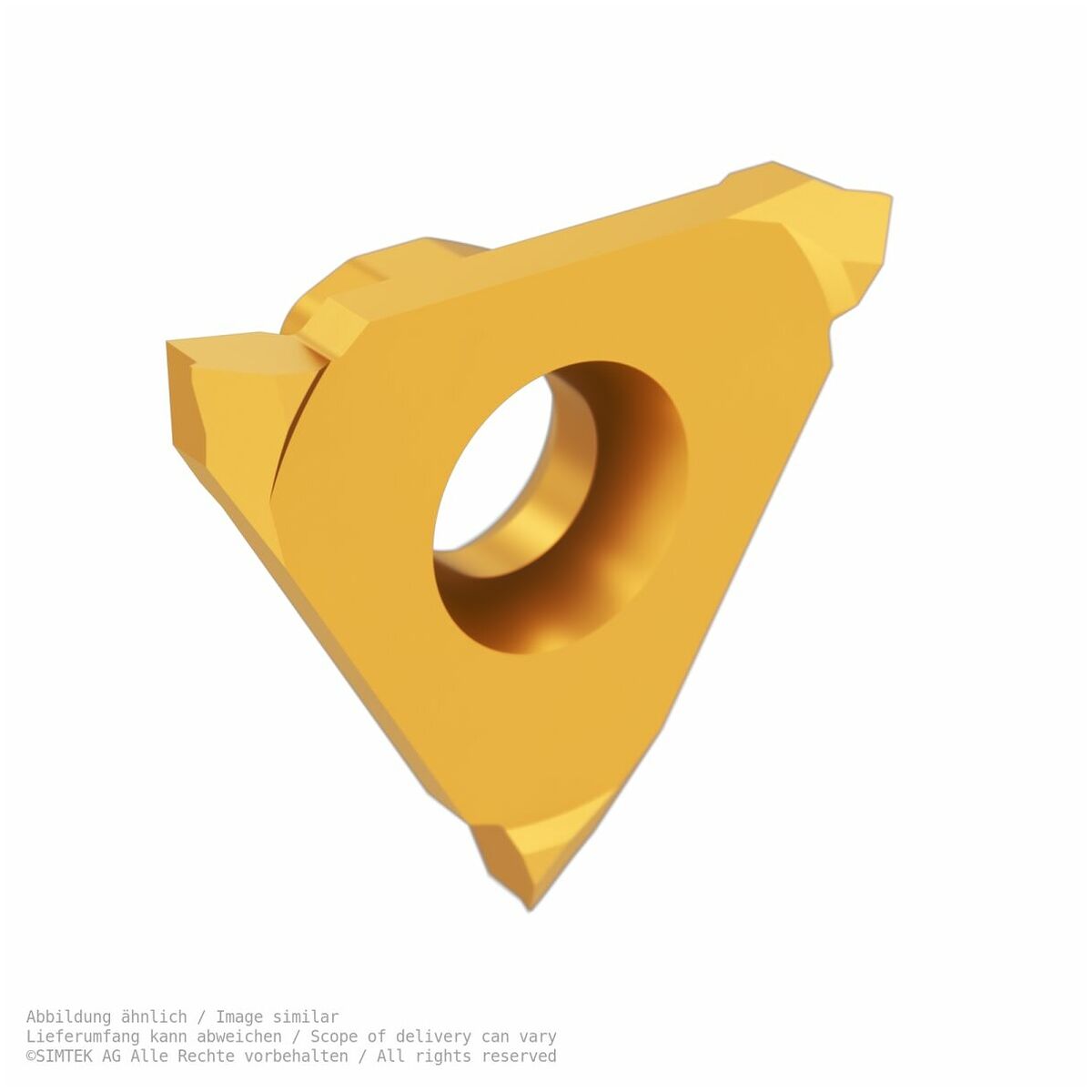

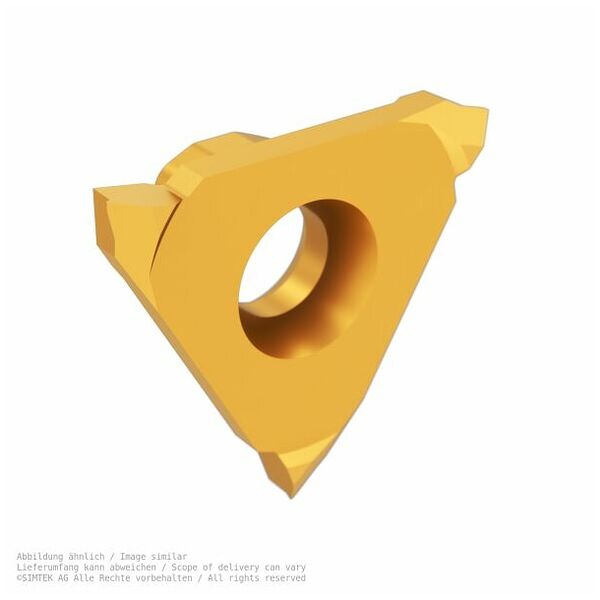

SIMTEK simturn E3 indexable insert
Thread, external, metric ISO, full profile
P=0.8 mm

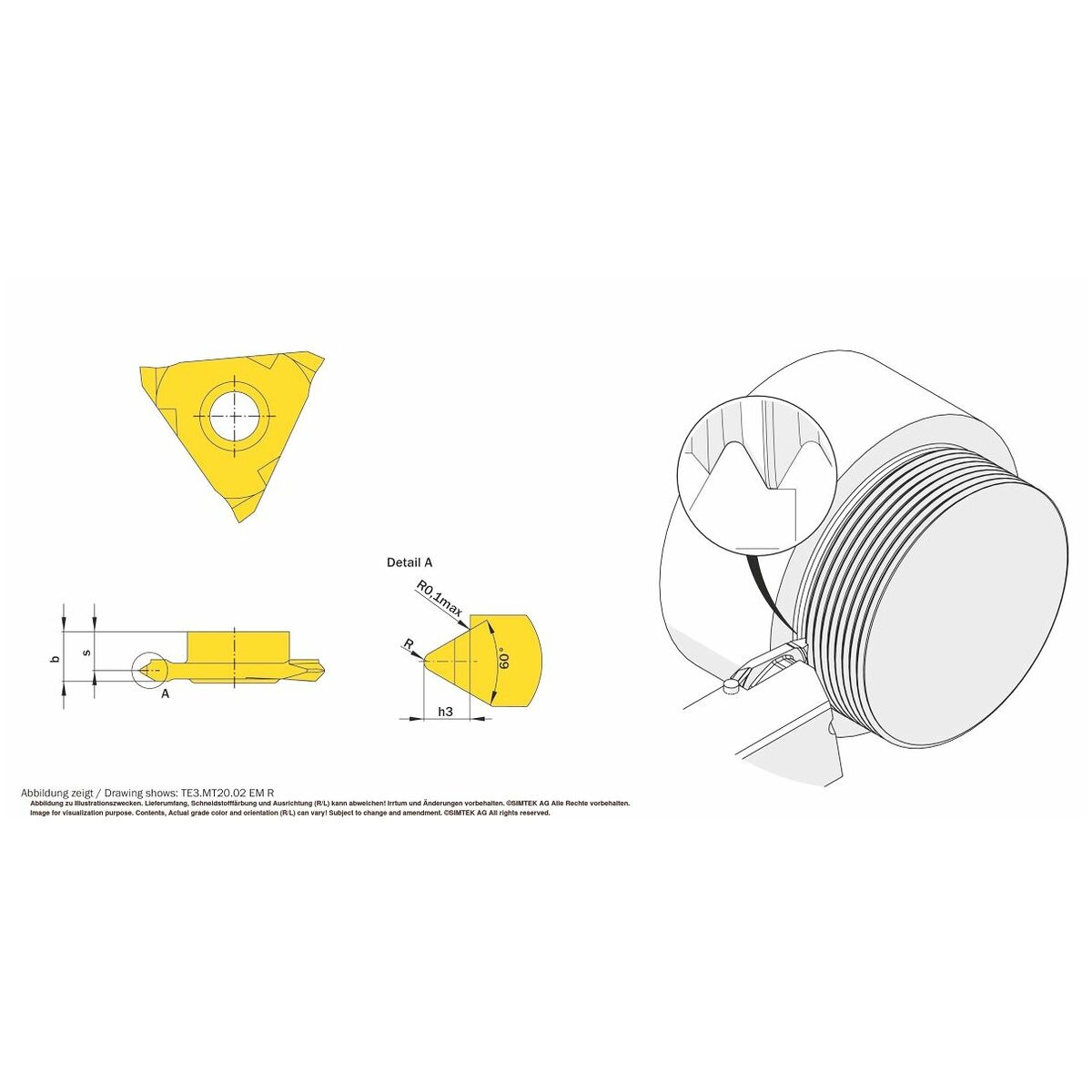

Technical parameters:
- Pitch (from) = 0.80 mm
- b = 5.60 mm
- h3 = 0.49 mm
- R = 0.12 mm
- S = 4.70 mm
