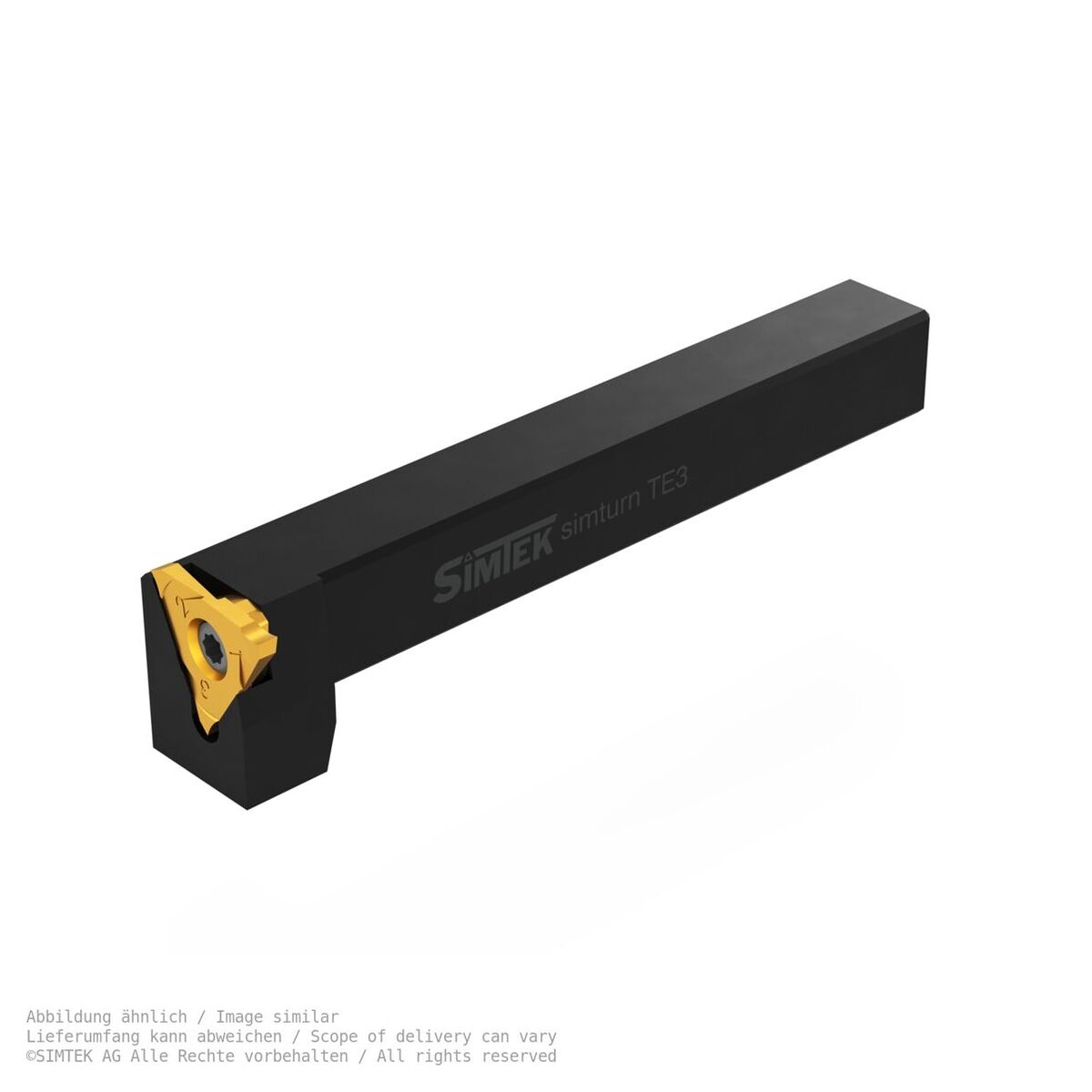

simturn E3 clamping holder, steel, external machining, offset, 90°, 25 x 25 mm, L=150 mm
Article no.: TE3.2525.90 R
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.2525.90 R | |
| EAN / GTIN | 4069769238587 | |
| Manufacturer number | AC7J | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:
SIMTEK simturn E3 clamp holder
Steel, external machining, offset
90°, 25 x 25 mm, L=150 mm

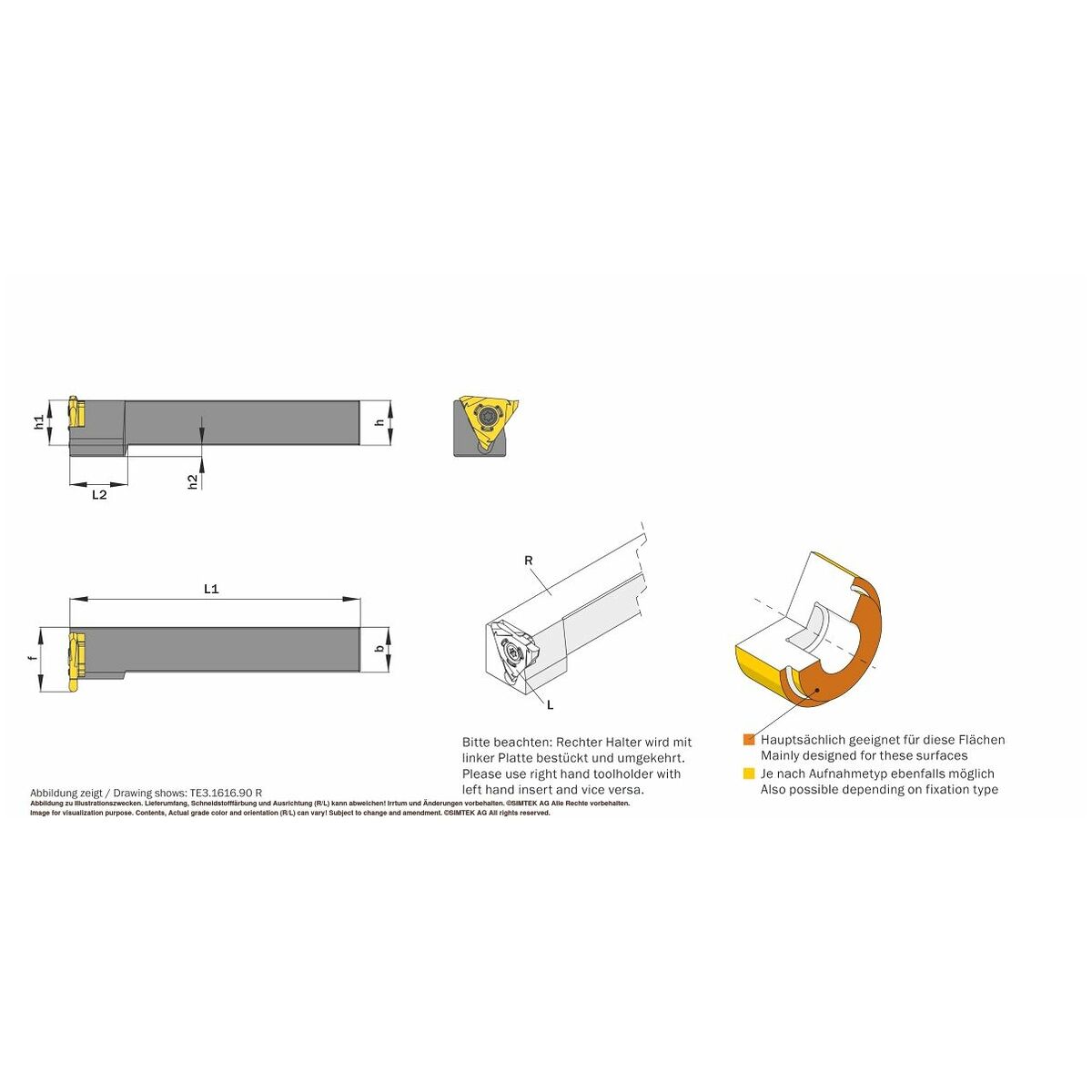

Technical parameters:
- Screwdriver = T20R
- Screw = ATKP
- h = 25.0 mm
- b = 25.0 mm
- f = 32.0 mm
- h1 = 25.0 mm (tolerance js14)
- h2 = 0.0 mm
- L1 = 150.0 mm
- L2 = 0.0 mm
