simturn E3 Clamp holder, steel, external machining, 20 x 20 mm, L=130 mm
Article no.: TE3.2020.13 L
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.2020.13 L | |
| EAN / GTIN | 4069769238204 | |
| Manufacturer number | APMH | |
| L-Number | L23830 2245 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

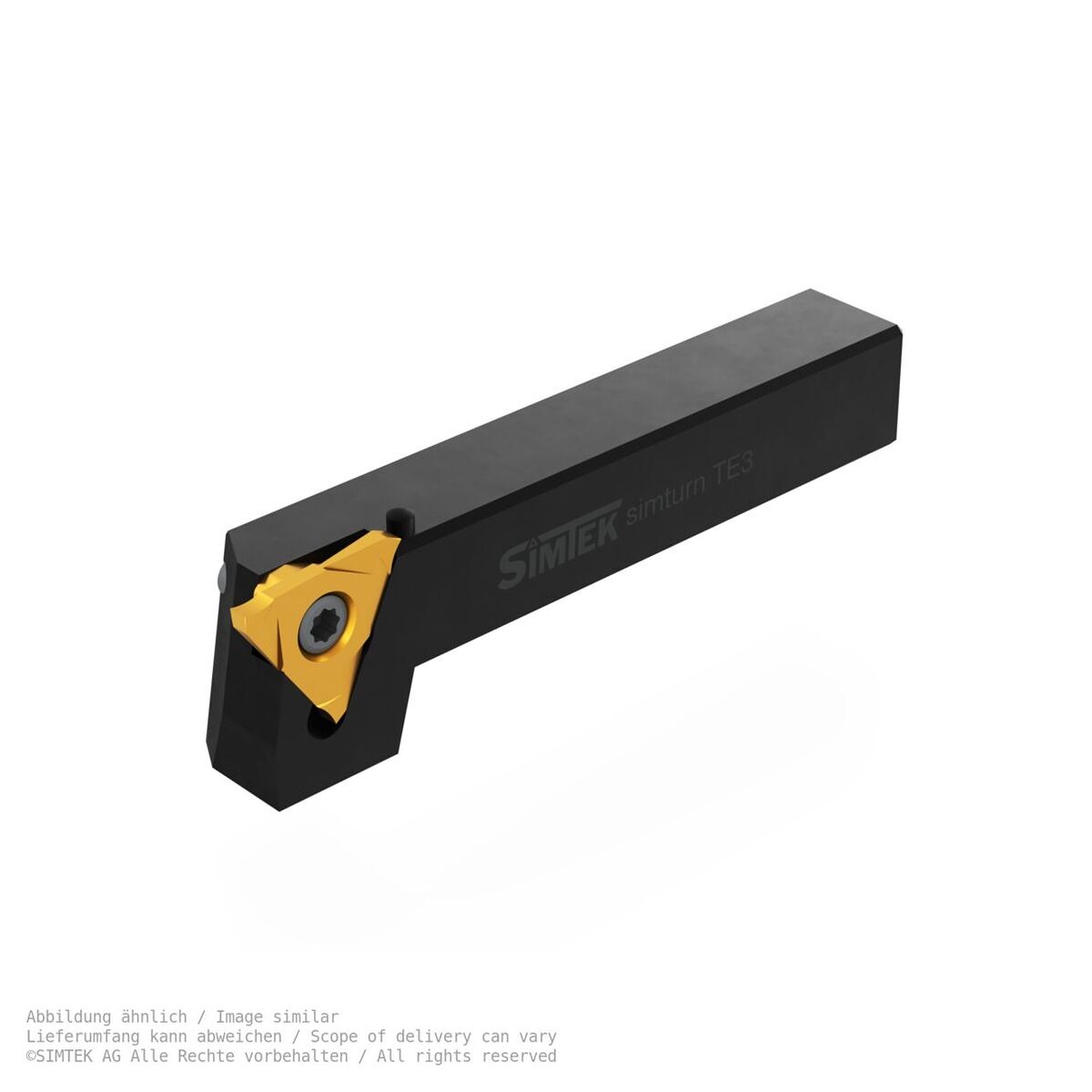

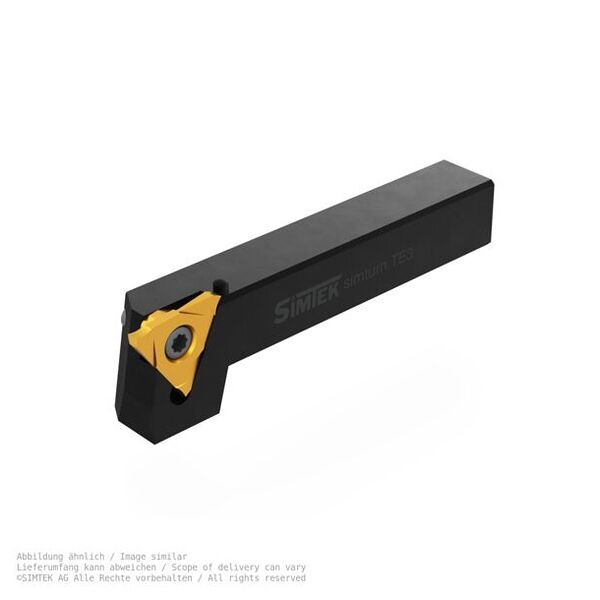

SIMTEK simturn E3 clamp holder
Steel, external machining
20 x 20 mm, L=130 mm

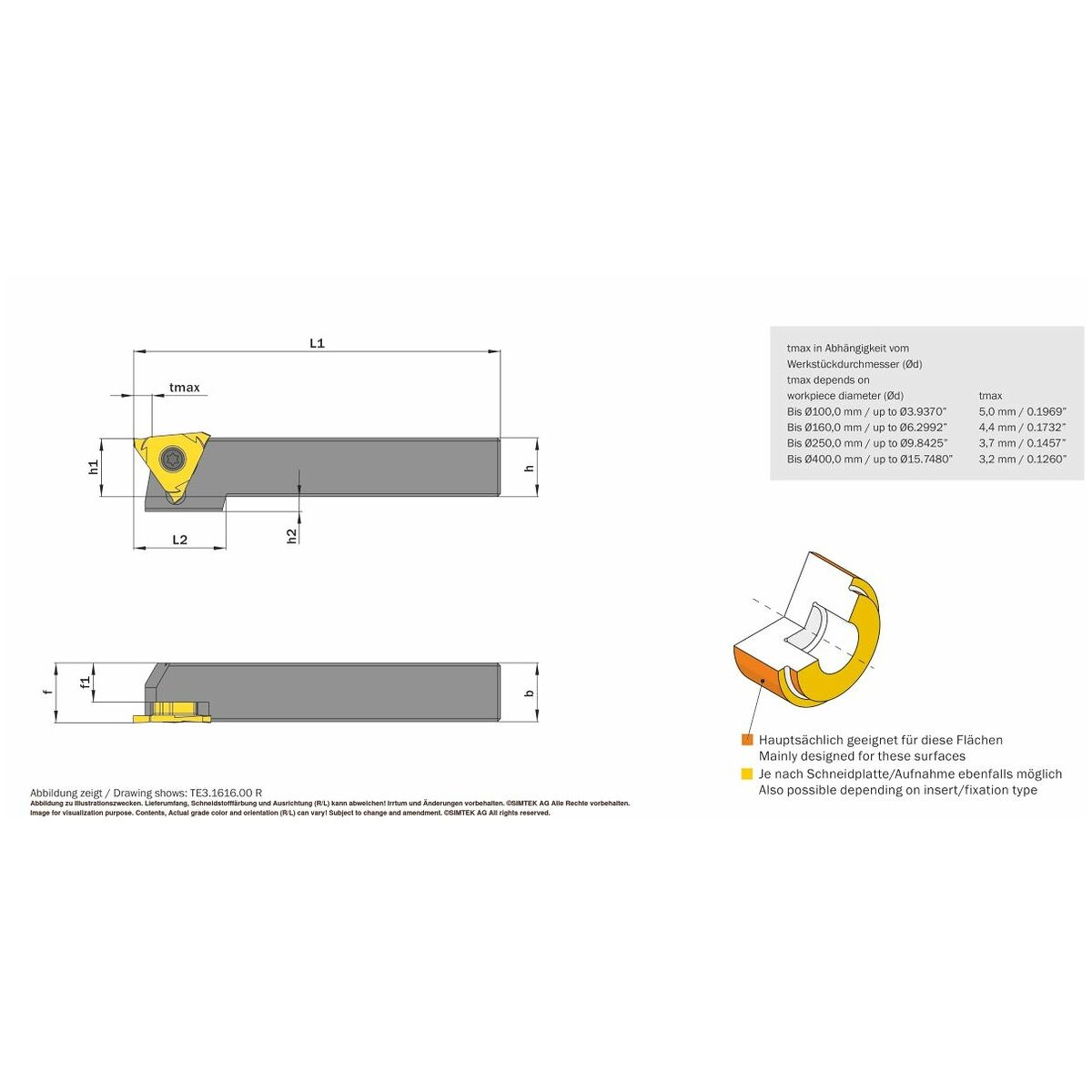

Technical parameters:
- Screwdriver = T20R
- b = 20.0 mm
- f = 20.30 mm
- f1 = 14.70 mm
- h1 = 20.0 mm (tolerance js14)
- h2 = 5.0 mm
- L1 = 130.0 mm
- L2 = 21.0 mm
- Screw = ATKP
- h = 20.0 mm
