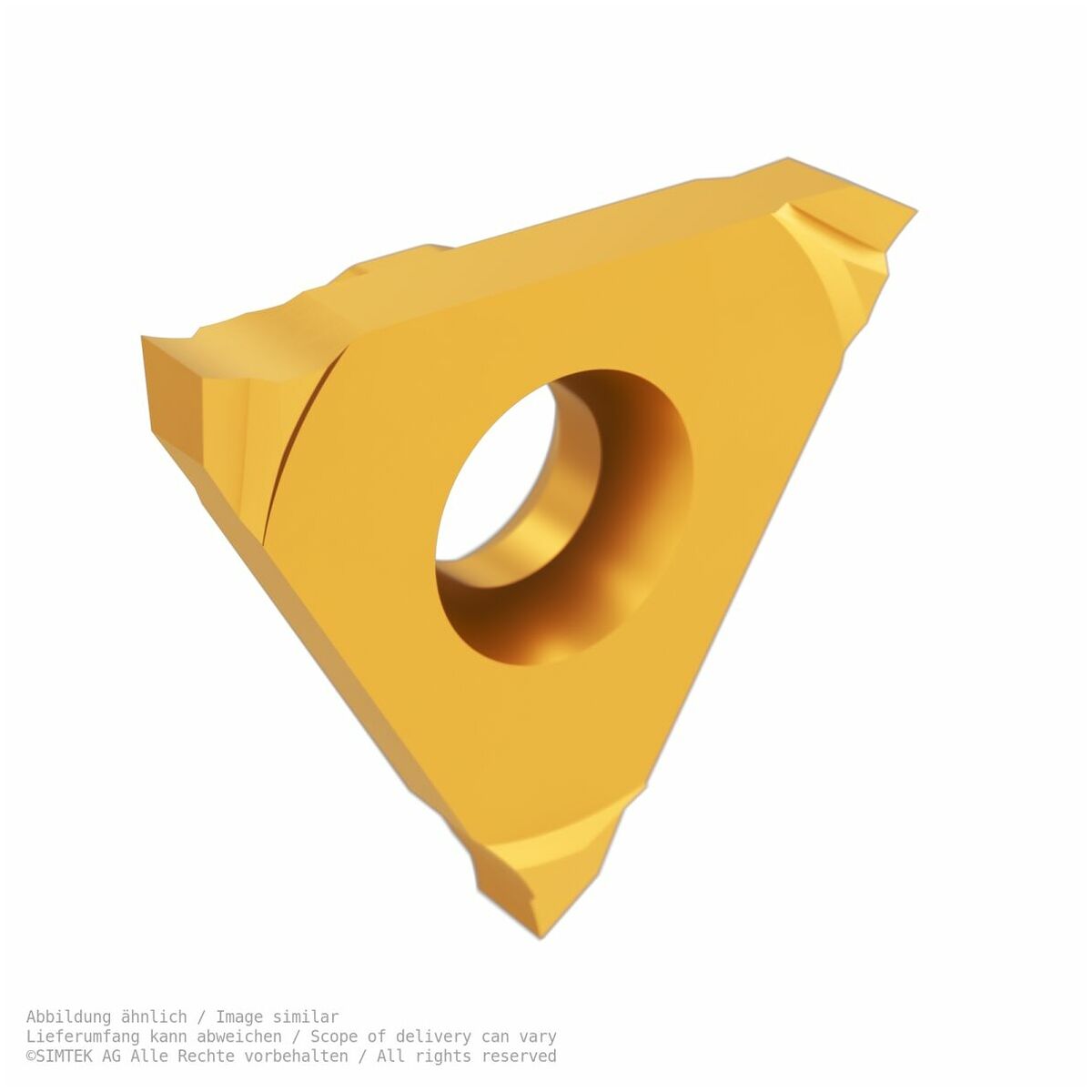

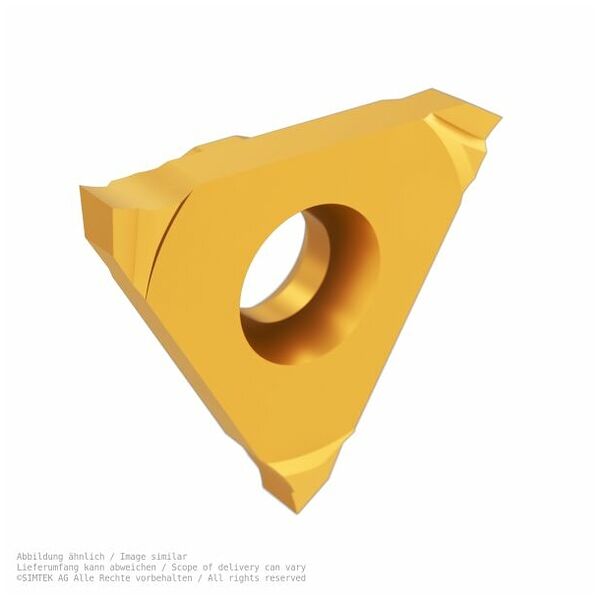

simturn E3 indexable insert, grooving, circlip grooves with chamfer, nominal width=1.1 mm, w=1.2 mm, tmax=0.4 mm, 2x45°
Article no.: TE3.1105.00 F L X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.1105.00 F L X800 | |
| EAN / GTIN | 4069769237016 | |
| Manufacturer number | AN28X800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:
SIMTEK simturn E3 indexable insert
Parting, snap ring grooves with chamfer
Nominal width = 1.1 mm, w = 1.2 mm, tmax = 0.4 mm, 2x45°

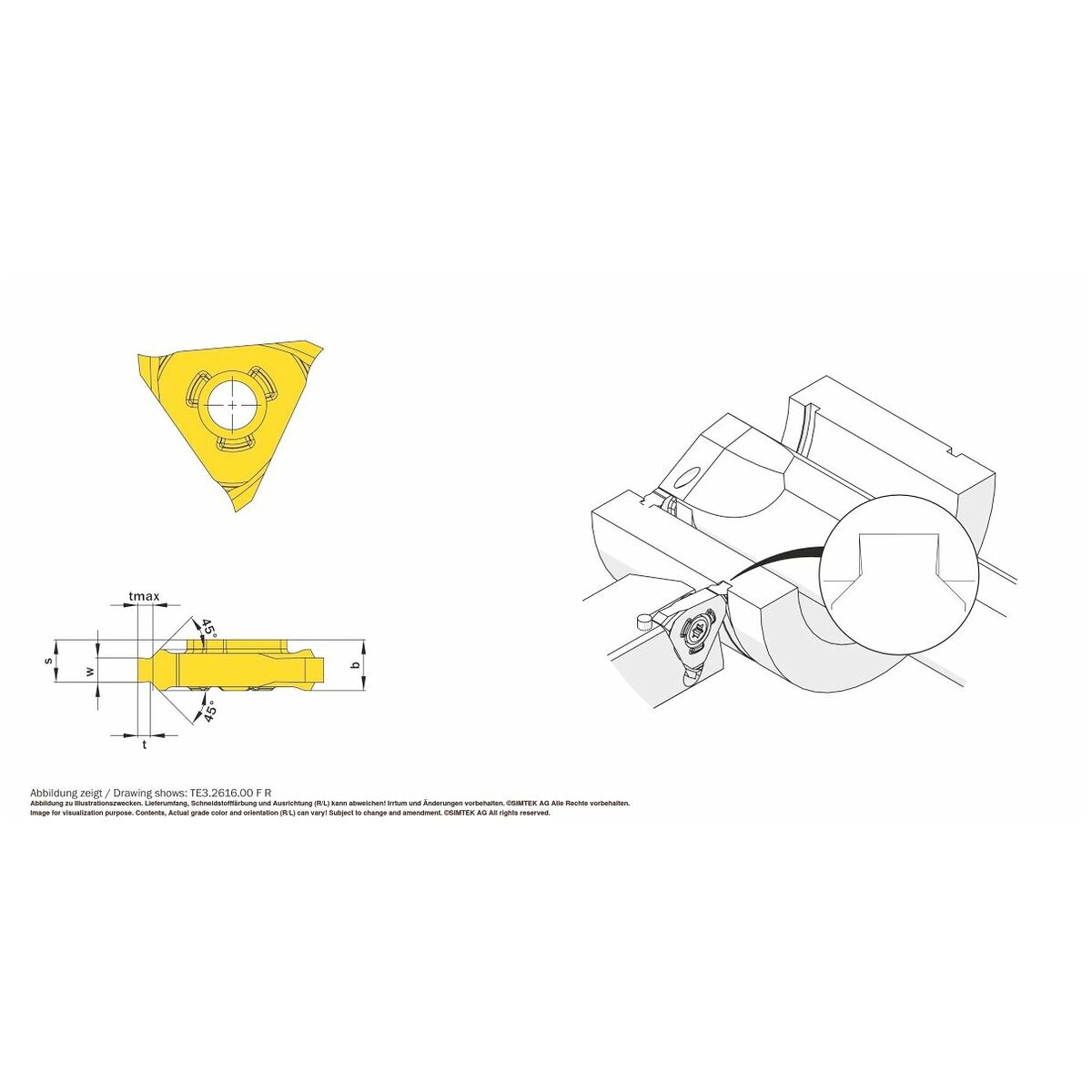

Technical parameters:
- tmax = 0.40 mm
- t = 0.36 mm
- S = 5.37 mm
- b = 5.8 mm
- w = 1.20 mm (tolerance +0.03)
- Nut width = 1.10 mm
