simturn E3 clamp holder, steel, internal machining, D=25.4 mm, L=150 mm
Article no.: TE3.1.000.C.00 R
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.1.000.C.00 R | |
| EAN / GTIN | 4069769236941 | |
| Manufacturer number | APT1 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

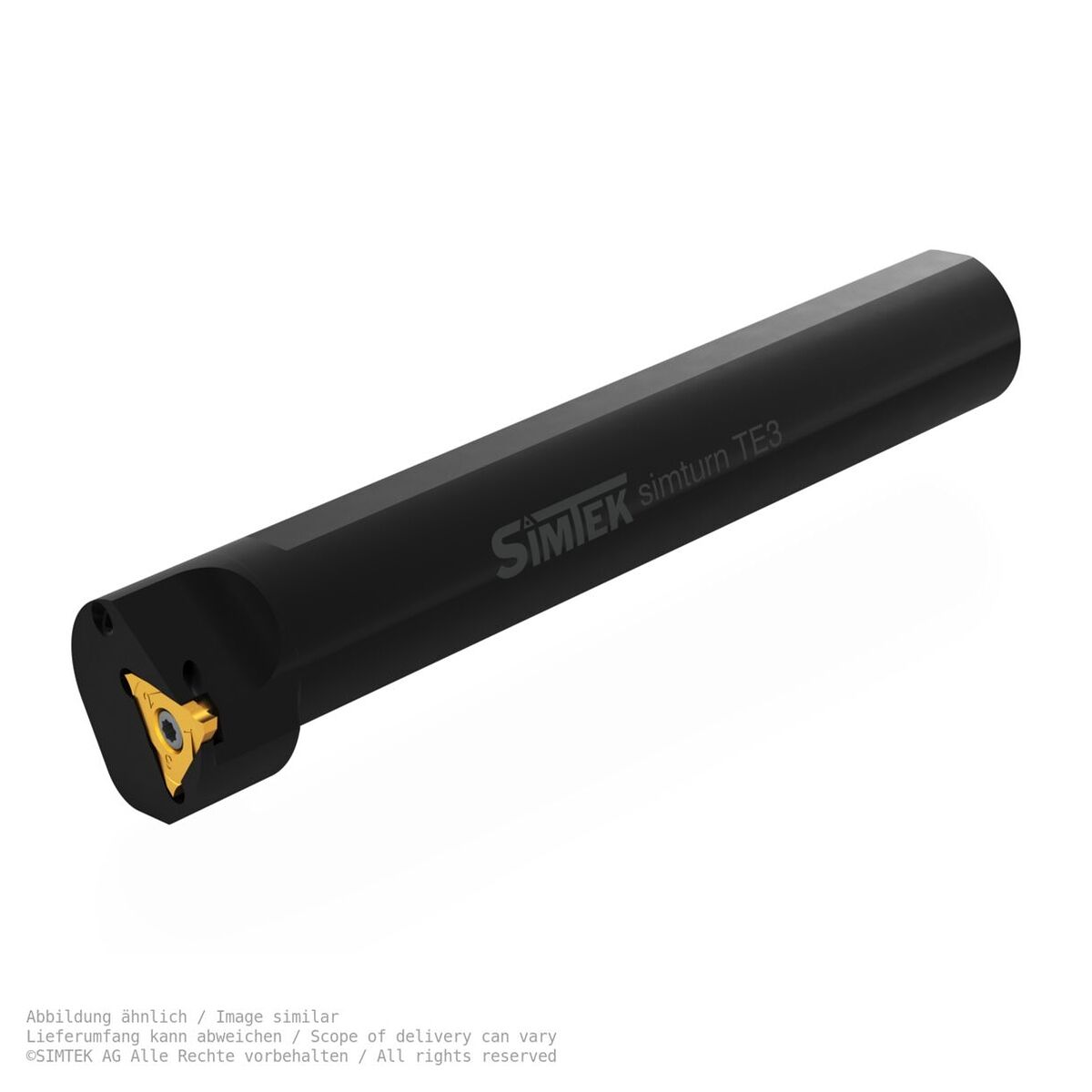

SIMTEK simturn E3 clamp holder
Steel, internal machining
D=25.4 mm, L=150 mm

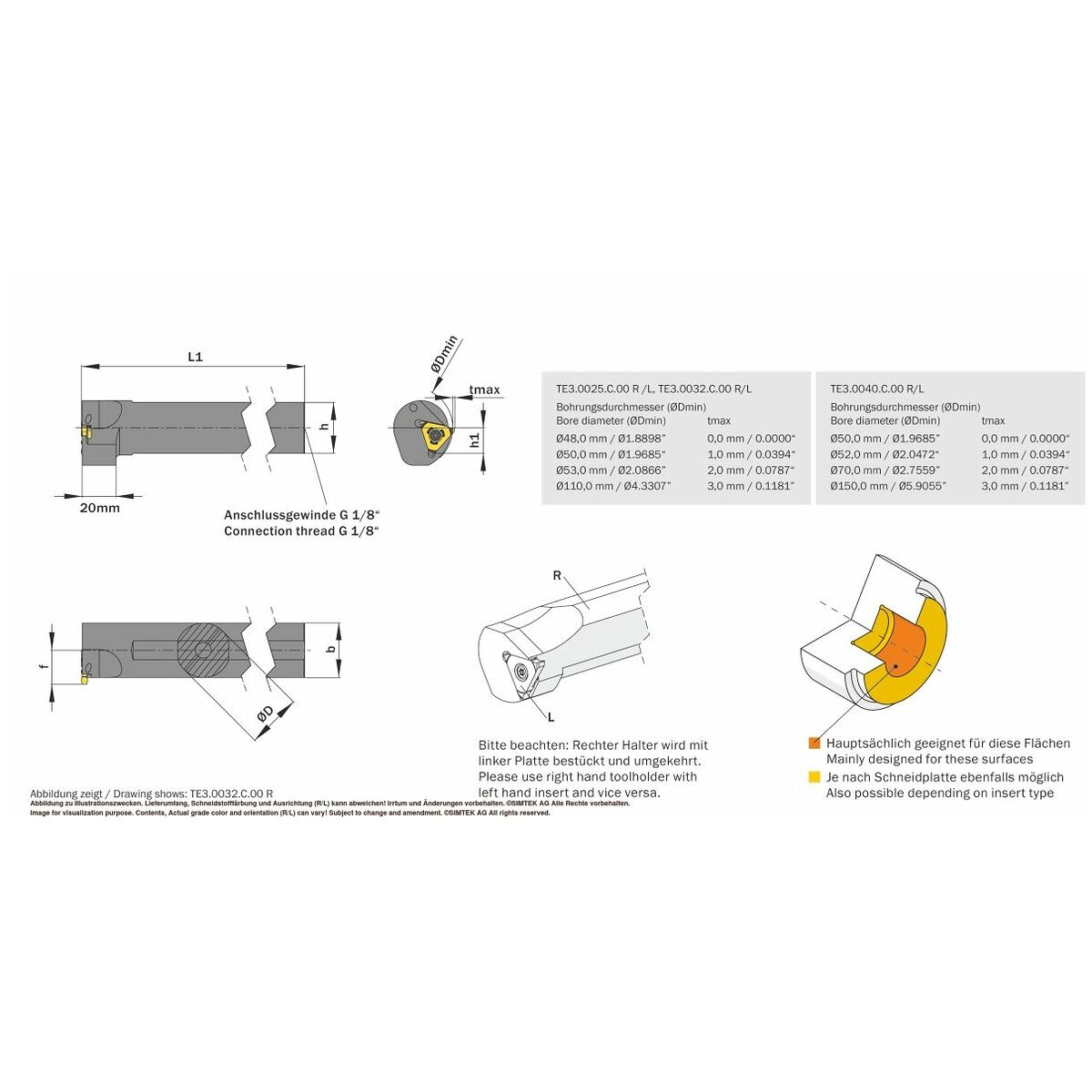

Technical parameters:
- L1 = 150.0 mm
- Screw = ATKP
- h1 = 12.7 mm (tolerance js14)
- h = 25.4 mm
- f = 16.50 mm
- b = 25.4 mm
- ØD = 25.40 mm (tolerance g6)
- Screwdriver = T20R
