simturn E3 indexable insert, grooving and profile turning, full radius, w=2.5 mm, R=1.25 mm, tmax=5 mm
Article no.: TE3.0250.12 V R X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.0250.12 V R X800 | |
| EAN / GTIN | 4069769233988 | |
| Manufacturer number | AAFEX800 | |
| L-Number | L23830 106401 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

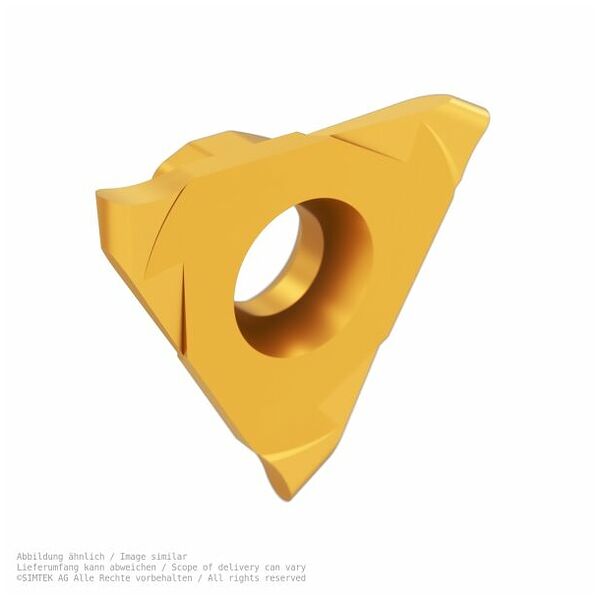

SIMTEK simturn E3 indexable insert
Grooving and profile turning, full radius
w=2.5 mm, R=1.25 mm, tmax=5 mm

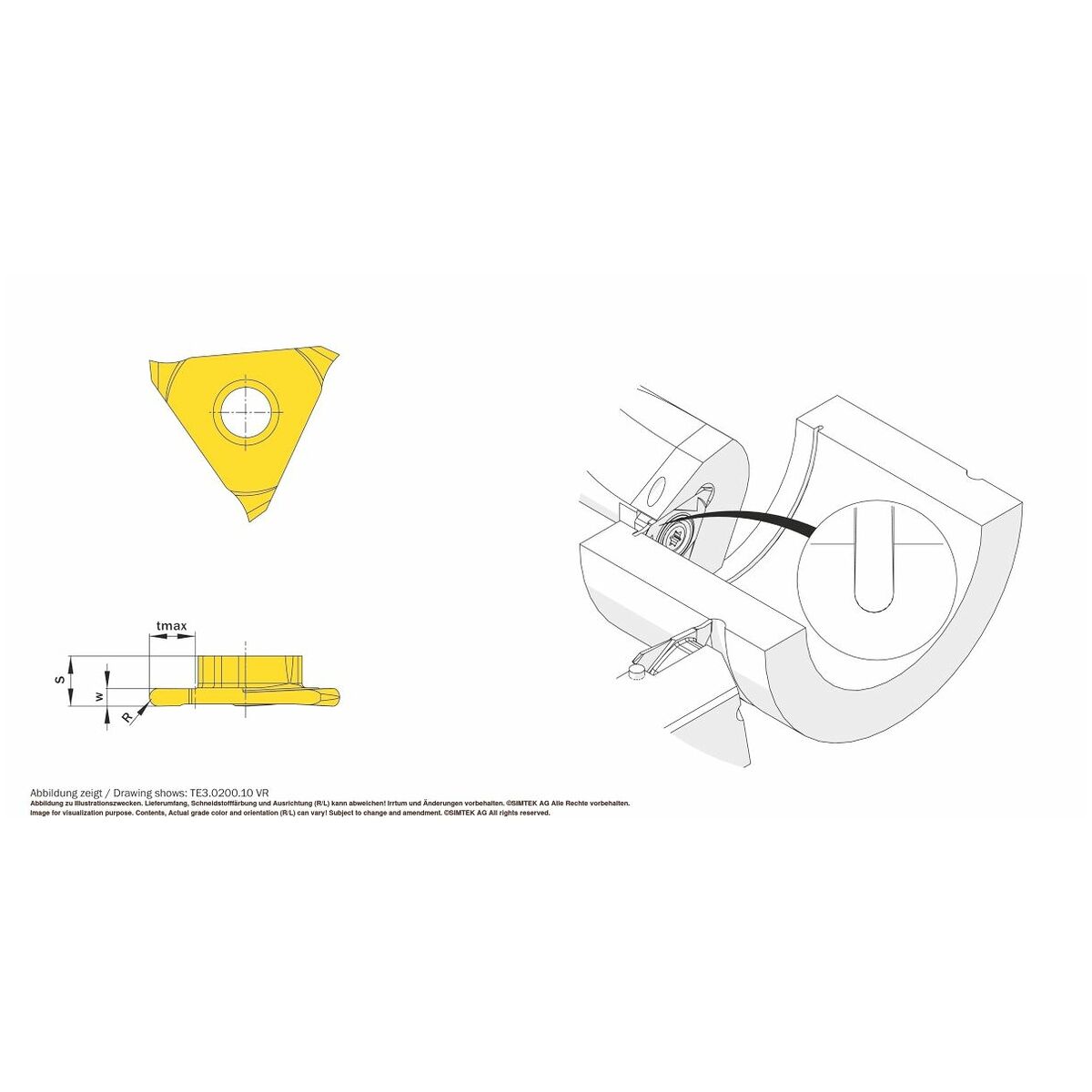

Technical parameters:
- w = 2.50 mm (tolerance +0.04)
- R = 1.25 mm
- S = 5.60 mm
- tmax = 5.0 mm
