simturn E3 indexable insert, grooving and profile turning, double chip groove, w=2.5 mm, R=0.2 mm, tmax=5 mm
Article no.: TE3.0250.02 NW L X600
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.0250.02 NW L X600 | |
| EAN / GTIN | 4069769233476 | |
| Manufacturer number | AZ43X600 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

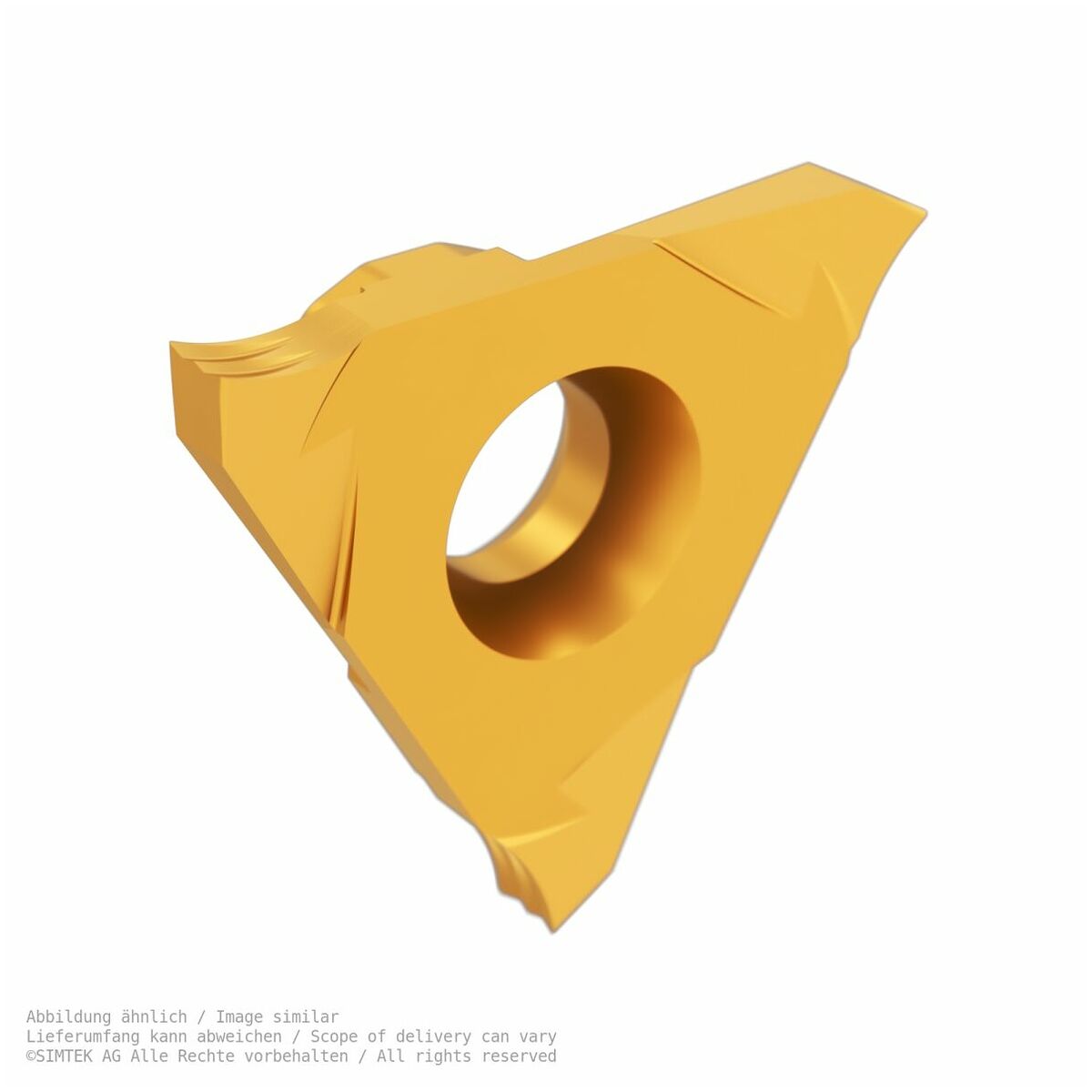

SIMTEK simturn E3 indexable insert
Grooving and profile turning, double chip flute
w=2.5 mm, R=0.2 mm, tmax=5 mm

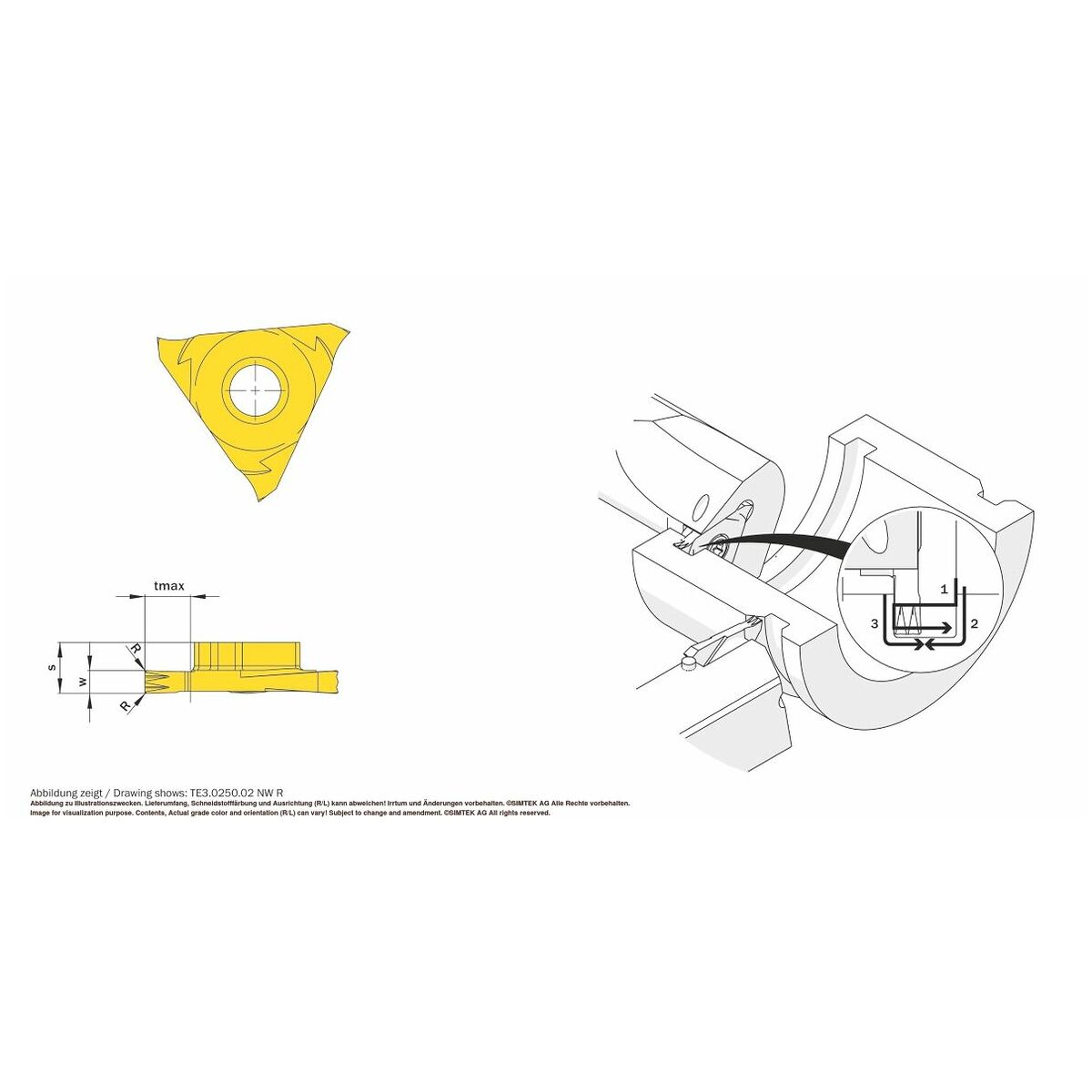

Technical parameters:
- w = 2.5 mm (tolerance -0.05)
- R = 0.2 mm
- S = 5.6 mm
- tmax = 5.0 mm
