simmill PM milling cutter insert, metric ISO thread milling, partial profile, P=0.5-1 mm, from thread size M10
Article no.: PM8.MT.0510.01 M X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | PM8.MT.0510.01 M X800 | |
| EAN / GTIN | 4069769215830 | |
| Manufacturer number | A641X800 | |
| L-Number | L23830 101489 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:
SIMTEK simmill PM milling insert
Metric ISO thread milling, partial profile
P=0.5-1 mm, from thread size M10

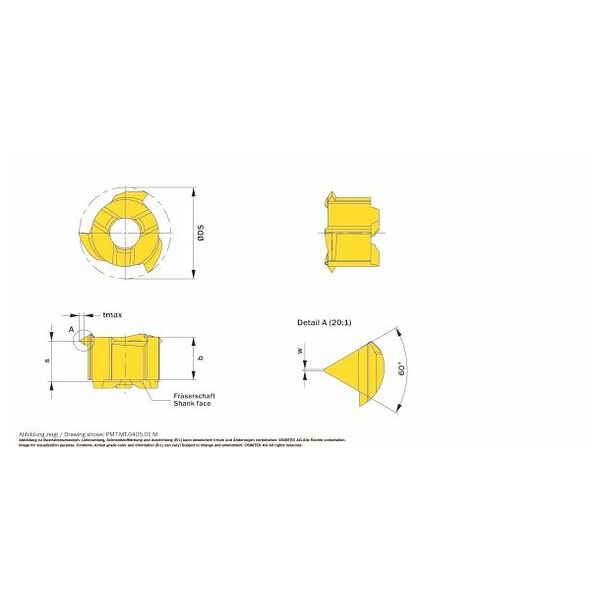

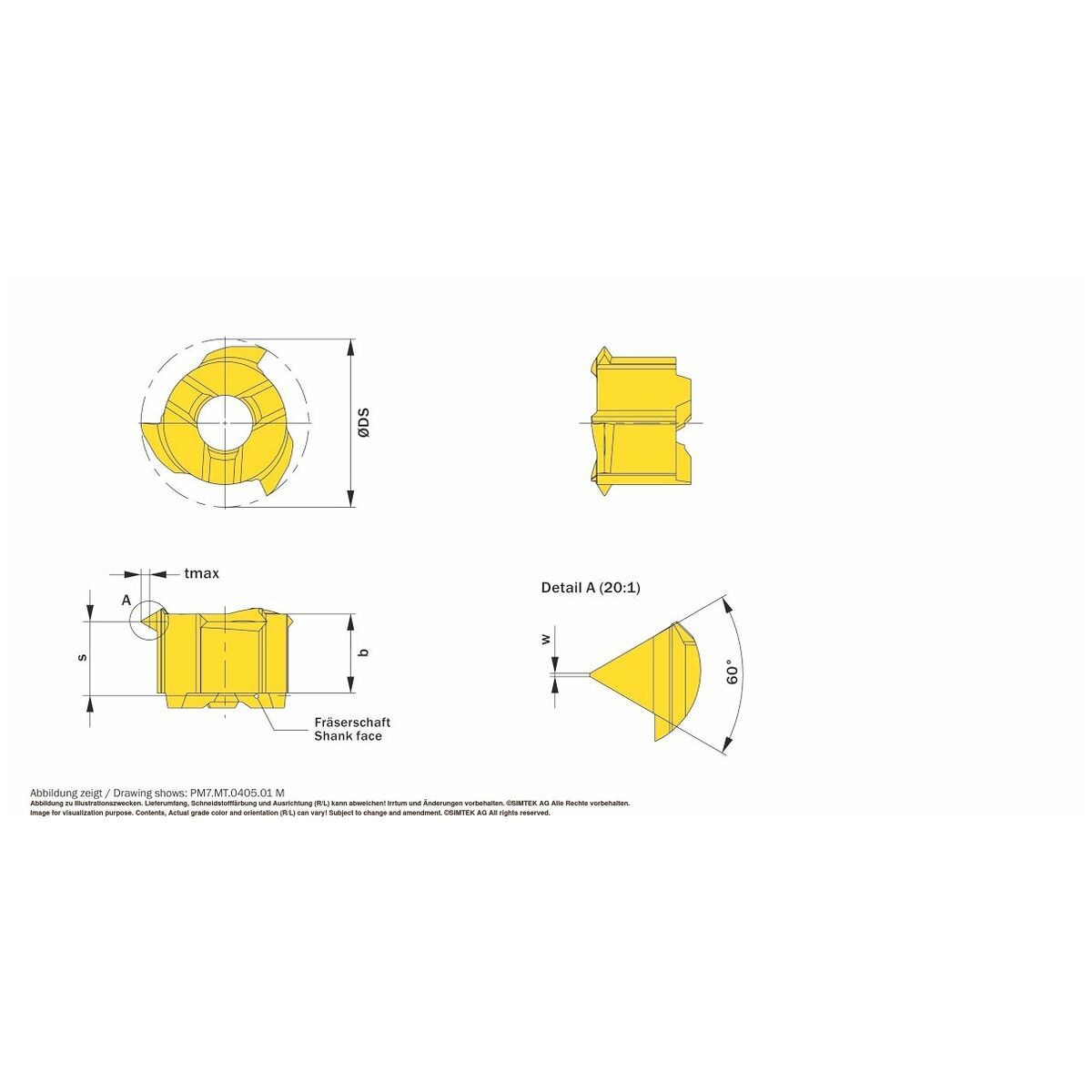

Technical parameters:
- w = 0.04 mm (tolerance +0.02)
- ZEFP = 3
- From thread size = M10
- tmax = 0.68 mm
- S = 2.95 mm
- b = 3.15 mm
- Inclination (up to) = 1.0 mm
- Pitch (from) = 0.50 mm
- Alternatively, from nominal diameter = 9.50 mm
- ØDS = 7.70 mm
