simturn AX cutting insert, metric ISO thread, part profile, internal, Dmin=3.24 mm, P=0.7 mm, L2=10.2 mm
Article no.: A04.M070.01.10.32 ML X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | A04.M070.01.10.32 ML X800 | |
| EAN / GTIN | 4069769035032 | |
| Manufacturer number | AAKYX800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

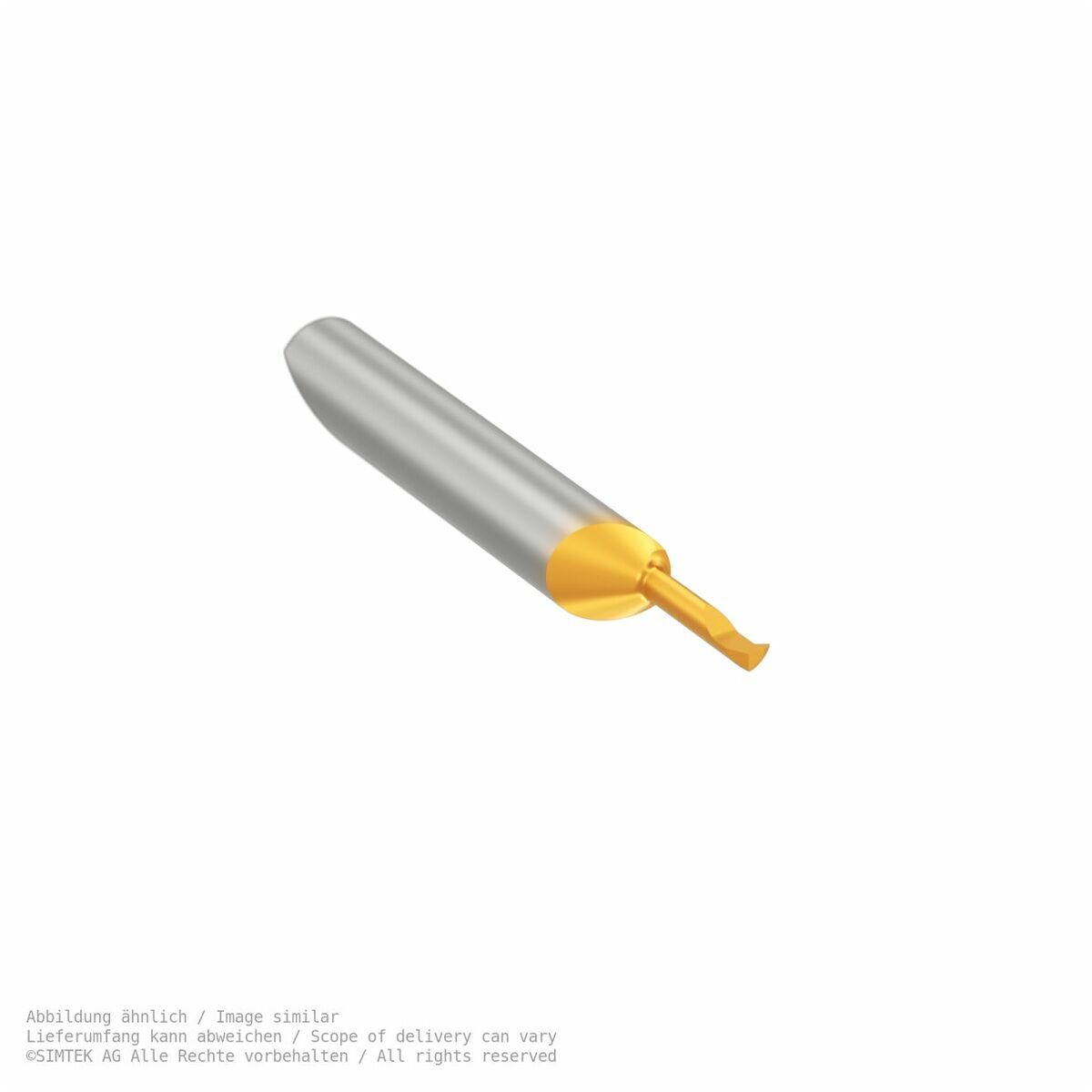

SIMTEK simturn AX cutting insert
Metric ISO thread, partial profile, internal
Dmin=3.24 mm, P=0.7 mm, L2=10.2 mm

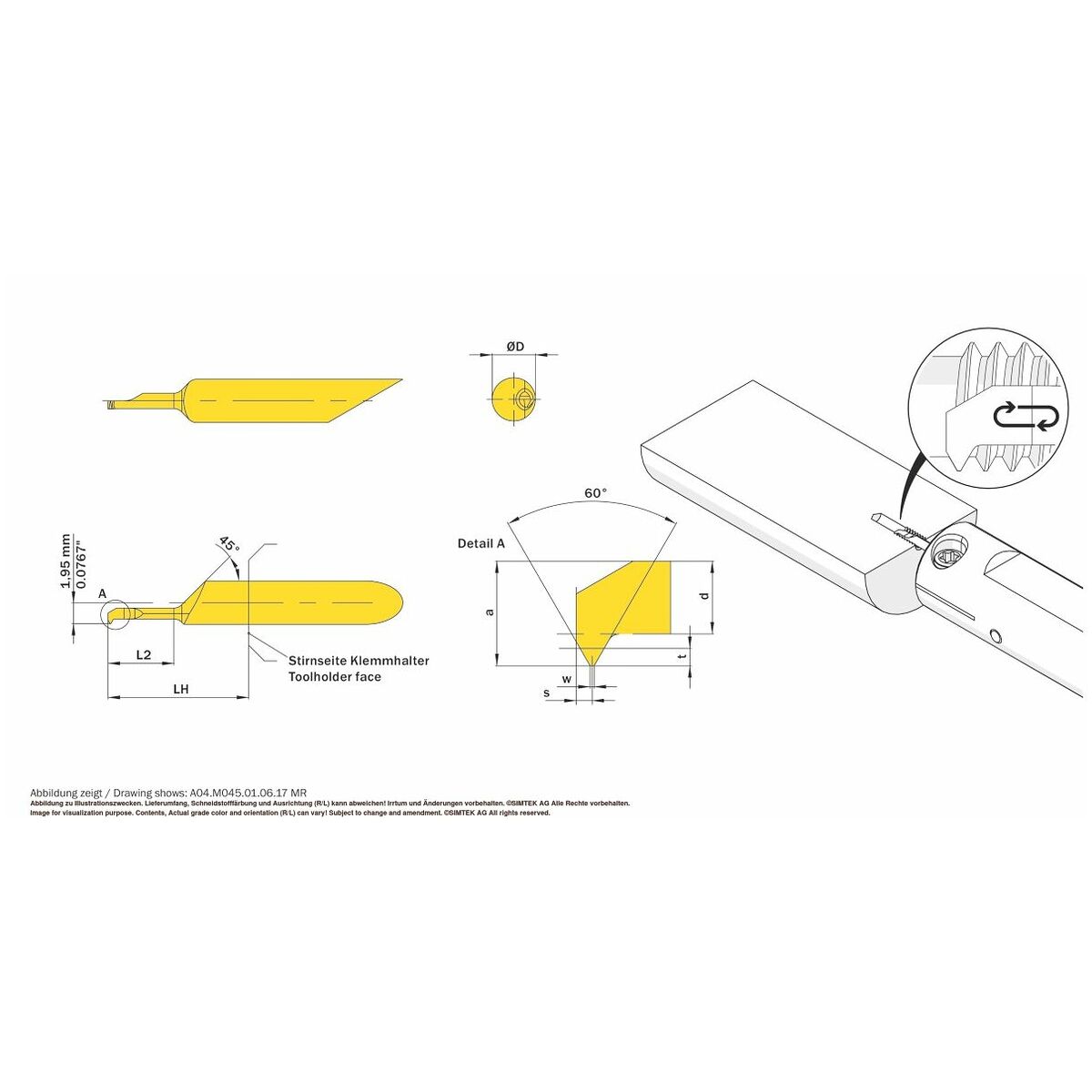

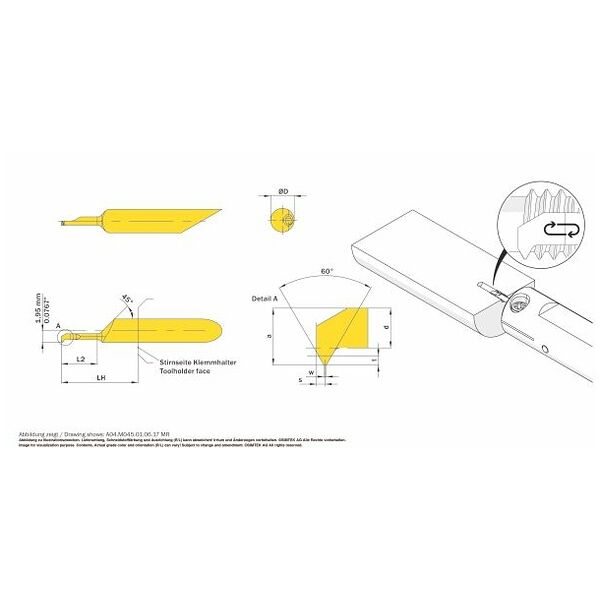

Technical parameters:
- ØDmin (min. bore) = 3.24 mm
- w = 0.09 mm
- t = 0.38 mm
- S = 0.32 mm
- LH = 13.0 mm
- d = 2.37 mm
- ØD = 4.0 mm
- Standard thread = M4
- L2 = 10.2 mm
- Pitch (from) = 0.70 mm
- a = 2.95 mm
