Compressed air reducer
Article no.: 9000-080
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Hose |
Identification & Classification
| Article number | 9000-080 | |
| EAN / GTIN | 4000896214709 | |
| Manufacturer number | 9000-080 | |
| L-Number | L60140 4321 | |
| Manufacturer/responsible person | HAZET-WERK Hermann Zerver GmbH & Co. KG, Güldenwerther Bahnhofsstraße 25-29, 42857 REMSCHEID, Germany, www.hazet.com |
Description
Description:
Application:
Reduction of working pressure to protect high-quality pneumatic equipment
Reduction of working pressure to protect high-quality pneumatic equipment

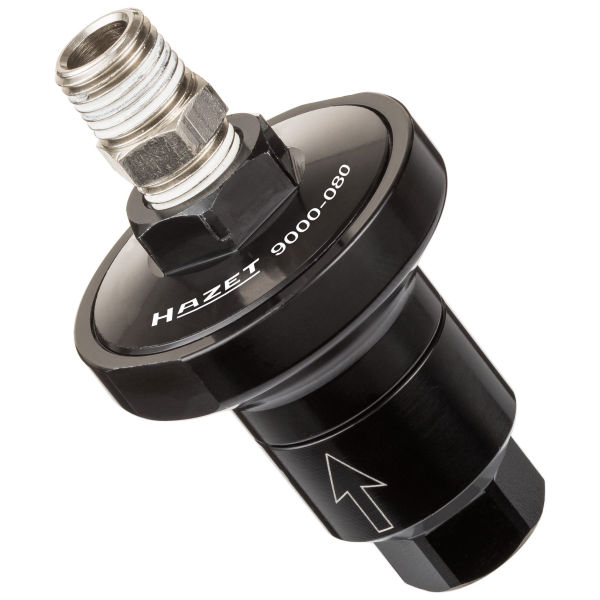

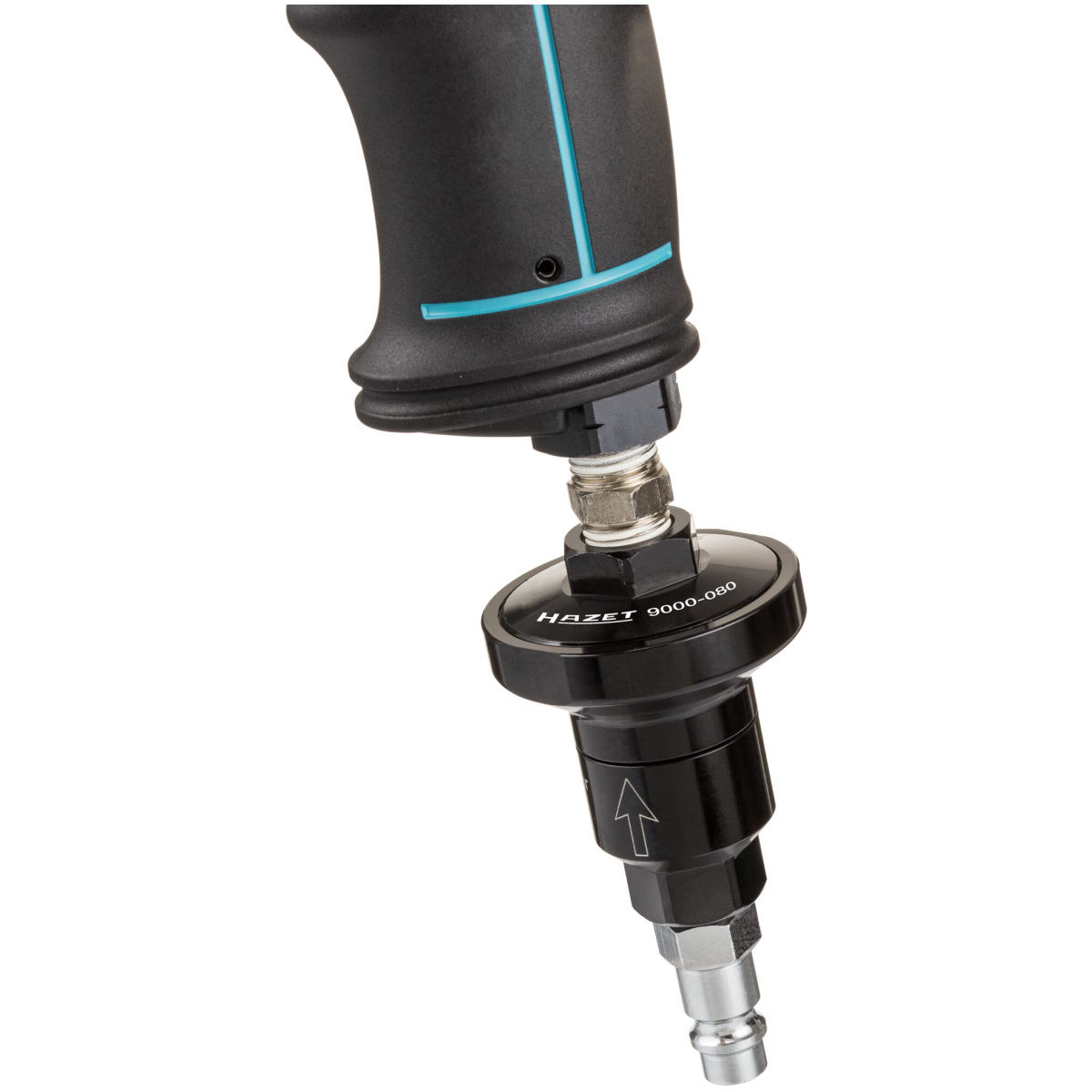

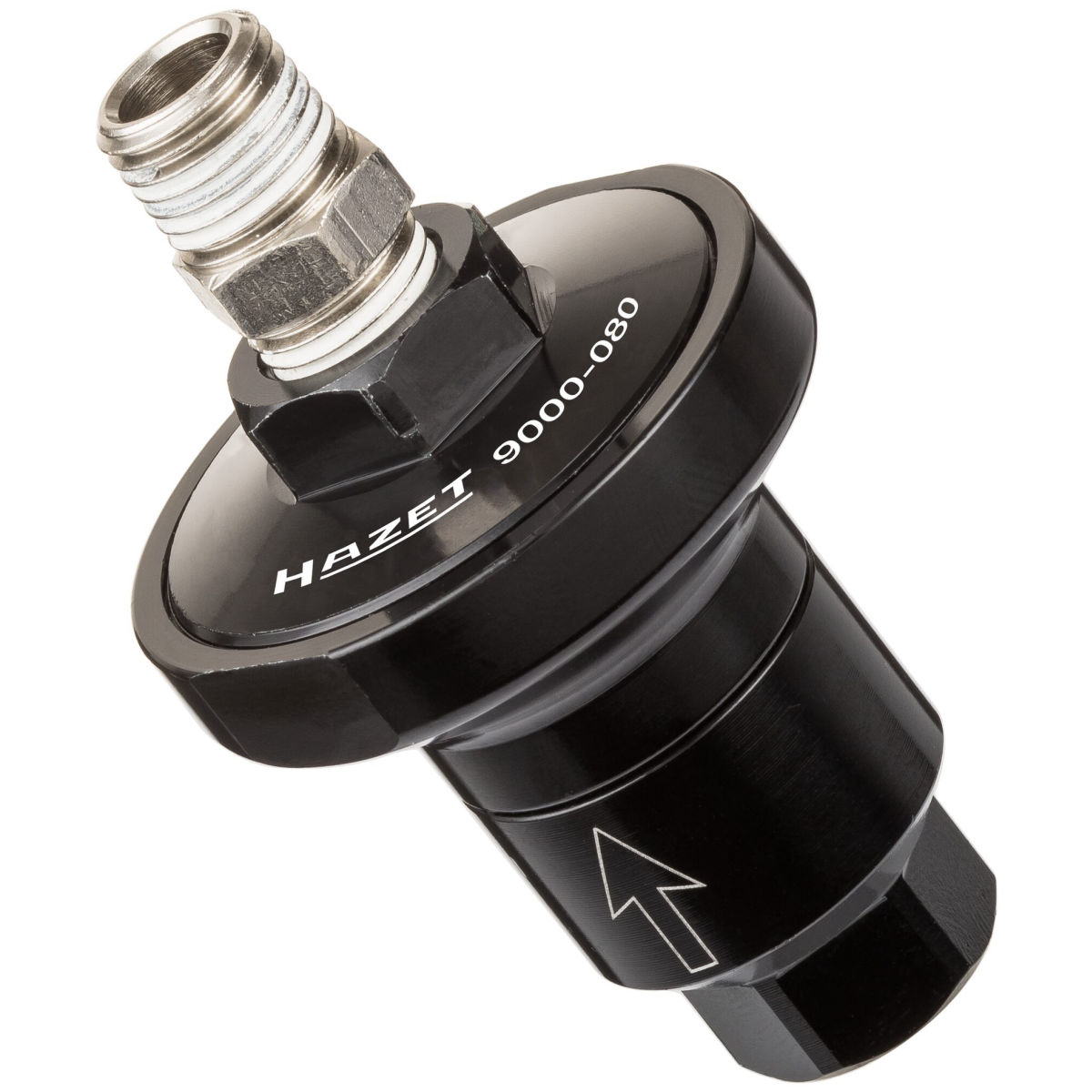

- Inline pressure regulator for integration in the compressed air line or direct connection to motorised pneumatic equipment
- Max. inlet pressure: 10 bar
- Outlet pressure 6.3 bar
- Max. air flow: 1300 l/min
- Weight including air connection nipple: 140 g

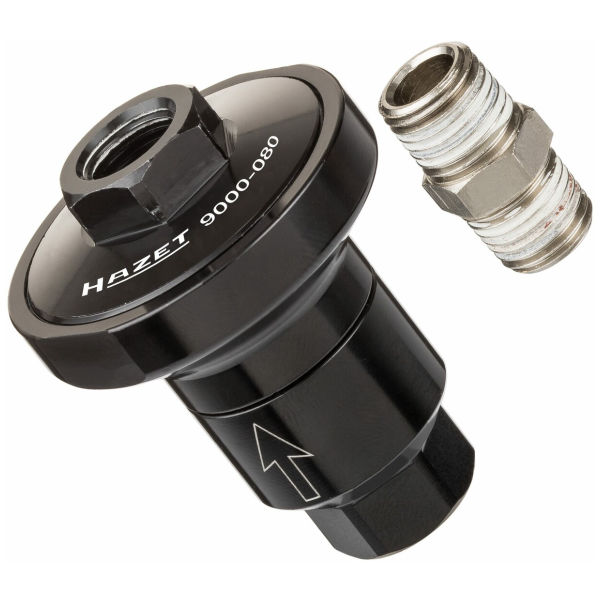

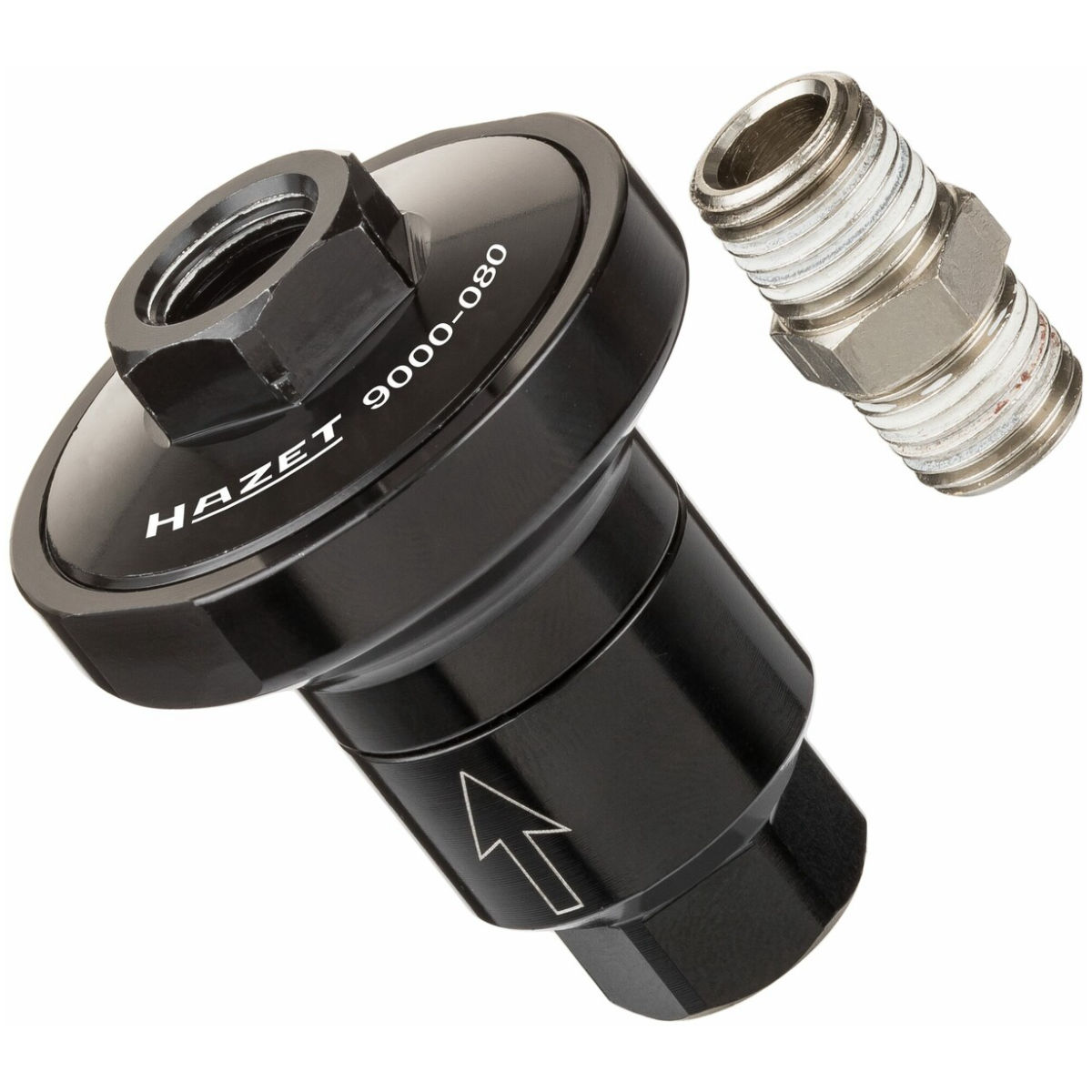

- Including:
- Adapter from outside thread 12.91 mm (1⁄4″) to outside thread 12.91 mm (1⁄4″) for connecting to the device
- Air connection nipple 7.2 Type 1 for connection to compressed air coupling
- For safe operation on compressed air lines to 10 bar
- Air connection inlet: Inside thread 12.91 mm (1/4″)
- Air connection outlet: Inside thread 12.91 mm (1/4″)
- Net weight: 0.1 kg
