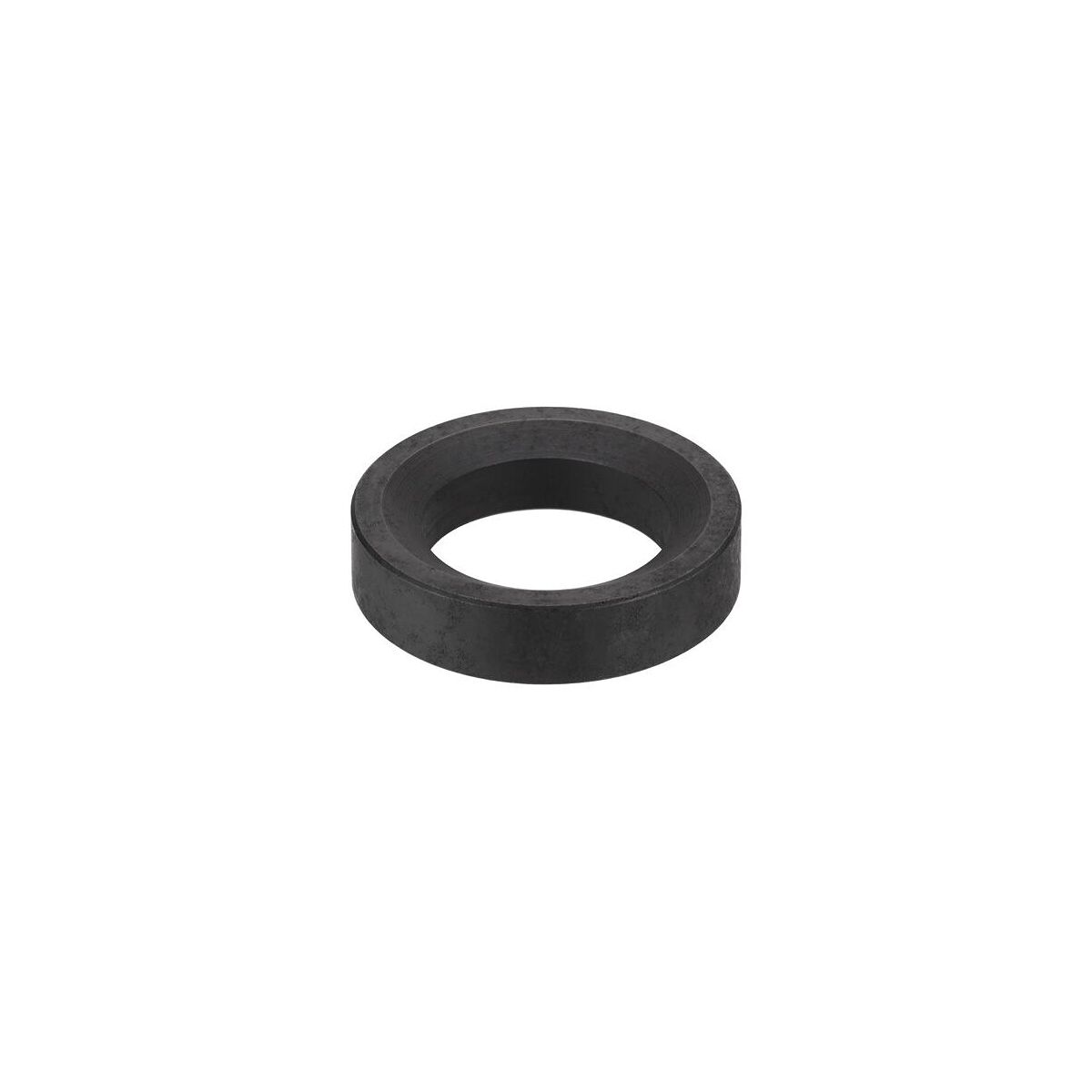

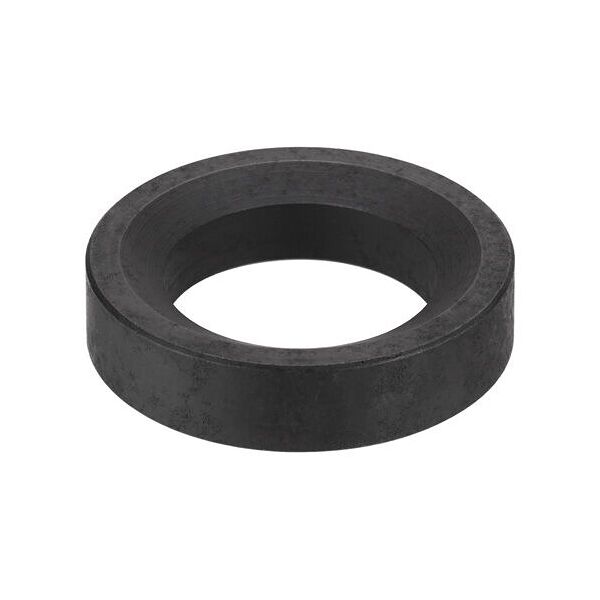

Conical sockets, tempered
Article no.: 87197
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 87197 | |
| EAN / GTIN | 4020772087197 | |
| Manufacturer number | 87197 | |
| L-Number | L30120 304 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Tapered seat, hardened and tempered

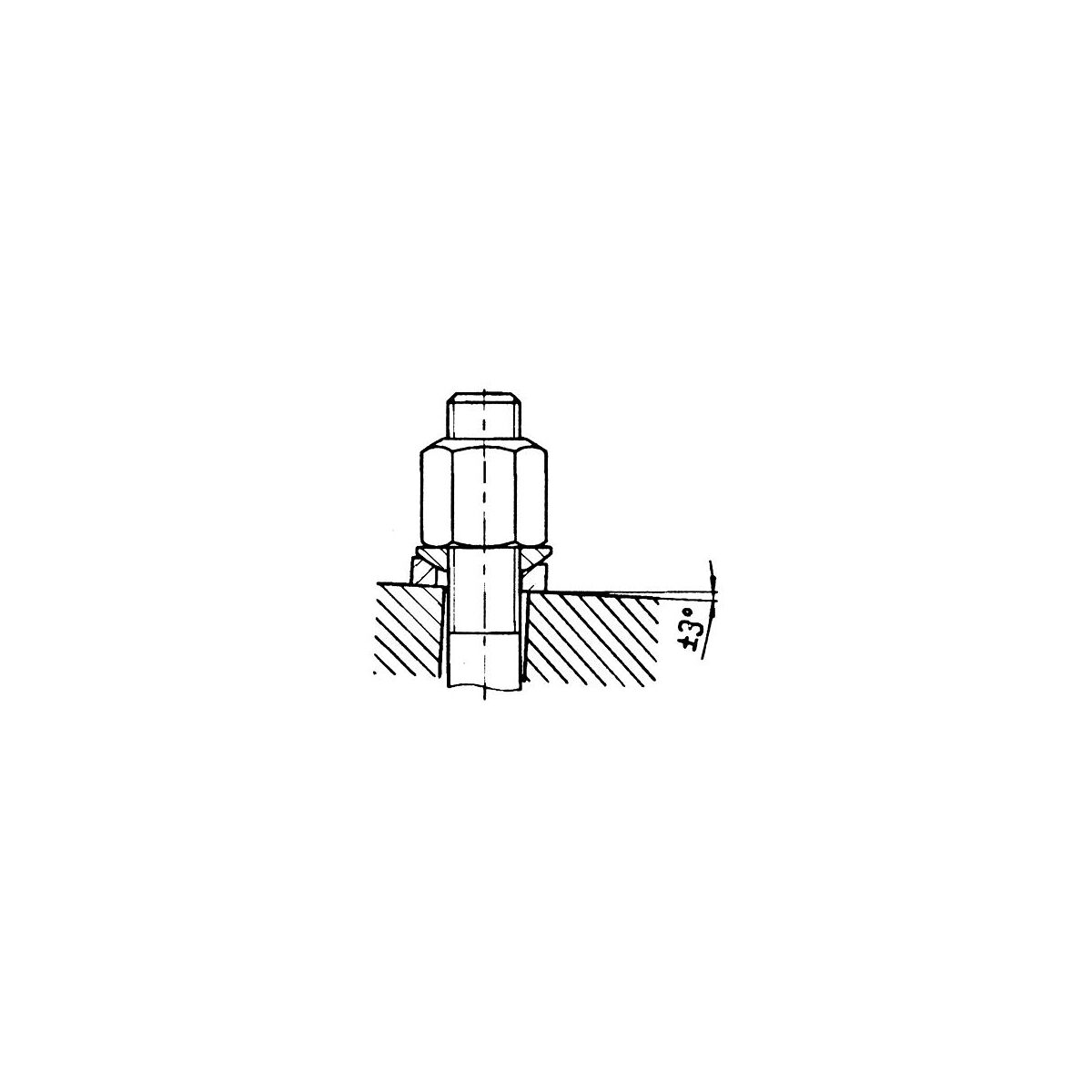

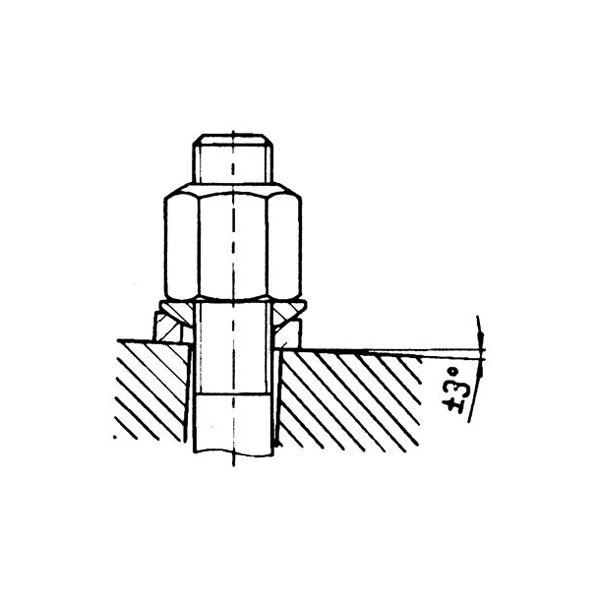

Made of C45, tempered. Suitable for screw strength according to 12.9. Use only for flat closed ring surfaces (not permitted for slotted holes, we recommend DIN 6319G for this purpose).
Made of C45, tempered. Suitable for screw strength according to 12.9. Use only for flat closed ring surfaces (not permitted for slotted holes, we recommend DIN 6319G for this purpose).
Feature:

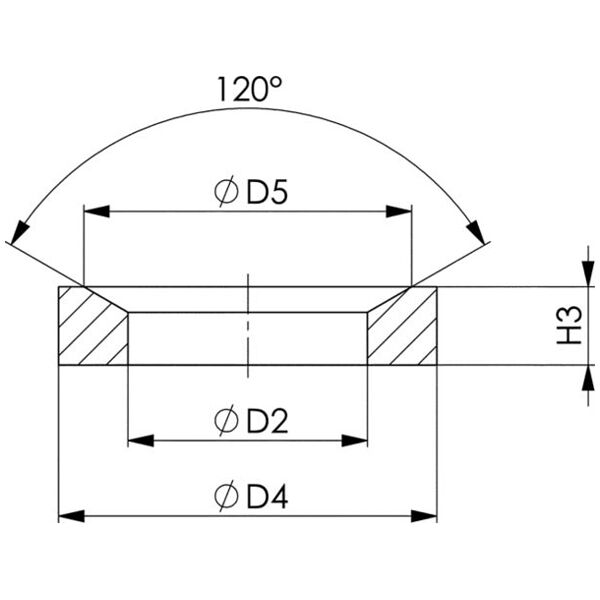

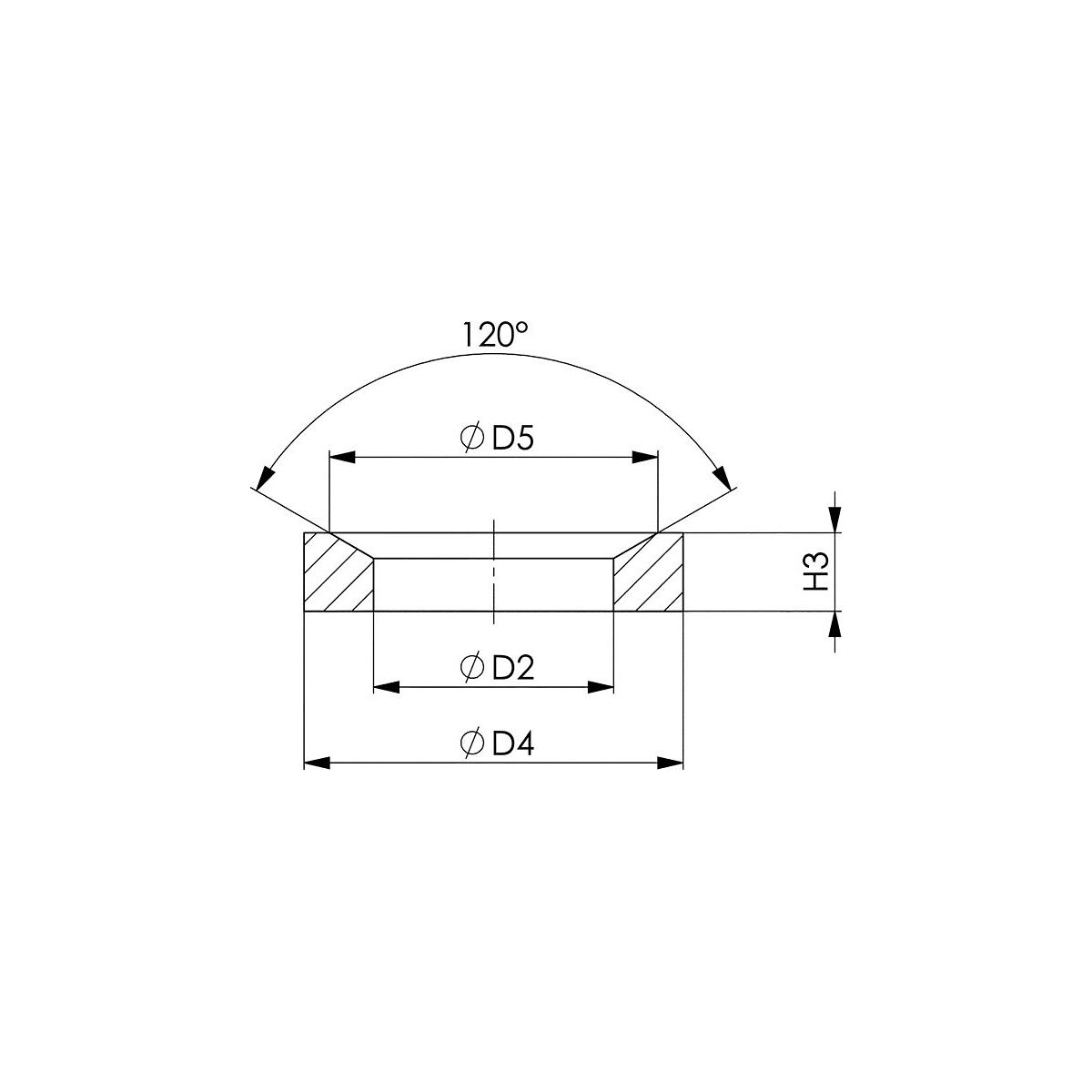

- Size: M16
- D2: 19.0
- D4: 30
- D5: 26
- H3: 6.2
- F max.: 73 kN
- VE: 50
- Weight: 19 g
