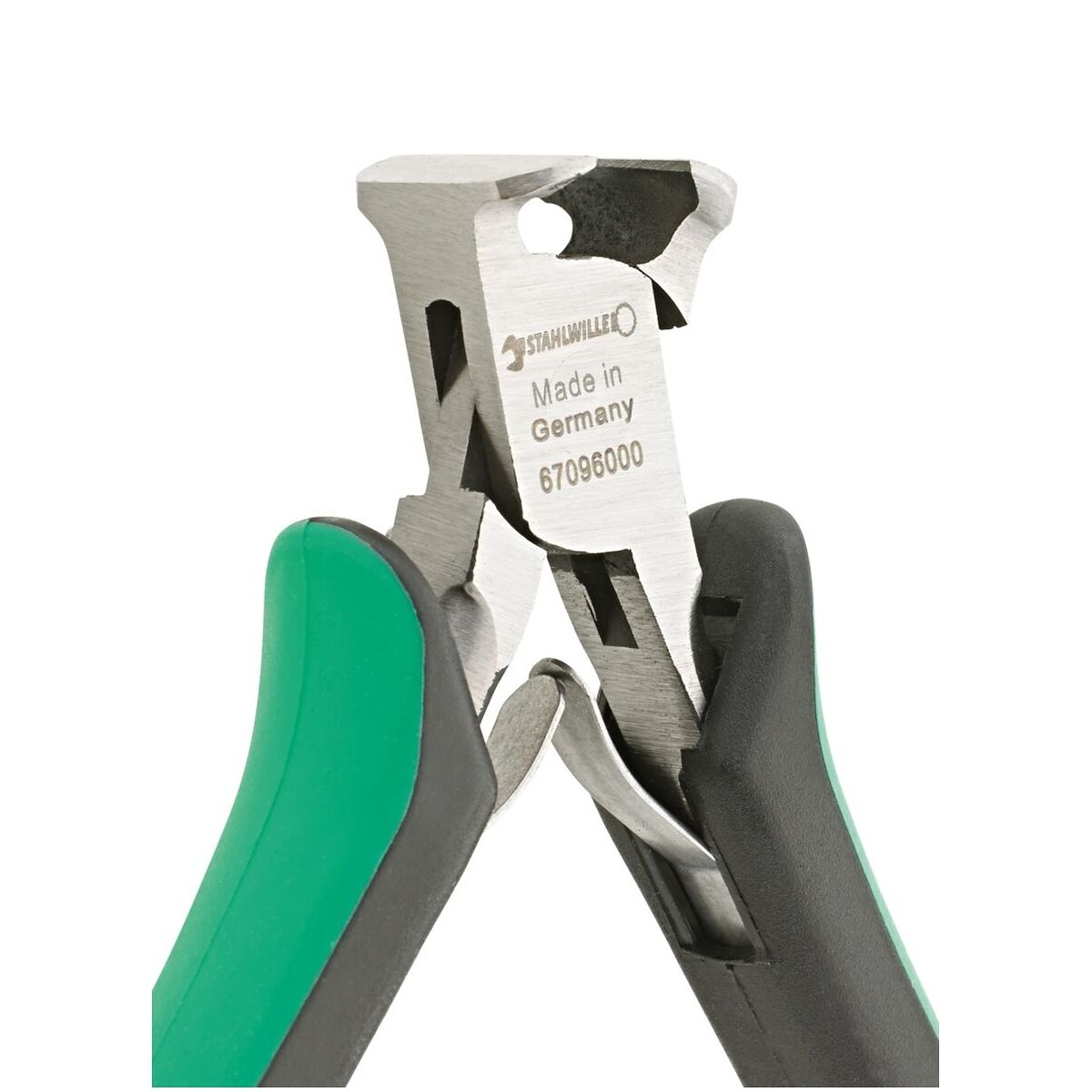

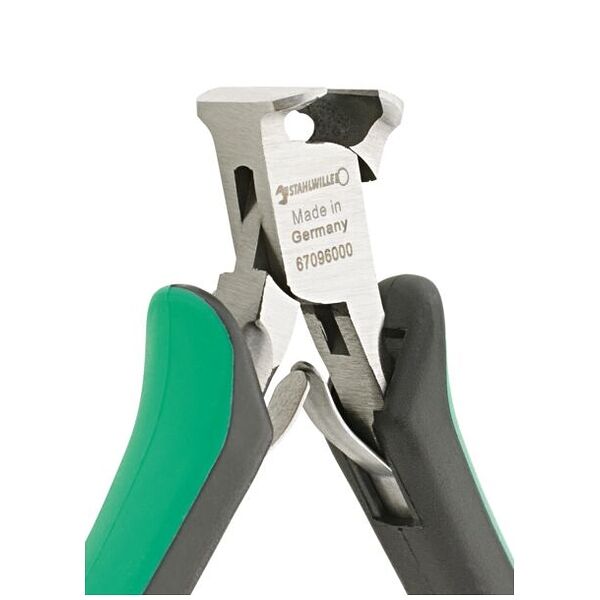

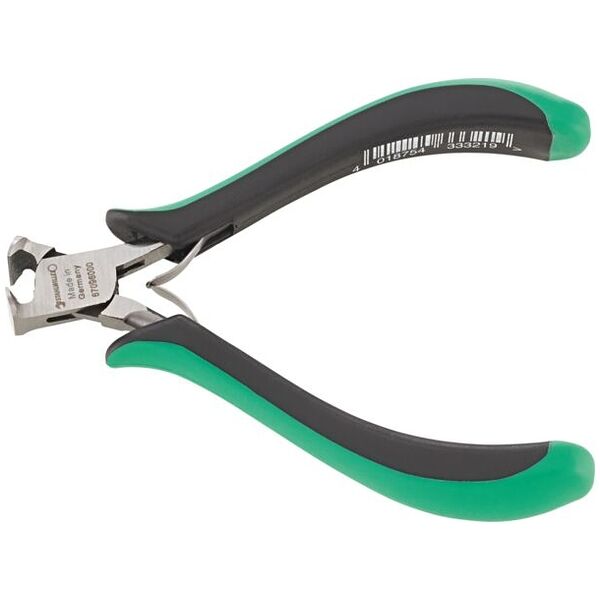

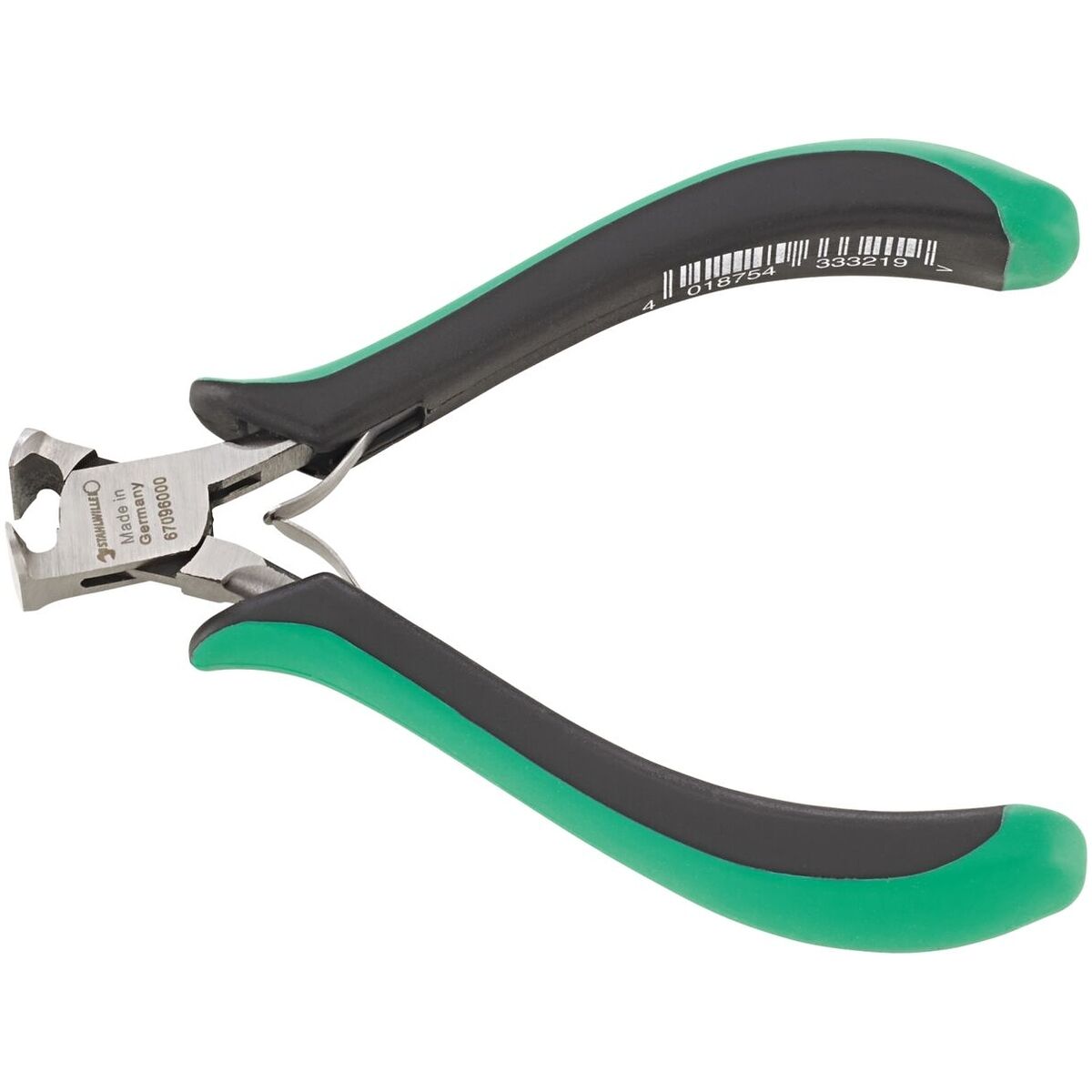

Electronics end cutter L.120mm head polished
Article no.: 67096000
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 67096000 | |
| EAN / GTIN | 4018754333219 | |
| Manufacturer number | 67096000 | |
| L-Number | L60010 7906 | |
| Manufacturer/responsible person | STAHLWILLE Eduard Wille GmbH & Co. KG, Lindenallee 27, 42349 WUPPERTAL, Germany, www.stahlwille.de |
Description
Description:
- Precise pre-cutter for fine cutting work in electronics or precision mechanics.
- Cutting geometry rotated by 90° enables precise, vertical work on straight surfaces such as circuit boards.
- The sharp, ground cutting edges deliver equally accurate results with both soft and hard wire.
- The through-going, backlash-free joint offers maximum precision with a consistently long service life.
- The frictionless, self-opening double leaf spring performs the cutting movement smoothly and precisely.
- for demanding work in electronics/precision mechanics
- 90° rotated and laterally angled cutting geometry
- Slim head shape for use in confined working areas
- Durable, backlash-free, pinned joint
- with double leaf spring for smooth movements
- Extended grip sleeves increase slip protection
- Ergonomic thumb rest for optimum handling
- Cutting edges induction hardened to approx. 62 HRC
- with 2-component handles
- DIN ISO 9654
Feature:

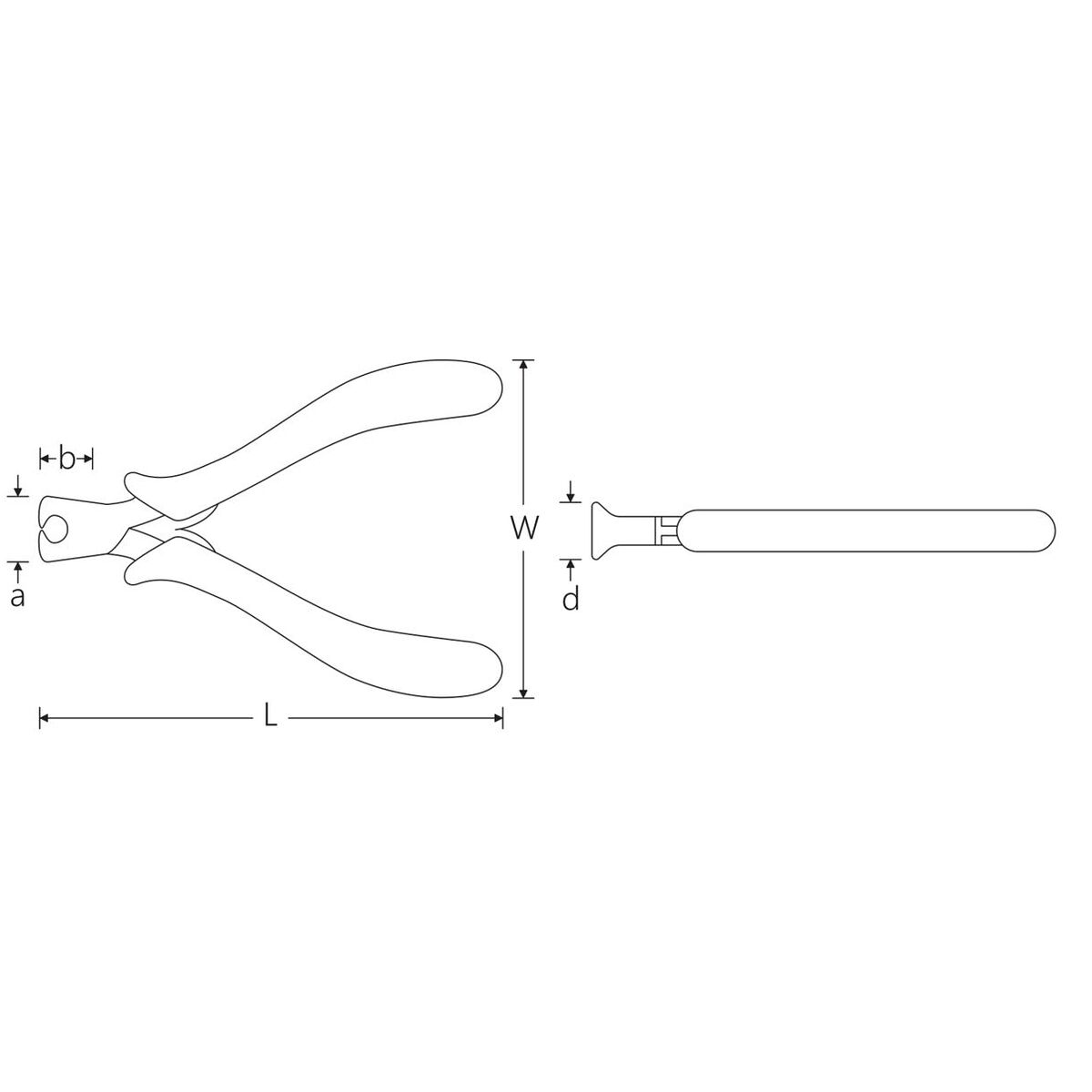

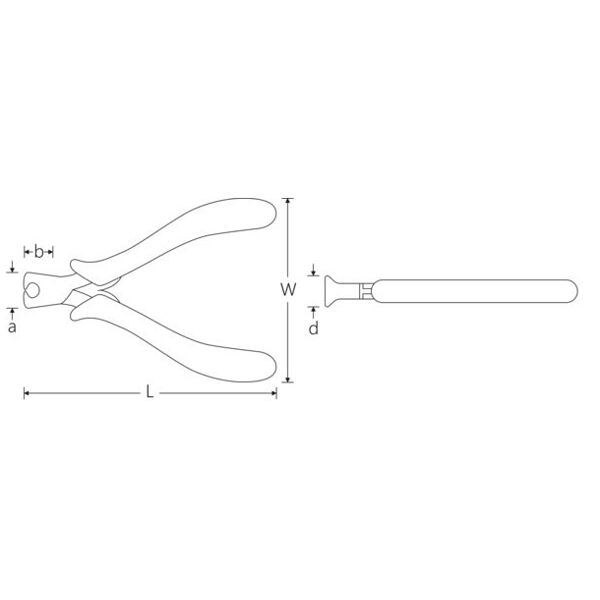

- Jaw length: 6 mm
- Head height mm (d): 8 mm
- Head width mm (a): 12 mm
- Cutting edge width mm (c): 16 mm
- Medium-hard wire (2): 0.3 mm
- Soft wire (1): 0.6 mm
- Head: polished
- Handle: Multi-component handles with soft zones
- Height mm (h): 18 mm
- Length mm (L): 120 mm
- Weight: 80g
- Width mm (b): 90 mm
