Pneumatic clamp
Article no.: 559794
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 559794 | |
| EAN / GTIN | 4020772020996 | |
| Manufacturer number | 559794 | |
| L-Number | L30090 779 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Pneumatic clamps, with horizontal cylinder mounting.
Plastic pneumatic cylinders, double-acting and ready to connect. Tensioner galvanized and passivated, stainless steel rivets that run in case-hardened bushings for sizes 2 and 3. Bearing points are greased.
Complete with quenched, zinc plated, push-on screw No. 6890. The console is self-supporting and does not need to be supported.
Plastic pneumatic cylinders, double-acting and ready to connect. Tensioner galvanized and passivated, stainless steel rivets that run in case-hardened bushings for sizes 2 and 3. Bearing points are greased.
Complete with quenched, zinc plated, push-on screw No. 6890. The console is self-supporting and does not need to be supported.
Feature:
- Size: 3
- F1: 1.4 kN
- F2: 2.5 kN
- F3: 0.55 kN
- F4: 1.00 kN
- F5: 265 N
- UN: 0.30 dm³
- Contact screw: M8 x 45
- Weight: 800 g

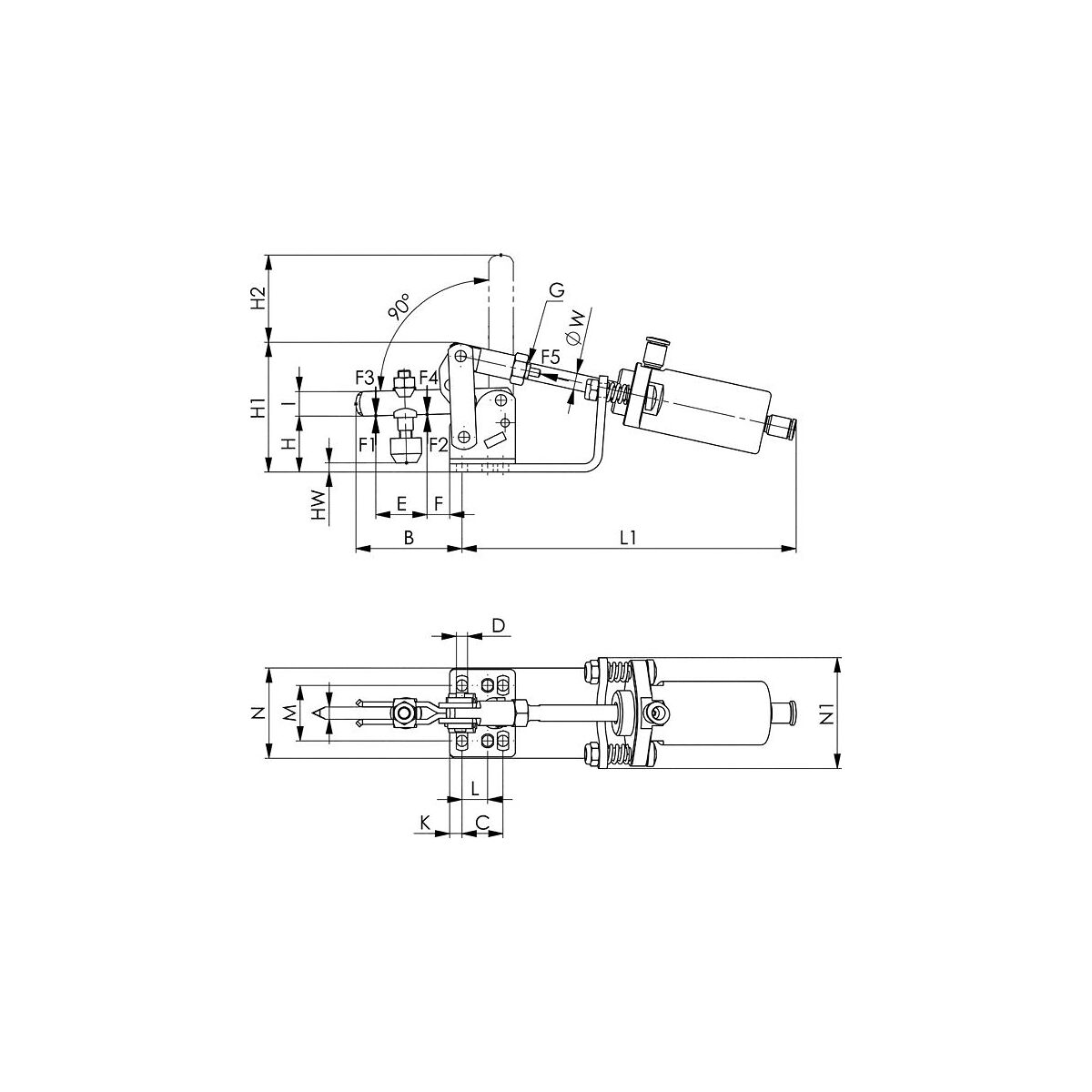

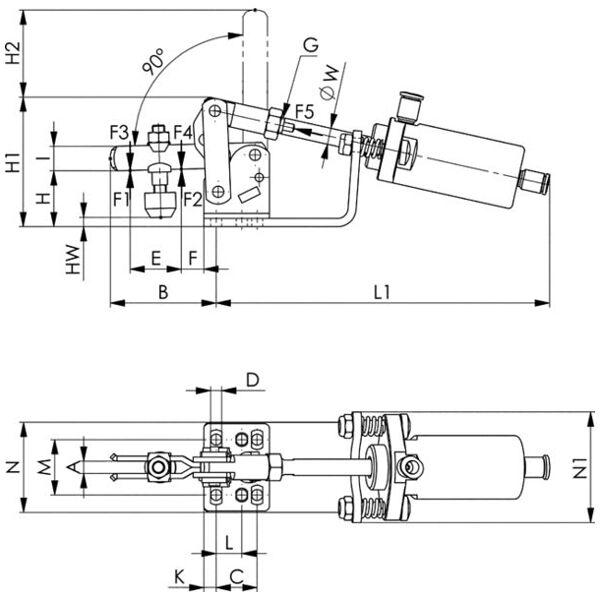

- Size: 3
- A: 8
- B: 78
- C: 20.0
- D: 7.1
- E: 37
- F: 19.0
- G: M10 x 1.25
- H: 38
- H1: 84
- H2: 69.0
- HW min.: 7
- HW max.: 16
- I: 18
- O: 7.5
- Size: 3
- L: -
- L1: 205
- M: 32
- N: 50
- N1: 59
- ØW: 10
- Piston Ø
: 25 - Exterior-Ø for compressed air hose: 6
