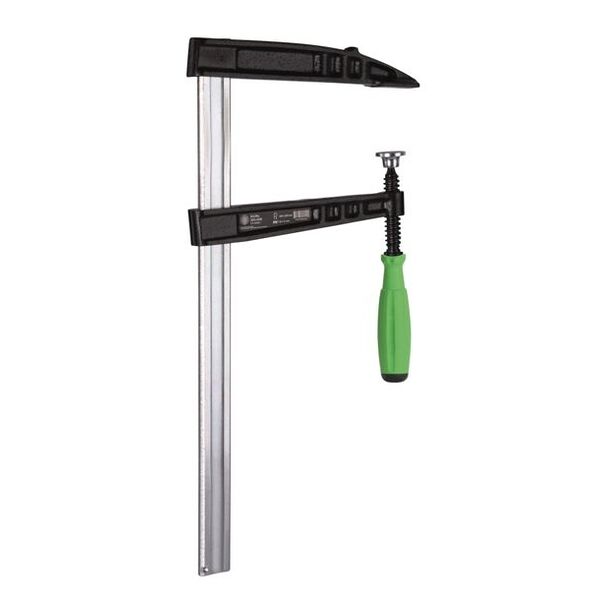

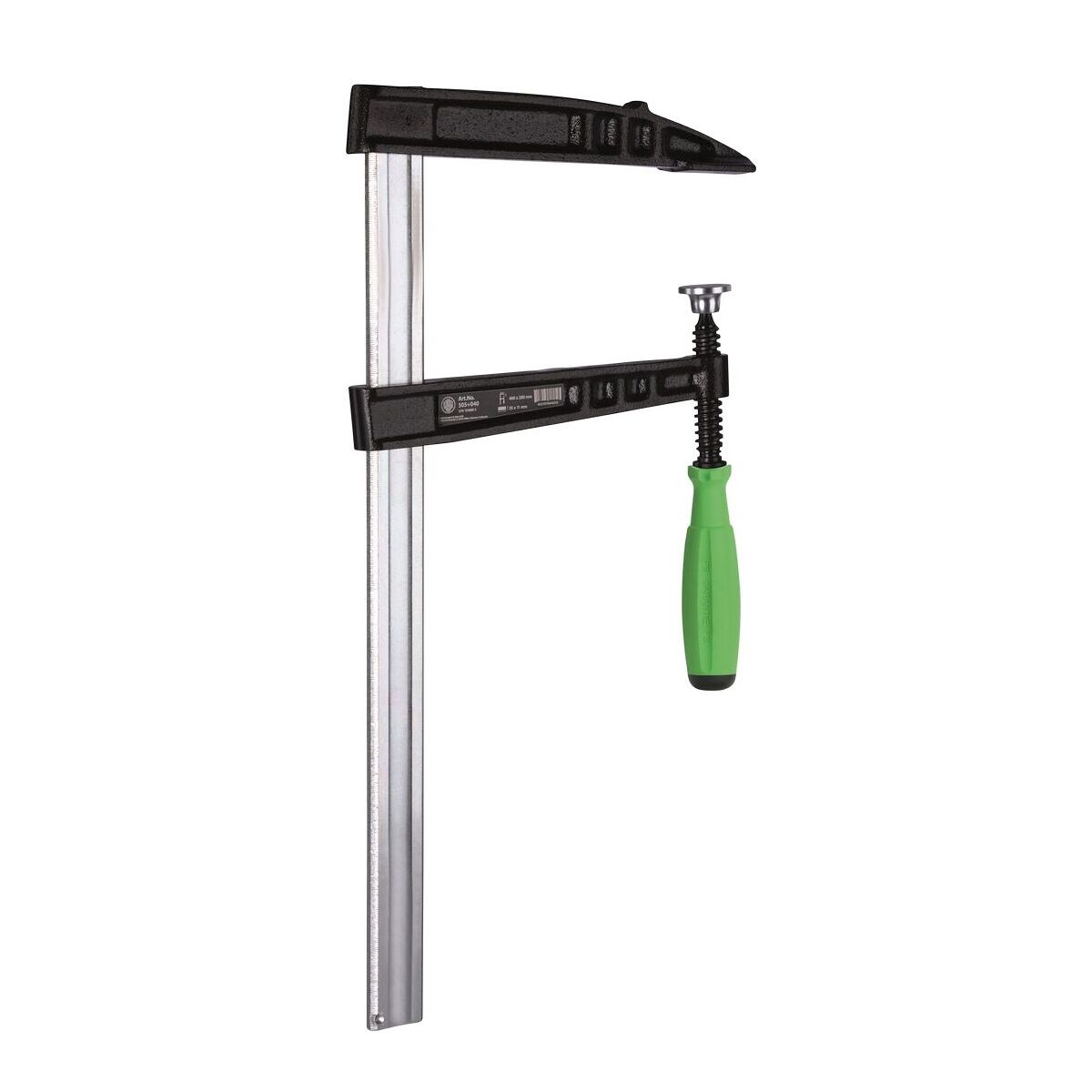

High-tension malleable cast iron screw clamp with 2K comfort handle, max. 400 mm spread, 300 mm reach
Article no.: 507P040
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 507P040 | |
| EAN / GTIN | 4021176779916 | |
| Manufacturer number | 507P040 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:
- The deep-throat cast iron clamps with 2K comfort grip from series 505P to 509P are used for compressing and holding large workpieces in construction and industry. The steel sliding rail allows for a high clamping force to be achieved. Series 505P to 509P are equipped with a 2-component grip that enables safe and stable work.
- Tensile strength up to 7,000 N
- Smooth-running trapezoidal spindles ensure an even higher power transmission.
Feature:
- Material: tool steel
- Total width [mm]: 380 mm
- Total width [inch]: 14 15/16
- Spare parts available: No
- Span (max.) [mm]: 400 mm
- Span (max.) [inch]: 15 3/4
- Total length [mm]: 570 mm
- Total length [inch]: 22 7/16
- Melting temperature of the handles [°C]: 150 °C
- Handle material: 3K plastic
- Single-hand version: No
- With slip resistance: Yes
- Jaws material: malleable cast iron
- Throat [mm]: 300 mm
- Jaw length [mm]: 50 mm
- Jaw length [inch]: 1 15/16
- Jaw width [mm]: 40 mm
- Clamping force [N]: 6.000 Nm
- Cross section of the slide rail [mm]: 45 x 12
- Jaw width [inch]: 1 9/16
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
- Clamping range - throat depth [mm]: 400 mm / 300 mm
