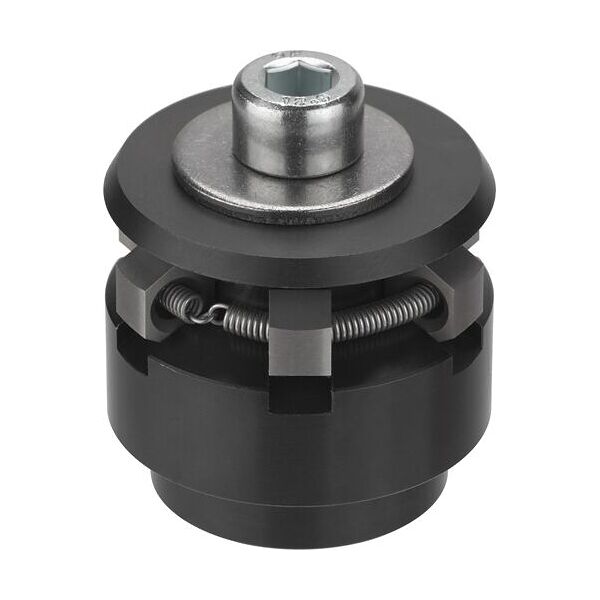

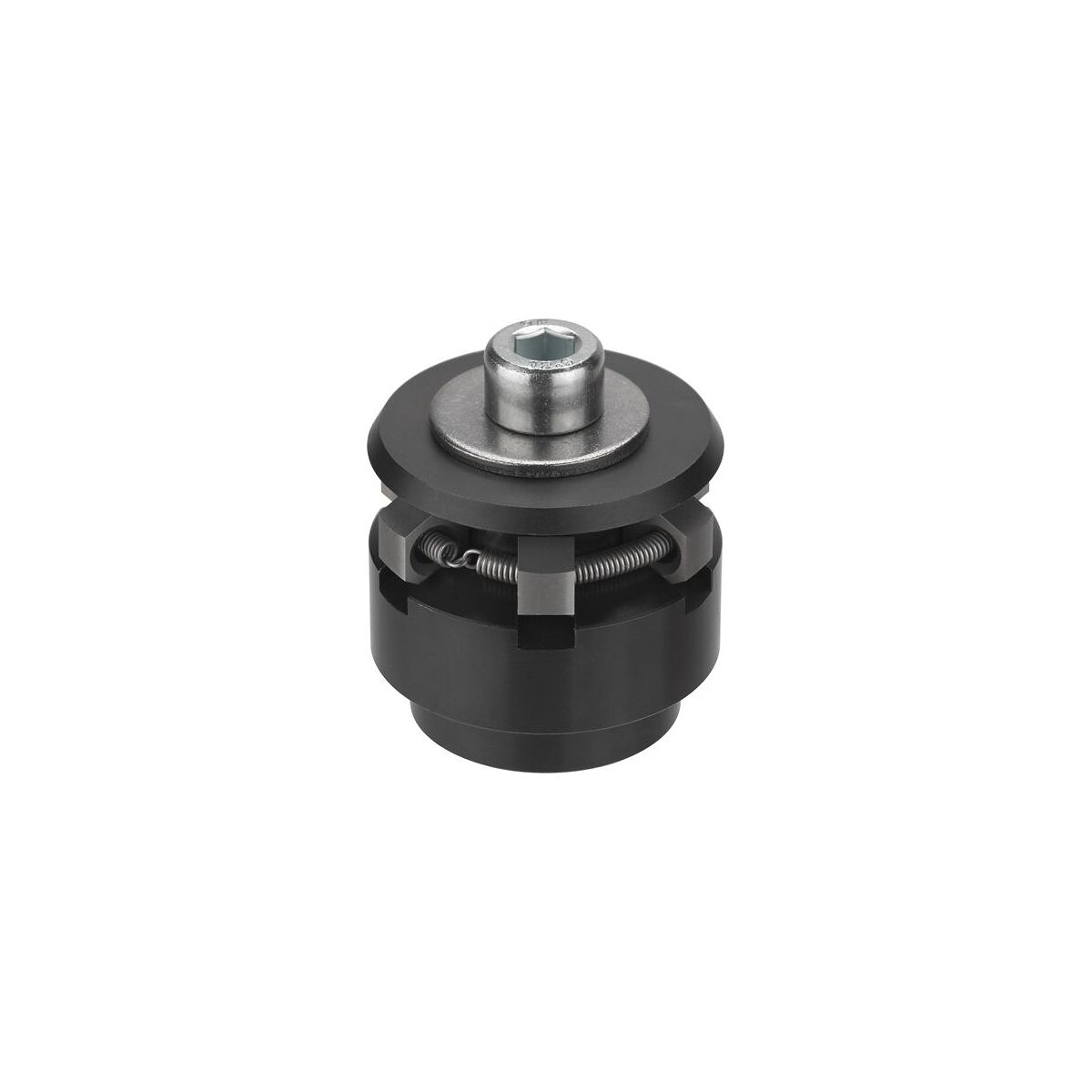

Centring clamp with protective segments
Article no.: 373506
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 373506 | |
| EAN / GTIN | 4020772373504 | |
| Manufacturer number | 373506 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Centering clamps with protective segments, operable from above.
Repeatability +/-0.025 mm
Concentricity accuracy +/-0.050 mm
Repeatability +/-0.025 mm
Concentricity accuracy +/-0.050 mm

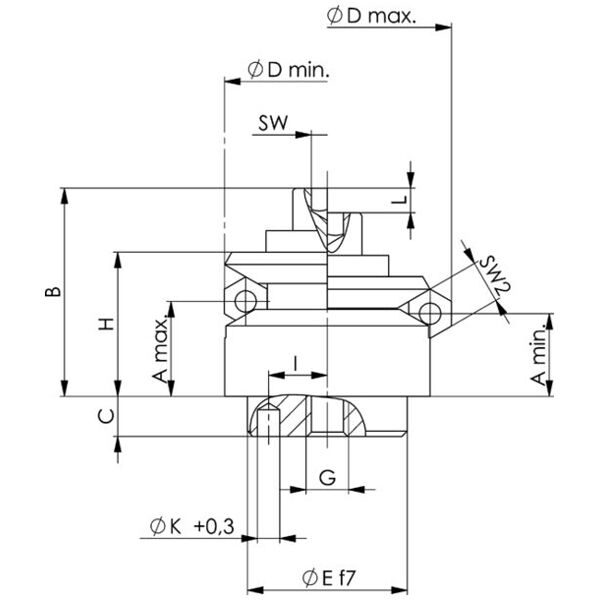

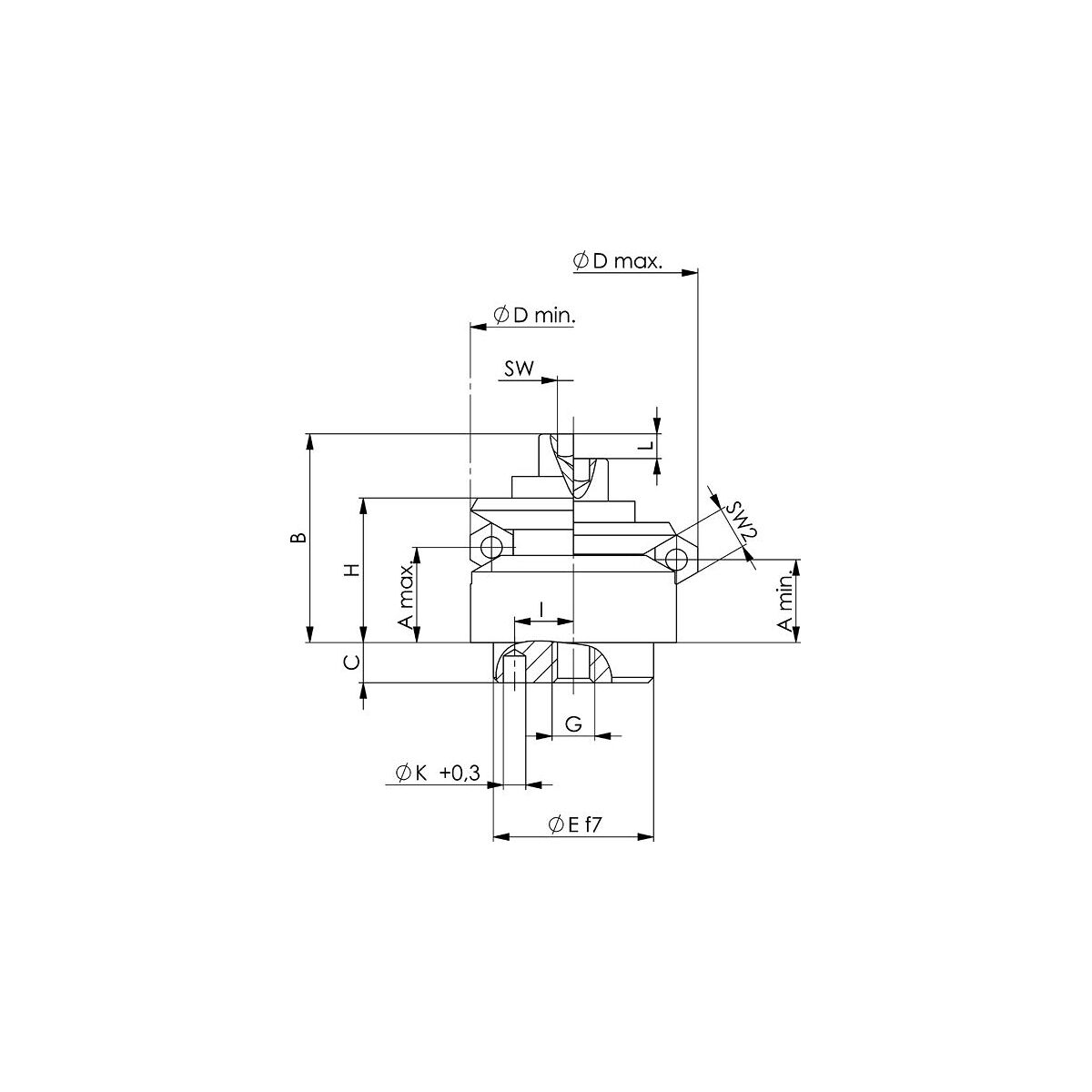

Feature:
- D min: 30.5
- D max.: 38.5
- A min.: 11.7
- A max.: 14.0
- H: 23.2
- P: 5.0 kN
- Weight: 131 g
- B: 32.2
- C: 7.0
- E F7: 25
- G: M6
- HE: 4.0
- I ±0.1: 9.0
- O: 4.0
- L: 4.6
- Q: 3
- QD: 8
- AF: 5
- SW2: 8
