Tapered clamp with adjusting support screw offset, Slot width a: 18mm
Article no.: 370685 18
Article code:
Product details

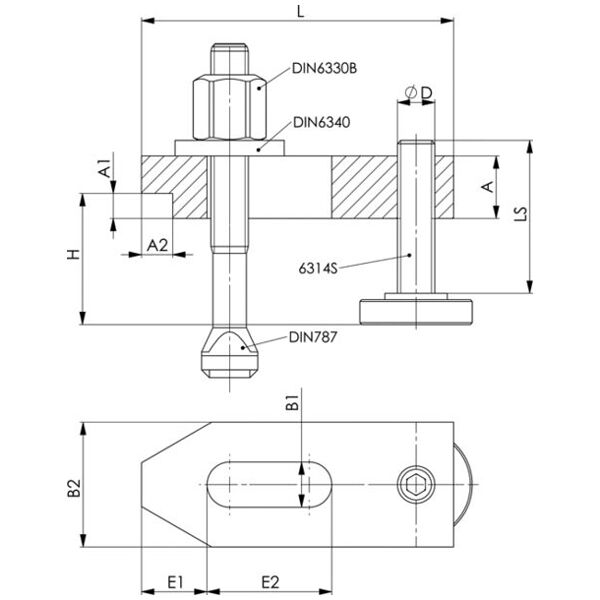

Technical Data
| Slot width a | 18 mm | |
| Type | 6314AV | |
| Clamping height h | 13 mm - 56 mm | |
| Tee bolt DIN 787, No. 375300 | Size 1816125 | |
| Length L | 125 mm | |
| Width B | 50 mm | |
| Height H | 25 mm | |
| Shoulder height A1 | 10 mm | |
| Shoulder depth A2 | 12.5 mm | |
| Distance from tip to slot | 26 mm | |
| Slot length f | 45 mm | |
| Type of product | Plain clamp |
Identification & Classification
| Article number | 370685 18 | |
| EAN / GTIN | 4020772074647 | |
| Manufacturer number | 74641 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Quenched and tempered steel, painted, screw strength 8.8.
Application:
To achieve the lowest clamping height, turn the clamp around.
Supplied with:
Adjusting screw and T-bolt DIN 787 (No. 375300).
