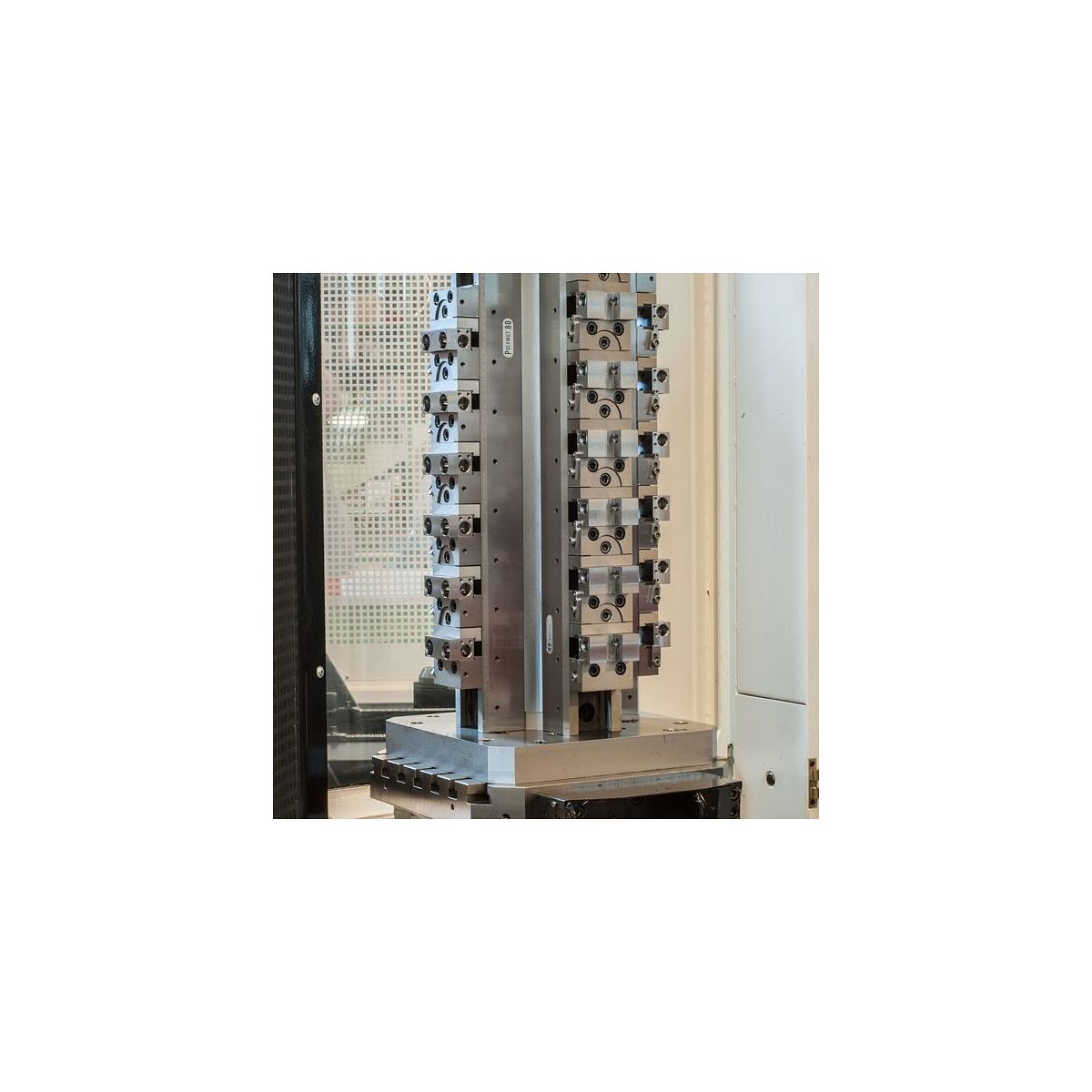

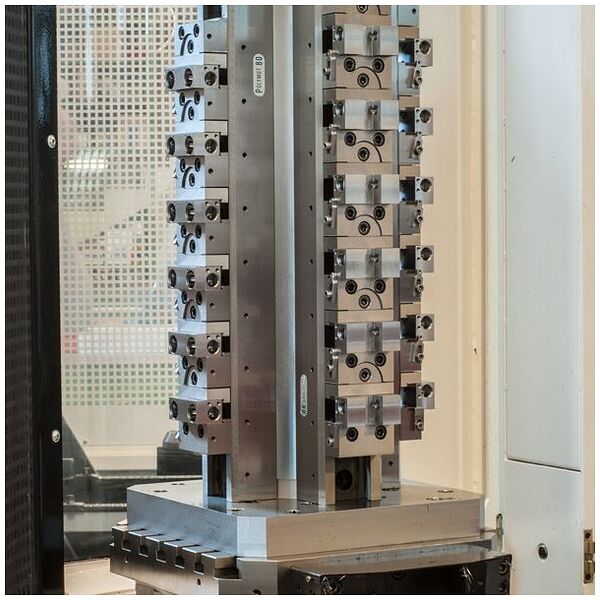

Base element, jaw width 80 mm
Article no.: 304816
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 304816 | |
| EAN / GTIN | 4020772304812 | |
| Manufacturer number | 304816 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Basic element, jaw width 80 mm.
Hole spacing 40 mm.
Hardened 60 HRC, with serration 1 mm.
Suitable for AMF raster system: Grid 40 mm, M12, ø16 F7.
Hole spacing 40 mm.
Hardened 60 HRC, with serration 1 mm.
Suitable for AMF raster system: Grid 40 mm, M12, ø16 F7.
Feature:
- Size: 80-700-040
- Length: 700 mm
- Clamping force: 15 kN
- Weight: 22.1 Kg
- Size: 80-700-040
- A: 700
- B: 90
- C: 60
- D: 400
- ØE F7: 16
- F: 13
- ØG: 13
- H: 12.5
- H1: 12.5
- ØI: 19
- O: 150
- L: 30
- N H7: 18
- R: 40
- S: 58
- T: 101
