FeedKing high feed rate milling cutter with bore, for indexable inserts XD..
Article no.: 212910 32/5
Article code:
- Milling application: Circular milling; Ramping; Plunging
- Spacing of the cutters: unequal spacing
- Through-coolant: yes
- Machining strategy: HPC
- Tool exchange: PowerCard
Product details

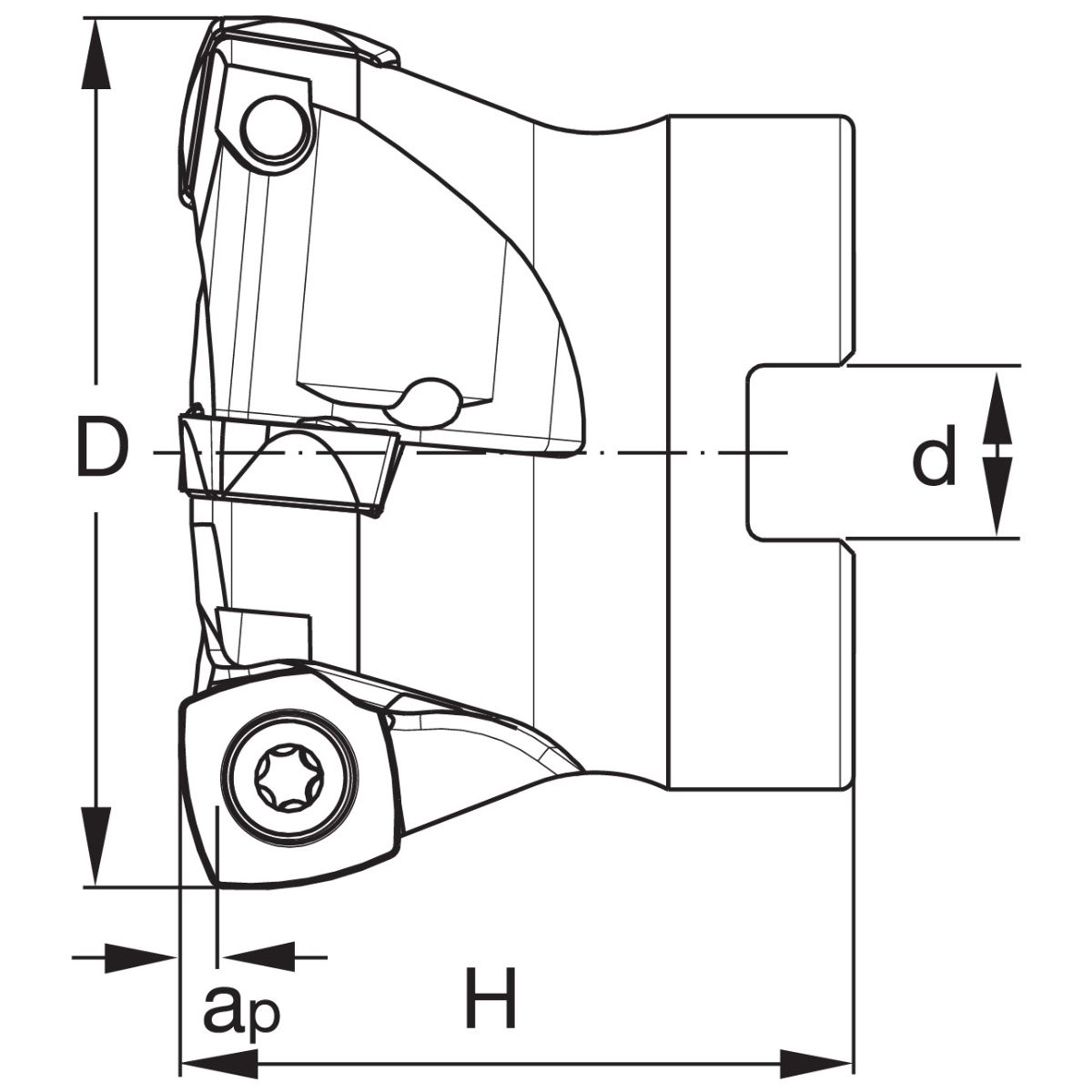

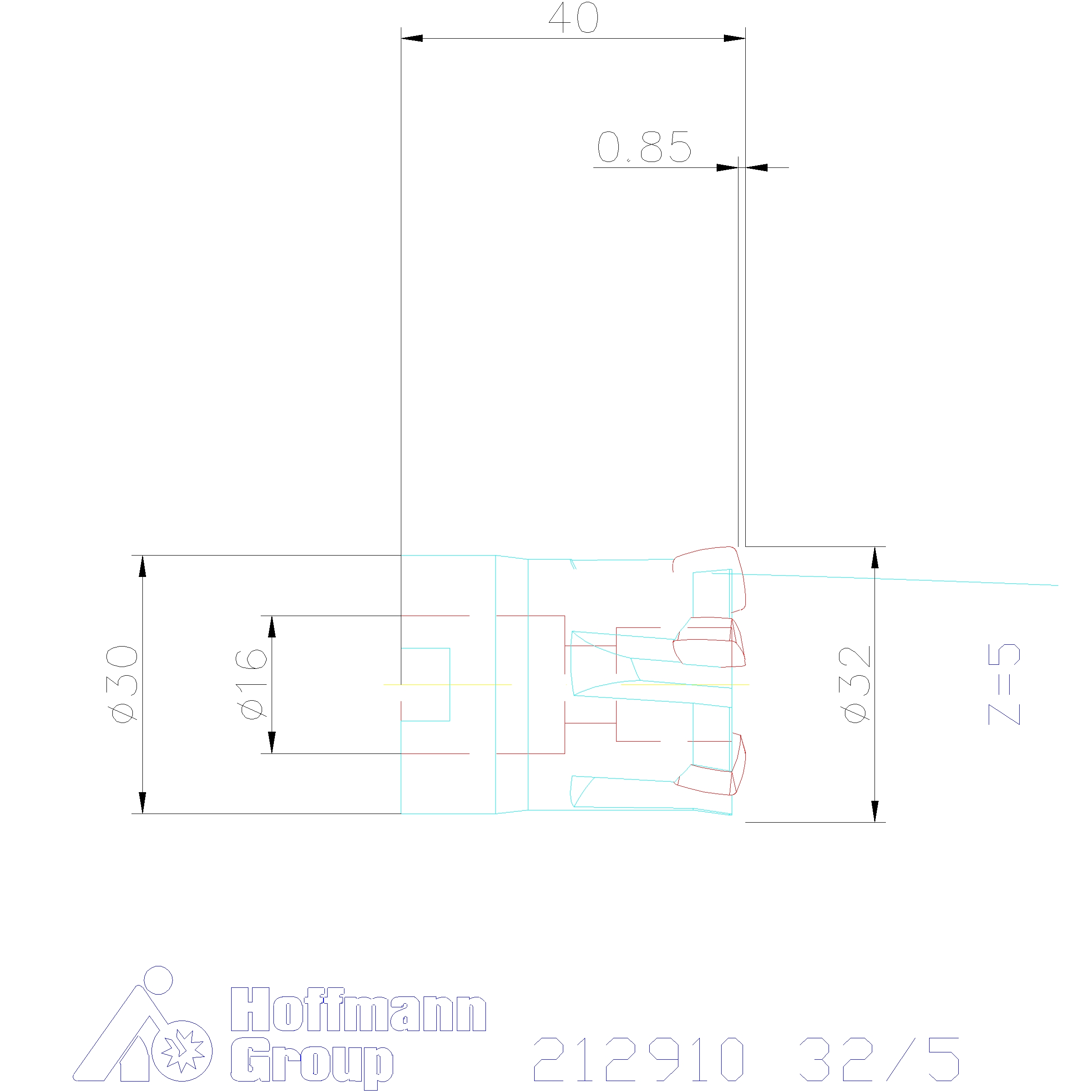

Technical Data
| Series | FeedKing | |
| Cutting edge ⌀ DC | 32 mm | |
| Number of cutting edges Z | 5 | |
| Shank type | with bore | |
| Milling application | Circular milling; Ramping; Plunging | |
| Spacing of the cutters | unequal spacing | |
| Through-coolant | yes | |
| Machining strategy | HPC | |
| Tool exchange | PowerCard | |
| ⌀ D3 | 19 mm | |
| maximum cutting depth ap max | 0.85 mm | |
| Overall length Ltot | 40 mm | |
| Mounting bore ⌀ | 16 mm | |
| Circular interpolation milling ⌀ Dmin | 51 mm | |
| Circular interpolation milling ⌀ Dmax | 62 mm | |
| Circular interpolation milling ap | 0.85 mm | |
| Ramping angle αmax | 0.95 degrees | |
| Ramping length L for αmax | 18 mm | |
| suitable indexable insert | XD.. 070308 | |
| Set of insert screws | 219810 (9IP; 2.2 Nm) | |
| Setting angle κ | 10 degrees | |
| Fz Helix | 0.7 | |
| Type of product | Copy mill |
Identification & Classification
| Article number | 212910 32/5 | |
| EAN / GTIN | 4045197549761 | |
| Manufacturer number | 212910 32/5 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces, thereby reducing the stress on the main spindle.
Advantage:
Particularly cost-effective due to exceptionally sturdy 4-edge inserts.
