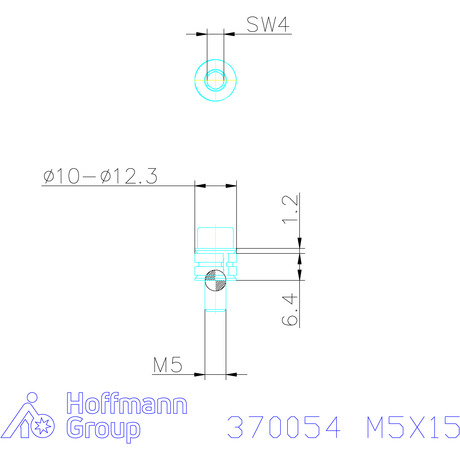

Centring clamp Form B, Thread × length: M5X15
Article no.: 370054 M5X15
Article code:
Product details
Technical Data
| Dmin | 10 mm | |
| Dmax | 12.3 mm | |
| H | 6.4 mm | |
| H1 | 6.2 mm | |
| L | 9 mm | |
| Width across flats AF | 4 mm | |
| maximum clamping force | 2.5 kN | |
| Type of product | Jig clamping system |
Identification & Classification
| Article number | 370054 M5X15 | |
| EAN / GTIN | 4059245267798 | |
| Manufacturer/responsible person | Heinrich Kipp Werk GmbH & Co. KG, Heubergstraße 2, 72172 SULZ AM NECKAR, Germany, www.kippwerk.de |
Description
Version:
Form B with cylinder head screw.
Advantage:
- Pull-down effect.
- Quick and easy clamping of components.
Application:
For centring and clamping a workpiece in the hole. High clamping forces are achieved by the wedge surfaces.
Material:
Heat treatable steel, burnished Hardened (33-39 HRC).
Note:
During the clamping process, the clamping force acts on specific points of the hole wall.
