NC high-pressure vice HiPo Clamp with power intensifier, Type: 125
Article no.: 360455 125
Article code:
- Version: Zero-point clamping system
Product details
Technical Data

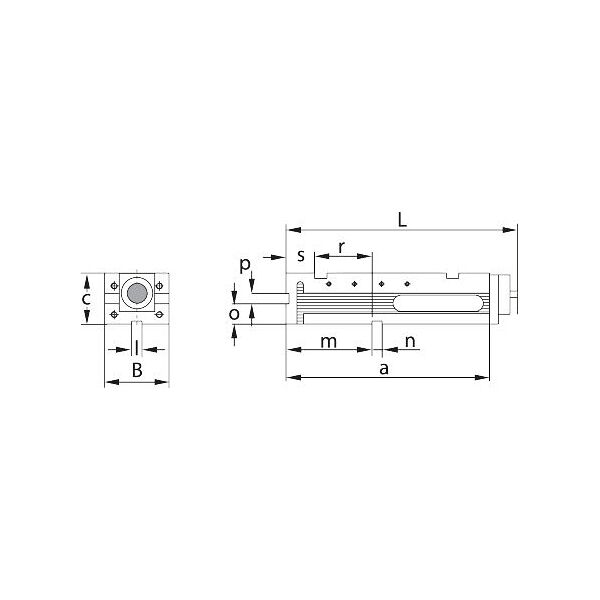

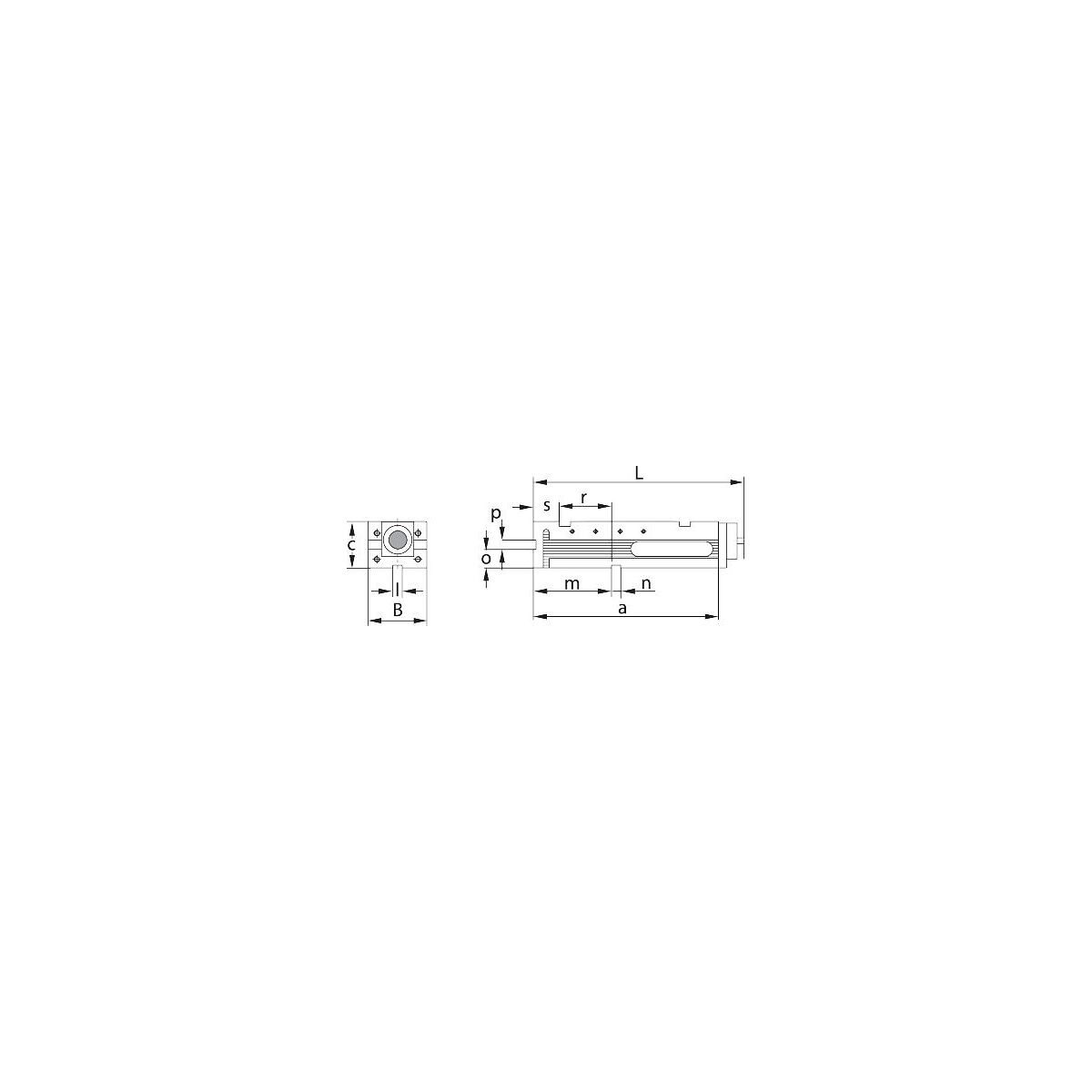

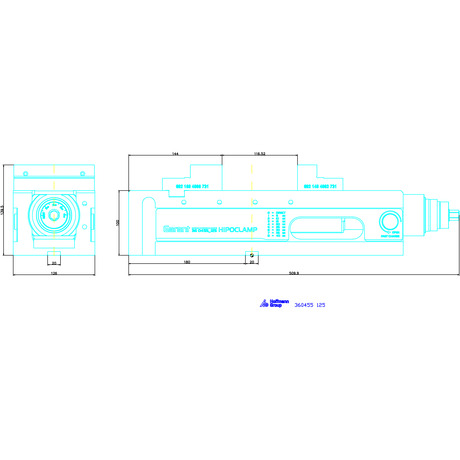

| Series | HiPoClamp | |
| Version | Zero-point clamping system | |
| Clamping force up to maximum | 40 kN | |
| Weight | 35 kg | |
| Overall length L | 512 mm | |
| Base body length a | 424 mm | |
| Base body width B | 125 mm | |
| Clamping range b | 0 mm - 182 mm | |
| Base body height c -0.02 | 100 mm | |
| Clamping range d | 131 mm - 313 mm | |
| Jaw height h | 39.5 mm | |
| Longitudinal slot l H7 | 20 mm | |
| m ±0.02 | 180 mm | |
| Cross-slot n H7 | 20 mm | |
| o −0.02 | 40 mm | |
| Slot pitch p H7 | 20 mm | |
| r ±0.015 | 118 mm | |
| s − 0.02 | 62 mm | |
| t | 144 mm | |
| Colour code for suitable accessories | HiPo | |
| Type of product | Machine vice |
Identification & Classification
| Article number | 360455 125 | |
| EAN / GTIN | 4069515011327 | |
| Manufacturer number | 360455 125 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Pairing accuracy 0.02 mm.
- Alignment dimensions compatible with other manufacturers.
- Universal design accepts wide variety of jaw systems.
- Slides induction hardened.
- Fully enclosed spindle (minimises cleaning requirement).
- Tapped holes on each side for workpiece backstop.
- Including holes 18M16 for zero point clamping system pitch 200mm.
- All faces apart from the end face ground: Can be used horizontally or laterally.
- Angled gear drive can be attached.
- Fully enclosed and nitrided spindle.
- Tapped hole for workpiece backstop.
