GARANT Master TM solid carbide three-profile thread mill 2×D, AlTiN, G: G1/2
Article no.: 139631 G1/2
Article code:
- Thread type: G; BSP; EG-G; EG-G-LH
- Flank angle: 55
- Tool material: Solid carbide
- Shank: DIN 6535 HA to h6
- No. of teeth Z: 6
Product details
Technical Data
| Series | Master TM | |
| Thread size | G1/2 | |
| Coating | AlTiN | |
| Thread type | G; BSP; EG-G; EG-G-LH | |
| Flank angle | 55 degrees | |
| Tool material | Solid carbide | |
| Shank | DIN 6535 HA to h6 | |
| Thread pitch | 1.814 mm | |
| Threads per inch | 14 | |

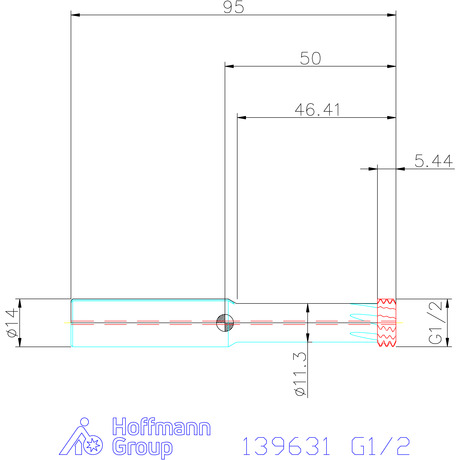

| Nominal ⌀ DC | 13.95 mm | |
| Flute length Lc | 5.44 mm | |
| Shank length Ls | 45.9 mm | |
| Overhang L1 | 46.4 mm | |
| Overall length L | 95 mm | |
| Shank ⌀ Ds | 14 mm | |
| No. of teeth Z | 6 | |
| Through-coolant | yes | |
| Application for type of drilling | up to 2×D for blind holes; up to 2×D for through holes | |
| Spacing of the cutters | unequal spacing | |
| Feed fz in steel < 1400 N/mm2 | 0.1 mm | |
| Feed fz in CRP | 0.12 mm | |
| Thread profile | Full profile | |
| Shank tolerance | h6 | |
| Number of clamping slots | 6 | |
| Colour ring | green | |
| Internal/external application | Internal and external | |
| Thread depth | 46.4 mm | |
| Type of product | Thread mill |
Identification & Classification
| Article number | 139631 G1/2 | |
| EAN / GTIN | 4069515023696 | |
| Manufacturer number | 139631 G1/2 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
N
200
N
190
N
160
P
125
P
115
P
110
P
80
P
70
H
45
H
35
M
75
M
70
S
45
N
175
N
100
N
100
N
150
Description
Version:
Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth cutting action and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials.
- Significantly reduced vibration due to irregular cutting edge spacing.
- Increased number of cutting edges.
- Latest-generation AlTiN-based HIPIMS coating.
- Corrected thread profile for avoidance of profile distortions.
Advantage:
Significantly less radial pressure than with multi-tooth thread mills. Axial cooling grooves on the shank for optimum chip evacuation.
Application:
For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connections). Suitable for internal and external threads.
Note:
HB and HE shanks are available at the same price as HA.
HB shank: order with No. 139631 + 129100 HB.
HE shank: order with No. 139631 + 129100 HE.
HB shank: order with No. 139631 + 129100 HB.
HE shank: order with No. 139631 + 129100 HE.
Can also be used for thread size G5/8 - G7/8
