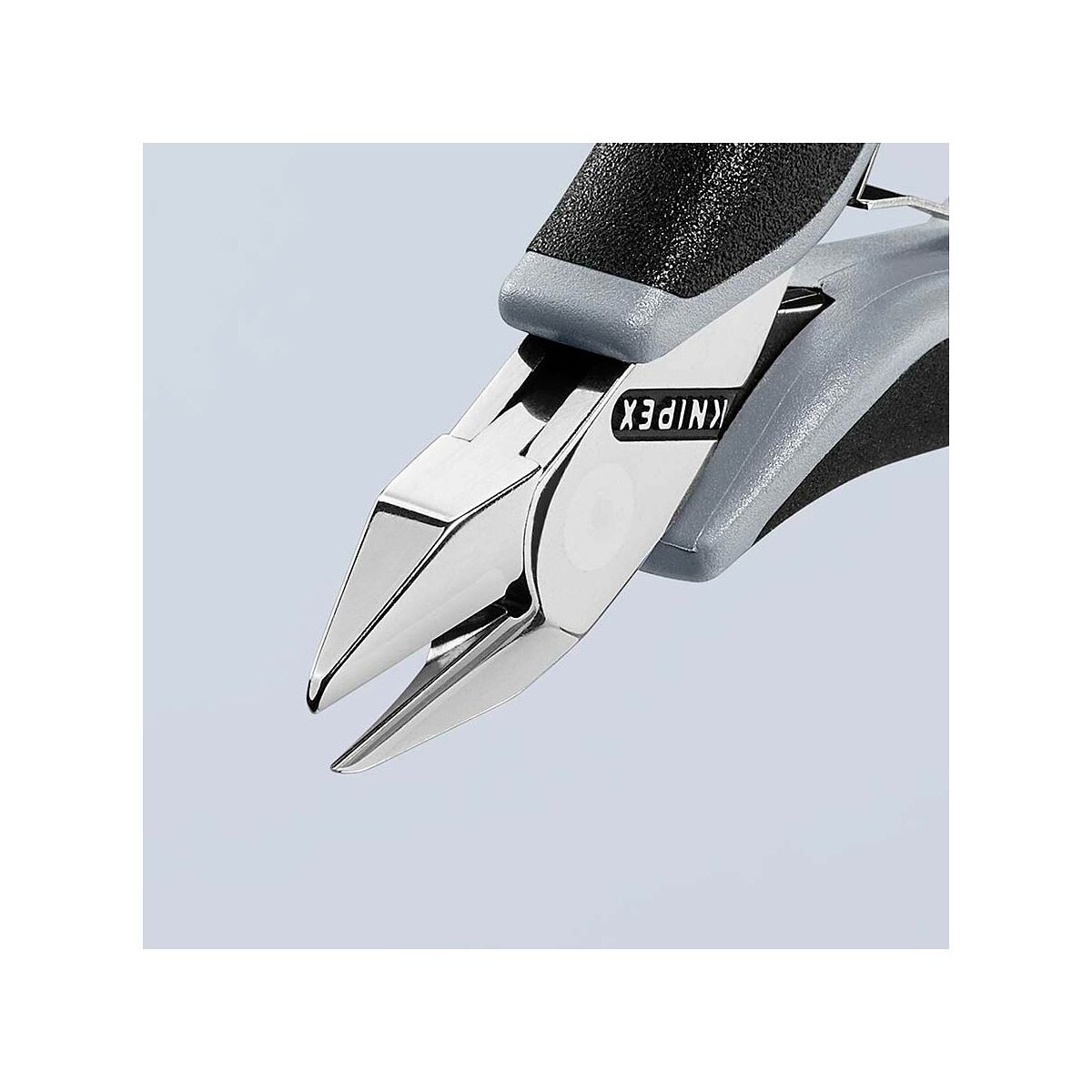

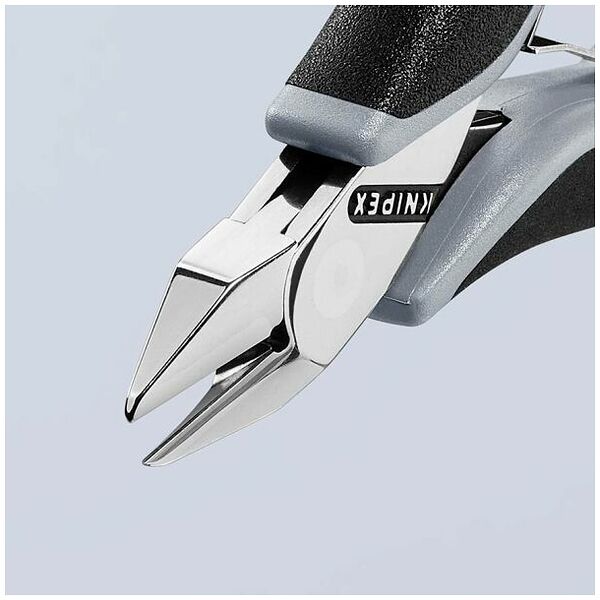

Electronics side cutter, mirror-polished, pointed head, KW, overall length: 115mm
Article no.: 726437 115
Article code:
- electrostatic characteristic: EGB/ESD
- Cutting chamfer: without bevel
- Material: Ball bearing steel
Product details
Technical Data
| overall length | 115 mm | |
| electrostatic characteristic | EGB/ESD | |
| Cutting chamfer | without bevel | |
| Material | Ball bearing steel | |
| Head width | 11 mm | |
| Cutter length | 14 mm | |
| Cutting capacity copper wire up to ⌀ | 0.3 mm - 1.3 mm | |
| Cutting capacity medium hard wire up to ⌀ | 0.3 mm - 0.8 mm | |
| Head shape | pointed | |
| Standard | DIN ISO 9654 | |
| Handle | Multi-component covering | |
| Manufacturing process | Cutting edges induction hardened (approx. 62 HRC) | |
| Surface | mirror polished | |
| with return spring | yes | |
| Type of product | Cutting pliers |
Identification & Classification
| Article number | 726437 115 | |
| EAN / GTIN | 4003773031901 | |
| Manufacturer number | 77 42 115 ESD | |
| Manufacturer/responsible person | KNIPEX-Werk C. Gustav Putsch KG, Oberkamper Straße 13, 42349 WUPPERTAL, Germany, www.knipex.de |
Description
Version:
Mirror polished, therefore no faults in the circuit due to peeling chrome plate. Sturdy box joint with zero play. Low-friction double spring for smooth and gentle opening. Multi-component grips, black/grey, electrically conductive. Suitable for ESDs.
Application:
For making precision cuts, e.g. in electronics and precision mechanisms.
Standard:
DIN ISO 9654
Material:
Ball-bearing steel, cutting edges induction hardened.
