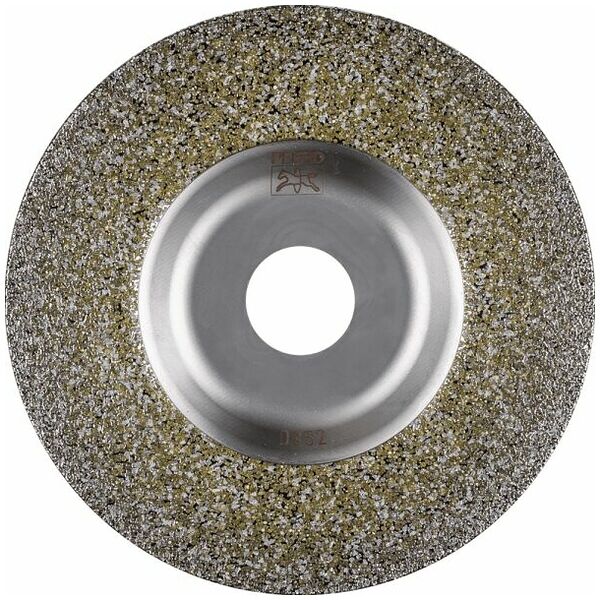

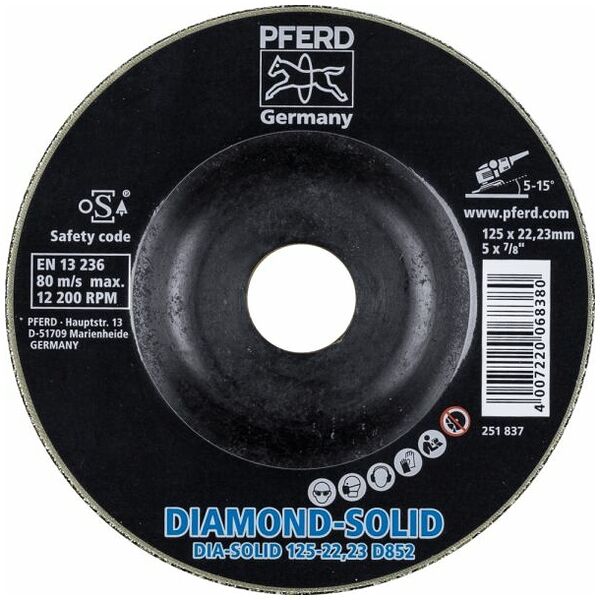

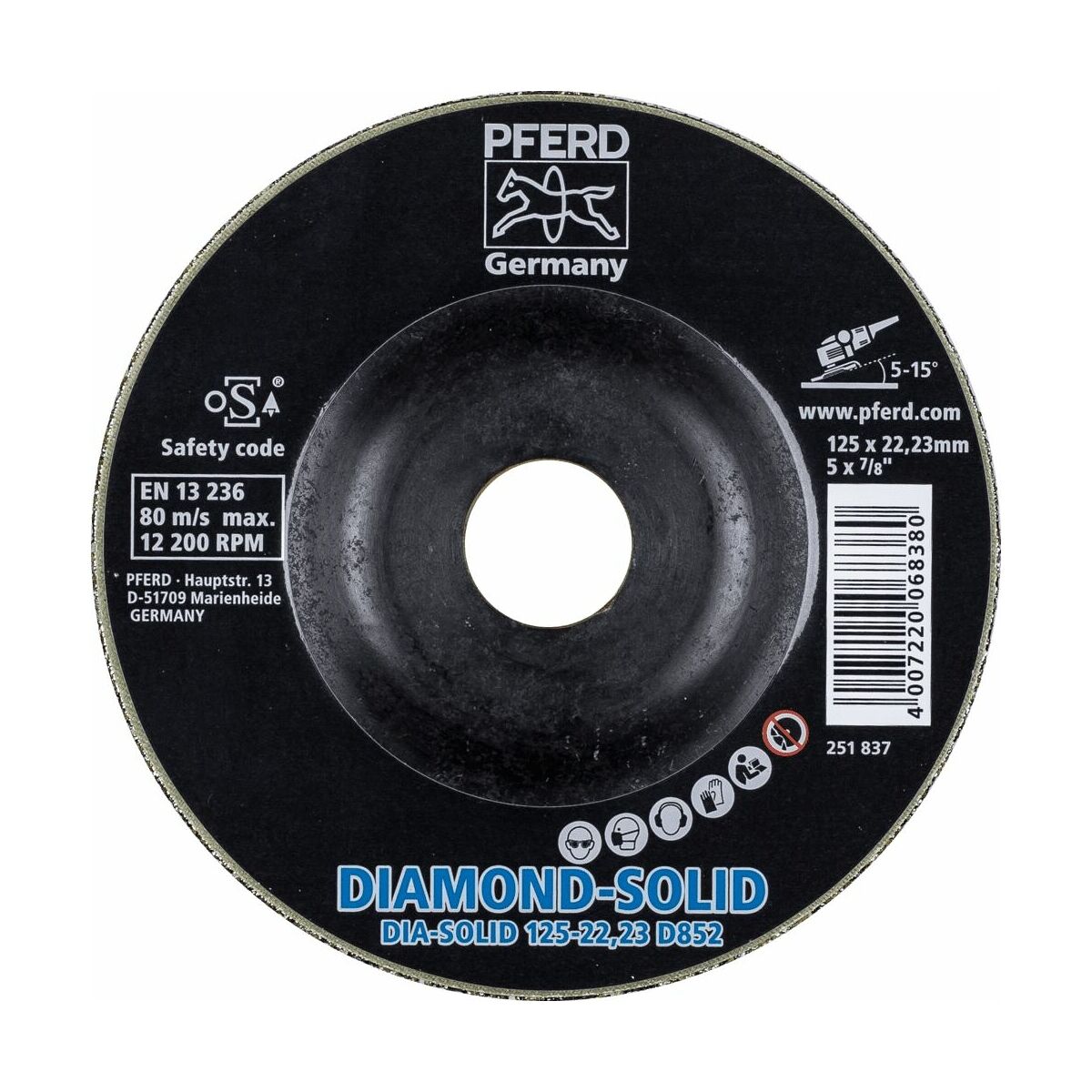

Grinding disc CC-GRIND-SOLID-DIAMOND, ⌀ 125 mm, Type: D852
Article no.: 566368 D852
Article code:
- Grinding medium code: D
- Iron, sulphur and chlorine constituents: < 0.1
- Bore ⌀: 22.23
- recommended approach angle: 5-15
- maximum circumferential speed: 40
Product details
Technical Data
| Grinding medium code | D | |
| Iron, sulphur and chlorine constituents | < 0.1 % | |
| Bore ⌀ | 22.23 mm | |
| recommended approach angle | 5-15 degrees | |
| maximum circumferential speed | 40 m/s | |
| Type of product | Grinding wheel |
Identification & Classification
| Article number | 566368 D852 | |
| EAN / GTIN | 4007220068380 | |
| Manufacturer number | 4007220068380 | |
| Manufacturer/responsible person | August Rueggeberg GmbH & Co. KG, Hauptstraße 13, 51709 MARIENHEIDE, Germany, www.pferd.com |
Application Table
Description
Version:
CC-GRIND-SOLID DIAMOND grinding disc, coated over the entire surface with galvanically-bonded diamond.
Application:
For working on very hard materials such as titanium, nickel-based alloys, cast iron, carbide, ceramics and composite fibre materials. For working on surfaces and edges, weld seam dressing and deburring. Supplied with clamping flange set No. 566365.
