Digital length measurement probe set µFinder GT, Type: 31
Article no.: 434718 31
Article code:
Click to enlarge image
Click to enlarge image
TESA µFinder Set No. 434718 size 31 for parallelism and straightness measurements and for alignment of machines.
Click to enlarge image
- Reversible reading: mm / inch
- Interface: TESA Link Connector TLC; Digimatic interface; Digimatic interface
Product details
Technical Data
| Article no of the battery / rechargeable battery fitted | 081561 LR6 | |
| Span of measurement | 0.3 mm | |
| Reversible reading | mm / inch | |
| Interface | TESA Link Connector TLC; Digimatic interface; Digimatic interface | |
| Power supply | Battery-powered | |
| Number of batteries contained | 1 | |
| Gauging force | 0.2 N | |
| Clamping shank ⌀ h6 | 8 mm | |
| Measurement technology | digital | |
| Type of product | Lever dial indicator |
Identification & Classification
| Article number | 434718 31 | |
| EAN / GTIN | 7630041143669 | |
| Manufacturer number | 04430013P1 |
Description
Version:

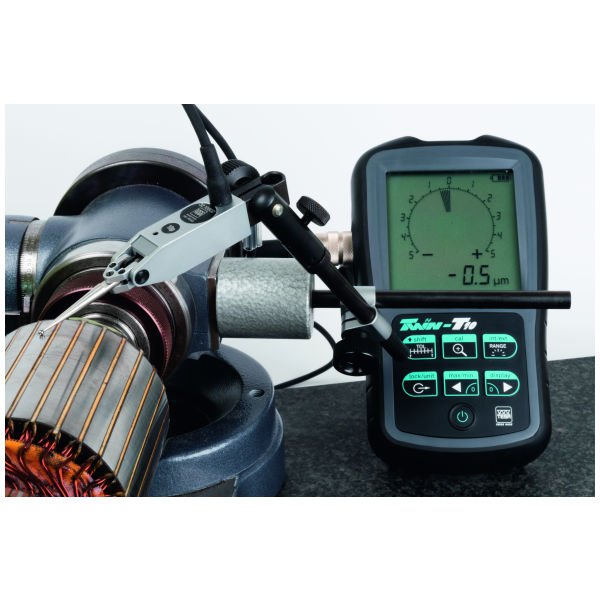

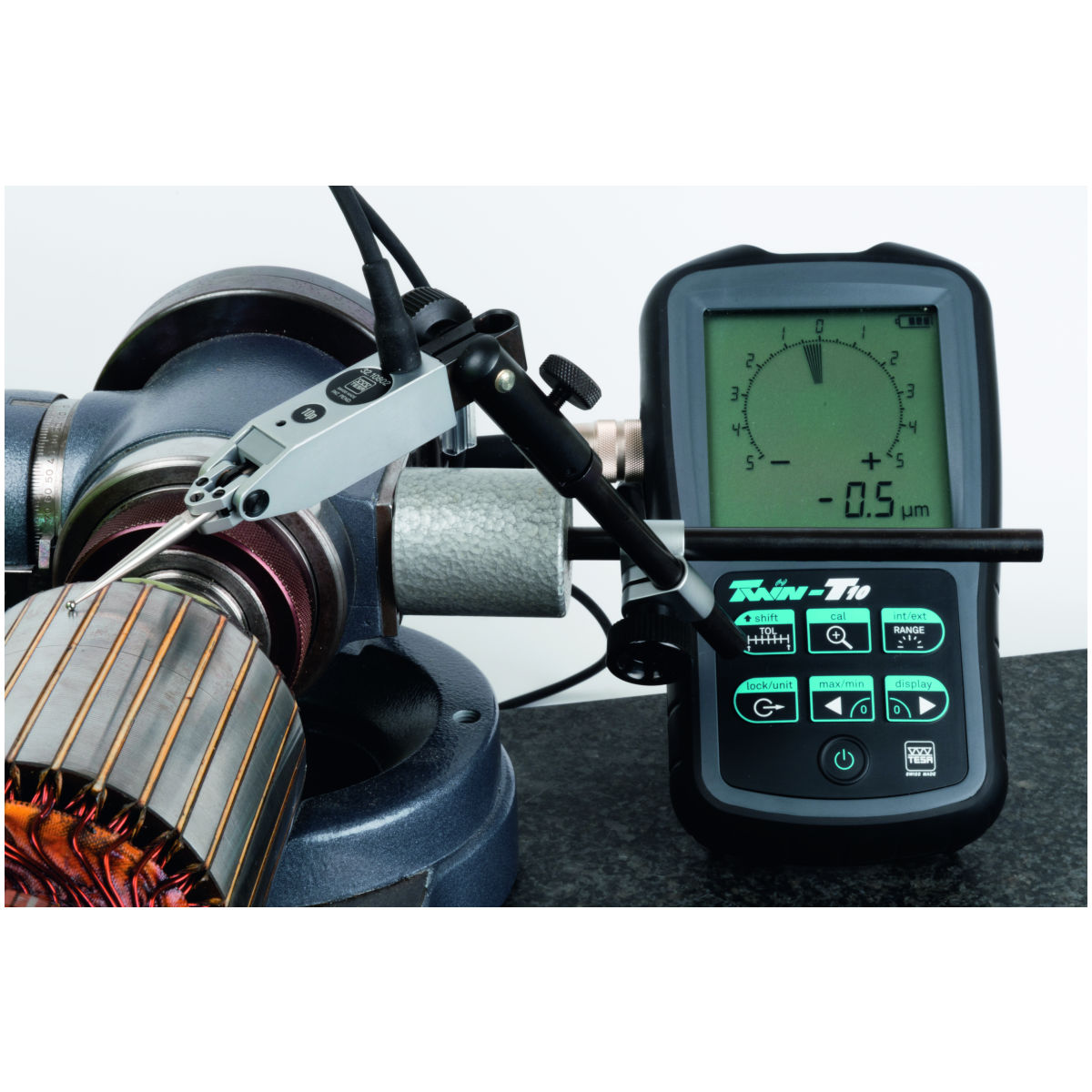

Mobile high-precision set for parallelism and straightness measurements, and for alignment of machines in quality control and service.
Sturdy portable display unit with scale and digital display for inductive measurement probes. Clear and error-free reading thanks to the highly detailed scale display. 5× zoom mode. Very long running time of more than 300 hours. Optimum handling due to ergonomic design and soft touch surface.
Sturdy portable display unit with scale and digital display for inductive measurement probes. Clear and error-free reading thanks to the highly detailed scale display. 5× zoom mode. Very long running time of more than 300 hours. Optimum handling due to ergonomic design and soft touch surface.
- Adjustable-angle measuring tip for measurements in two directions.
- Ball-bearing lifting system with mass balancing.
- Collision-protection by means of two slip clutches.
- Contact point with ⌀ 2 mm carbide ball - can pivot through 180°.
- Independent change of sensing direction, without change of arithmetic sign.
- Case with two dovetail bars.
Supplied with:

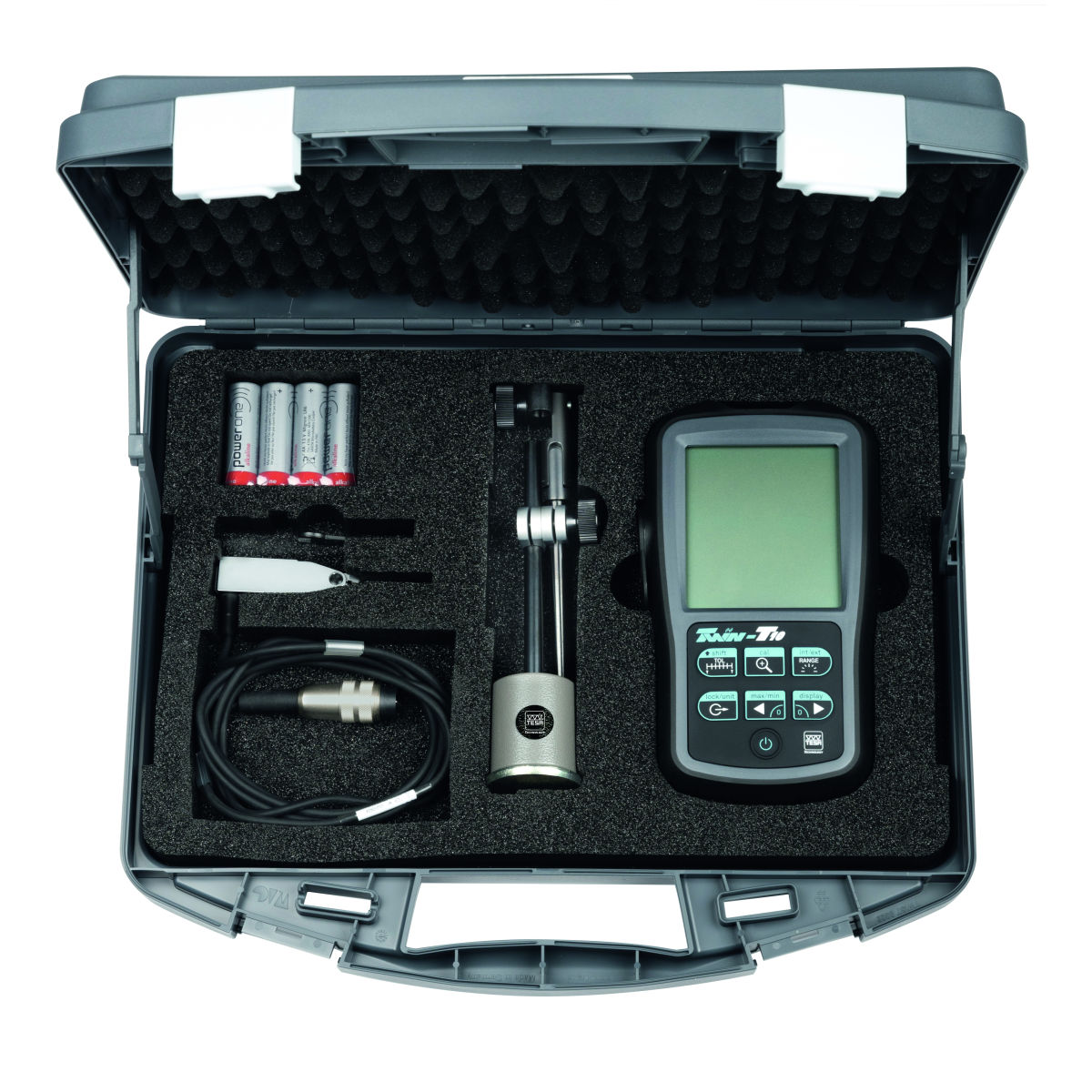

Supplied with instruction handbook, portable TWIN-T10 display unit No. 434716 size T10, 4× batteries No. 081561 size LR6, small magnetic stand, case.
Including lever contact point No. 434779 size GT31.
