Tee bolt (10.9. / 8.8.) complete, Type: 1614125
Article no.: 375300 1614125
Article code:
Product details
Technical Data
| Type | 787 | |
| T-slot nominal size | 16 mm | |
| Thread G | M14 | |
| Length L | 125 mm | |
| Thread length b | 75 mm | |
| narrow nut width a | 15.7 mm | |
| Nut width e | 25 mm | |
| Height k | 9 mm | |
| Type of product | Tee-bolt |
Identification & Classification
| Article number | 375300 1614125 | |
| EAN / GTIN | 4020772084455 | |
| Manufacturer number | 84459 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:

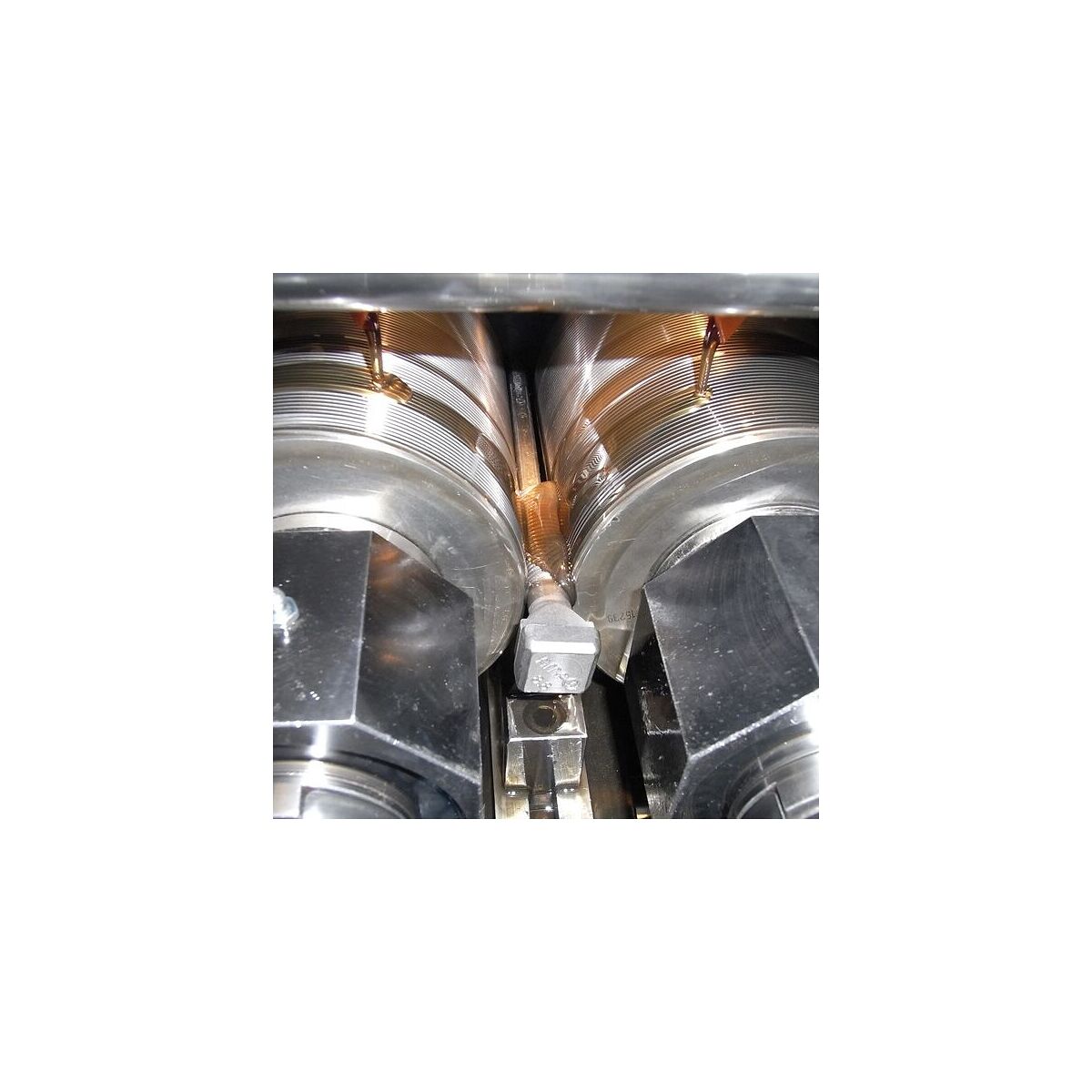

T-bolt, forged and rolled thread.
Standard design, strength class = 10.9 (for M6 − M12) and strength class = 8.8 (for M14 − M24).
Standard design, strength class = 10.9 (for M6 − M12) and strength class = 8.8 (for M14 − M24).
Standard:
DIN 787
Supplied with:
Note:
- Reading example − size 6625 means: T-slot = 6 mm, thread G = M6, length L = 25 mm.
