NC high-pressure vice, Type: 160ST
Article no.: 360565 160ST
Article code:
Product details

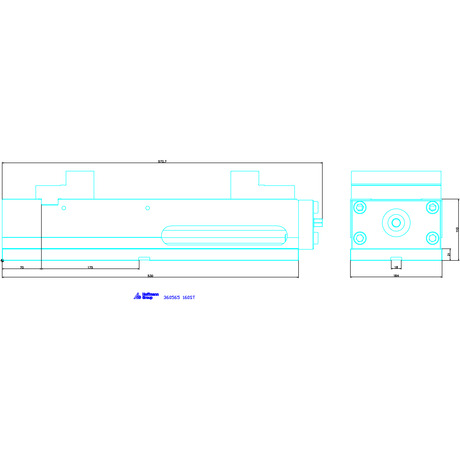

Technical Data
| Series | HOLEX NC | |
| Type | 160ST | |
| Clamping force up to maximum | 60 kN | |
| Weight | 66 kg | |
| Overall length L | 573 mm | |
| Base body length a | 530 mm | |
| Base body width B | 164 mm | |
| Clamping range b | 0 mm - 245 mm | |
| Base body height c -0.02 | 110 mm | |
| Overall height F | 159.8 mm | |
| Clamping range d | 190 mm - 435 mm | |
| g | 21 mm | |
| Longitudinal slot l H8 | 20 mm | |
| Cross-slot n H7 | 20 mm | |
| r | 174 mm | |
| t | 70 mm | |
| Colour code for suitable accessories | HOLEX NC | |
| Number of threads for workpiece back-stop | 2 | |
| Width across flats AF | 14 mm | |
| Type of product | Machine vice |
Identification & Classification
| Article number | 360565 160ST | |
| EAN / GTIN | 4069515011273 | |
| Manufacturer number | 360565 160ST | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Small size – optimum ratio of clamping range to overall length.
Stepless adjustment – 100% clamping force at 360°.
Particularly rigid body made of GJS-60, ground on top and bottom faces.
Pairing accuracy 0.02 mm.
Stepless adjustment – 100% clamping force at 360°.
Particularly rigid body made of GJS-60, ground on top and bottom faces.
Pairing accuracy 0.02 mm.
- Thread on both sides (M8), for securing a workpiece backstop.
- Wear-resistant power intensifier
- Precise alignment slots.
- Side outlet opening for evacuation of chips and coolant.
- Low-maintenance high-pressure spindle – constant pressure level due to wear-resistant mechanical power intensifier.
Feature:
- Fully enclosed low-maintenance nitrided spindle.
- Increased service reliability.
- Optimised swarf protection.
- Minimised cleaning requirement.
Application:
For horizontal use. Versatile clamping unit for machining centres.
Supplied with:
Including 2 pcs. stepped jaws and 1 pc. hand crank.
Optional extras:
Stepless adjustable clamps No. 360579.
Alignment and fixing set No. 360530.
Popular makes of jaws such as No. 361400– 361660, No. 361295– 361298.
Workpiece backstop and crank No. 360555 and 360800.
Jaws quick-change system No. 361293 125 and 361294 125.
Alignment and fixing set No. 360530.
Popular makes of jaws such as No. 361400– 361660, No. 361295– 361298.
Workpiece backstop and crank No. 360555 and 360800.
Jaws quick-change system No. 361293 125 and 361294 125.
Note:
Alignment dimensions not compatible with those of other manufacturers.
Warning:
Intended use
Reasonably foreseeable misuse
- Use only when correctly assembled and with safety devices and guards on the machine fully operational.
- Use only in enclosed spaces.
- For work in industrial environments.
- Use only on a flat and clean base.
- Use for clamping workpieces.
- For clamping workpieces in the blank or partially machined state.
- Only use vice with its own spindle wrench.
Reasonably foreseeable misuse
- Do not use in explosion hazard areas.
- Not for use in areas where high concentrations of dust, flammable gases, vapours or solvents are present.
- Do not mount components not in accordance with the specification.
- Do not make any unauthorised modifications.
- Use only original spare parts and wearing parts.
- Do not operate outside of the operating parameters.
- No clamping with driven tools with an undefined torque.
- Do not operate with appropriate supervision.
