Article no.: 360405 200
NC high pressure vice version LC, Type: 200
Article no.: 360500 200
Article code:
Find similar products here:
Product details

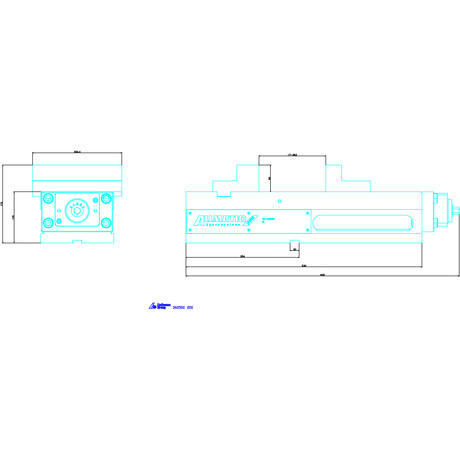

Technical Data
| Series | NC8 | |
| Type | 200 | |
| Clamping force up to maximum | 60 kN | |
| Weight | 71 kg | |
| Overall length L | 616 mm | |
| Base body length a | 530 mm | |
| Base body width B | 164 mm | |
| Clamping range b | 0 mm - 263 mm | |
| Base body height c -0.02 | 115 mm | |
| Clamping range d | 187 mm - 433 mm | |
| Jaw height h | 60 mm | |
| Longitudinal slot l H7 | 20 mm | |
| m | 234 mm | |
| Cross-slot n H7 | 20 mm | |
| r ±0.015 | 164 mm | |
| t | 164 mm | |
| Colour code for suitable accessories | LC | |
| Type of product | Machine vice |
Identification & Classification
| Article number | 360500 200 | |
| EAN / GTIN | 4250364400602 | |
| Manufacturer number | 6921698000955 | |
| Manufacturer/responsible person | ALLMATIC-Jakob Spannsysteme GmbH, Jägermühle 10, 87647 UNTERTHINGAU, Germany, www.allmatic.de |
Description
Version:
Compact size: Optimum ratio between clamping range and overall length. Required clamping force pre-selectable: in 11 steps: Jaw width 70 / 90 mm, in 4 steps: Jaw width 125 / 160 / 200 mm Particularly rigid base body of spheroidal graphite iron, top and bottom faces ground; pairing accuracy 0.02 mm.
Feature:
Fully enclosed and nitrided spindle!
Feature:
Fully enclosed and nitrided spindle!
- Increased service reliability.
- Optimised swarf protection.
- Minimised cleaning requirement.
Base body same as size 160.
Supplied with:
2 stepped jaws (= standard!), 1 crank handle, 4 table clamps and hexagon wrench. 1 front jaw for clamping range from 0 mm at sizes 160 and 200.
Note:
The overall length L of the vice remains unchanged with large components (reduced risk of collisions).
