PCD face mill with bore, PCD, ⌀ D: 32mm
Article no.: 209810 32
Article code:
- Tool material: PCD
- Standard: Manufacturer’s standard
- Type: N
- Tolerance nominal ⌀: ± 0.02
- Direction of infeed: horizontal, oblique and vertical
Product details

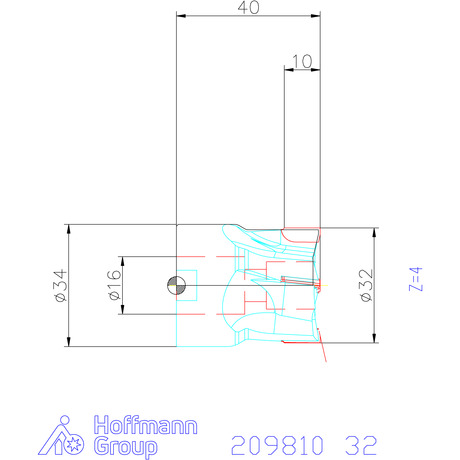

Technical Data
| Cutting edge ⌀ DC | 32 mm | |
| Overall length L | 40 mm | |
| Coating | PCD | |
| Tool material | PCD | |
| Standard | Manufacturer’s standard | |
| Type | N | |
| Tolerance nominal ⌀ | ± 0.02 | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | 0.3×D for side milling | |
| Bore ⌀ | 16 | |
| No. of teeth Z | 4 | |
| Corner chamfer width at 45° | 0.1 mm | |
| Feed fz for slot milling in cast aluminium | 0.2 mm | |
| Through-coolant | yes | |
| Corner chamfer angle | 45 degrees | |
| ⌀ D3 | 32 mm | |
| Ramping angle αmax | 0.6 degrees | |
| axial rake angle, tool | 6 | |
| maximum infeed, indexable insert, secondary cutting edge | 10 mm | |
| Shank type | with bore | |
| Machining strategy | HPC | |
| Type of product | Face Mill |
Identification & Classification
| Article number | 209810 32 | |
| EAN / GTIN | 4069515014854 | |
| Manufacturer number | 209810 32 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
N
6000
N
6000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
2000
N
6000
N
2000
Description
Version:
High-performance PCD face mill for roughing and finish machining. Generous flutes for reliable evacuation of the chips. Coolant directly on the cutting edge. Axial angle 6° positive.
Supplied with:
Special fastening screw for optimal coolant feed.
Note:
Matching face mill arbors are located in the clamping device area, e.g. No. 306530 22. PCD face mill with corner radius 0.1 mm – 1.5 mm are available on request.
