Universal JointKey Quadro, Type: 1
Article no.: 623625 1
Article code:
Product details
Technical Data
| Manufacturer's designation | JointKey Quadro | |
| overall length | 130 mm | |
| Drive profile | Square sockets; Triangular sockets; Two-wing key; Hexagon socket | |
| Type of product | Control panel key |
Identification & Classification
| Article number | 623625 1 | |
| EAN / GTIN | 4003773084389 | |
| Manufacturer number | 00 11 06 V04 | |
| Manufacturer/responsible person | KNIPEX-Werk C. Gustav Putsch KG, Oberkamper Straße 13, 42349 WUPPERTAL, Germany, www.knipex.de |
Description
Version:

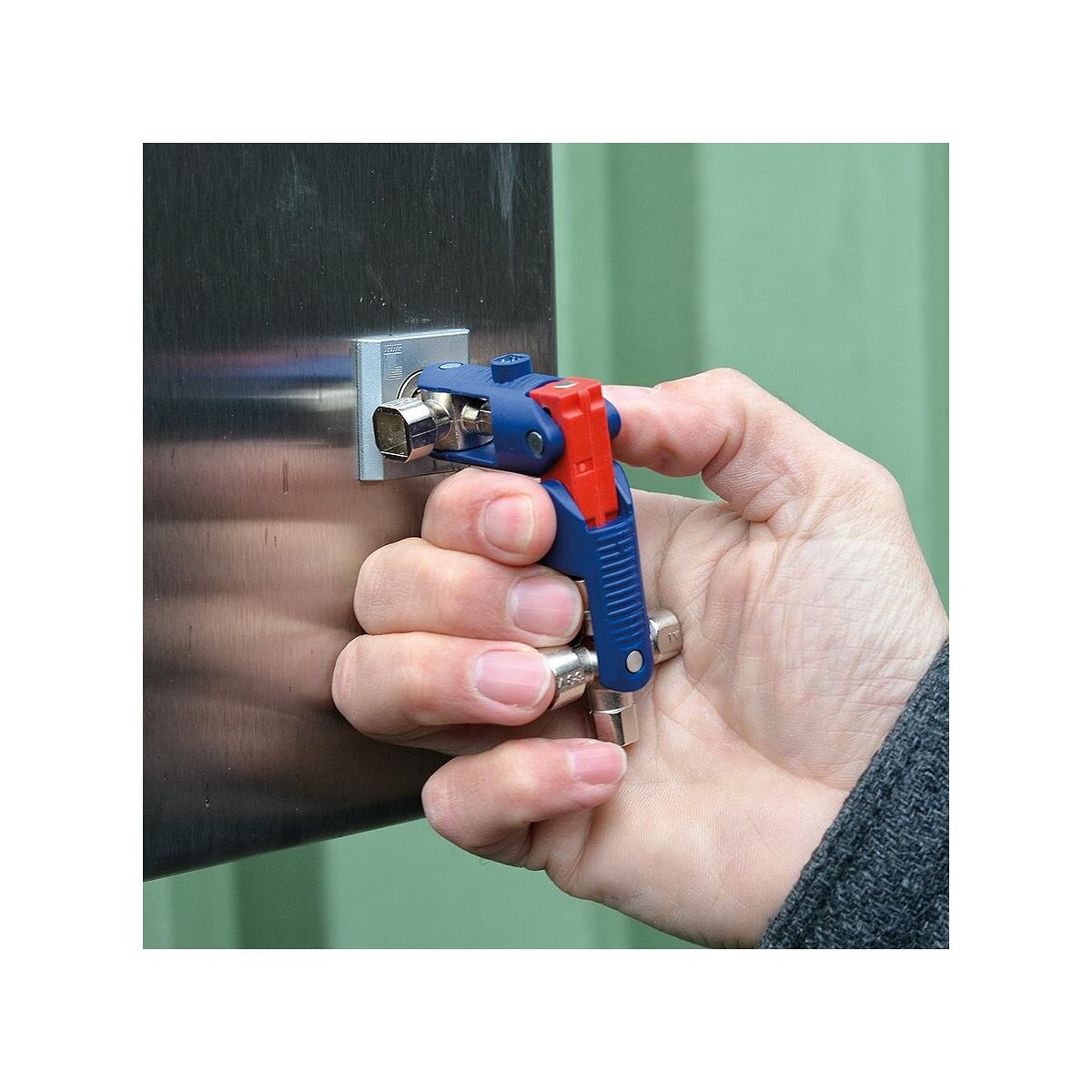

Handy universal wrench with die-cast zinc swivel inserts. Swing arms and connectors of plastic. A total of eight different lock heads can be fitted in position (for a total of 10 different locks). For use either as a T-handle or as a compact retracted variant. The 1/4 inch socket drive permits easy fitting and retention of 1/4 inch sockets.
Advantage:
- 10 different locks
- Each swivel arm can be rotated through 360°
- The lock markings are located directly on the key
Application:
For heating, air conditioning, sanitation, and building services.
Suitable for:
Square 5; 6-7; 8-9 mm, 1/4 inch socket drive, 1/4 inch bit holder, triangular 5-6; 6-7; 8-9 mm, two-wing ⌀ 3-5 mm.
