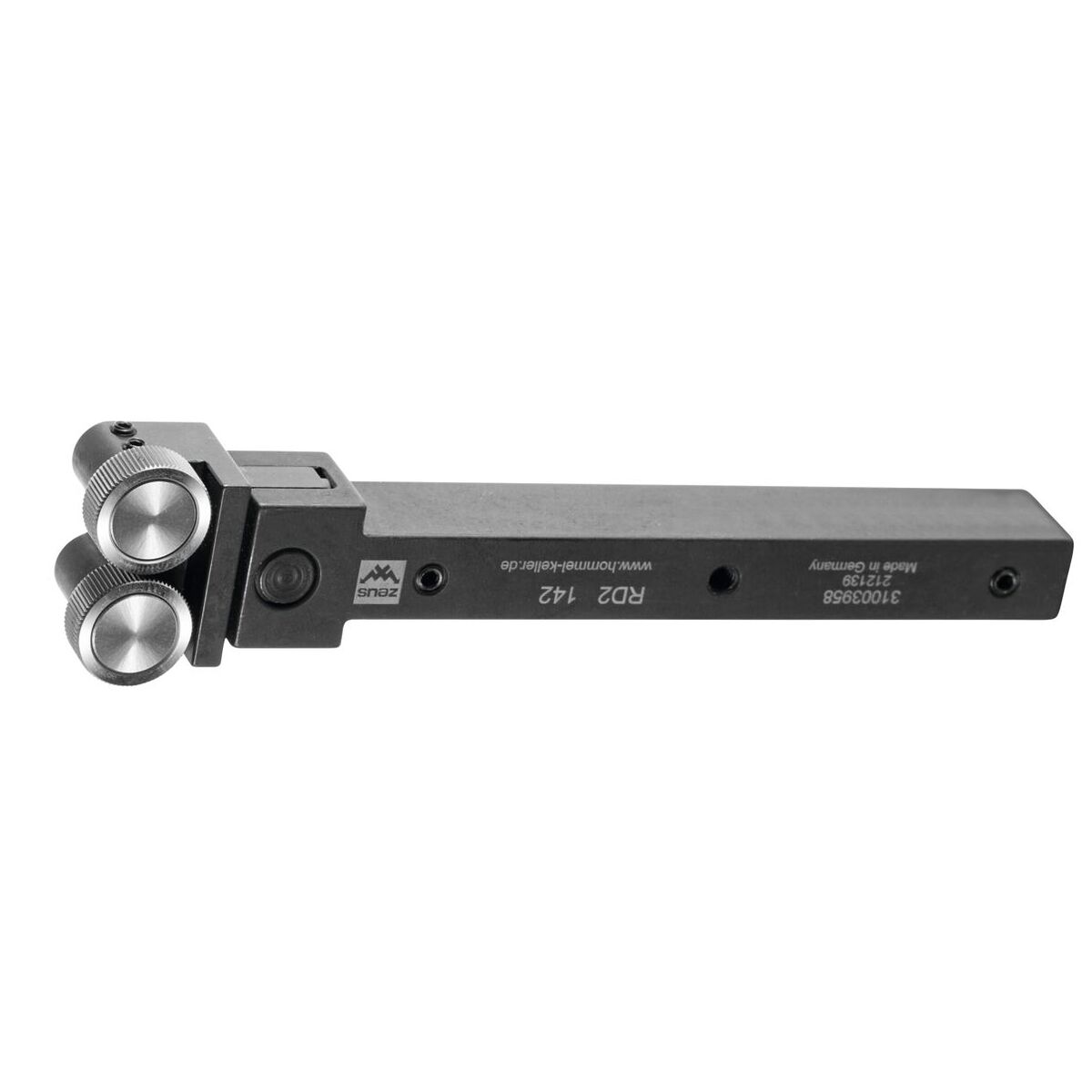

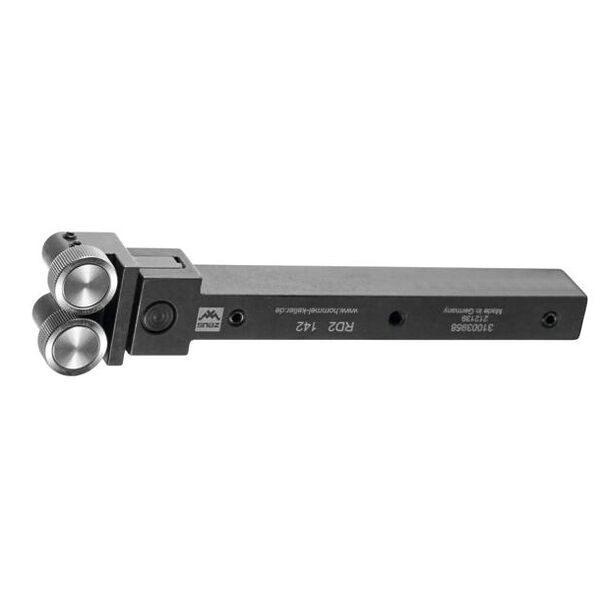

Knurl forming tool Sliding headstock lathe universal, Shank size: 10mm
Article no.: 290089 10
Article code:
- Cutting direction: left-hand and right-hand
- for knurl profile: RAA 2×AA
Product details

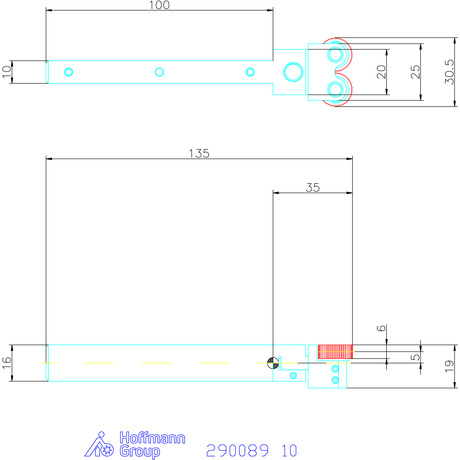

Technical Data
| Cutting direction | left-hand and right-hand | |
| for knurl profile | RAA 2×AA | |
| for knurl ⌀ d1 | 15 mm | |
| for knurl width w | 6 mm | |
| for knurl bore ⌀ d2 | 6 mm | |
| for knurled countersunk ⌀ d3 | 11 mm | |
| Working range | 3 mm - 40 mm | |
| Closure stud | 299925 1 | |
| Disc | 299927 1 | |
| Type of product | Self-centring knurling tool |
Identification & Classification
| Article number | 290089 10 | |
| Manufacturer/responsible person | Hommel + Keller Präzisionswerkzeuge GmbH, Nagelsee 6, 78554 ALDINGEN, Germany, www.hommel-keller.de |
Description
Version:
Grub screws in the shank for clearance angle correction.
Carbide roller pin for increased wear resistance.
Modular design: Can be used universally as right-hand or left-hand version.
Carbide roller pin for increased wear resistance.
Modular design: Can be used universally as right-hand or left-hand version.
