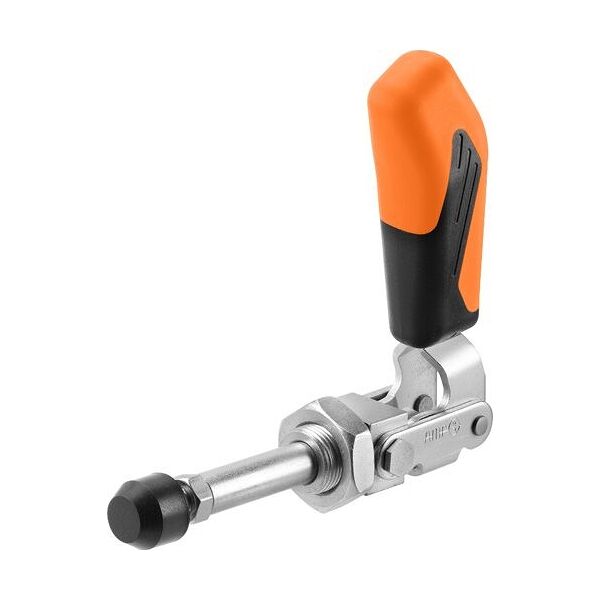

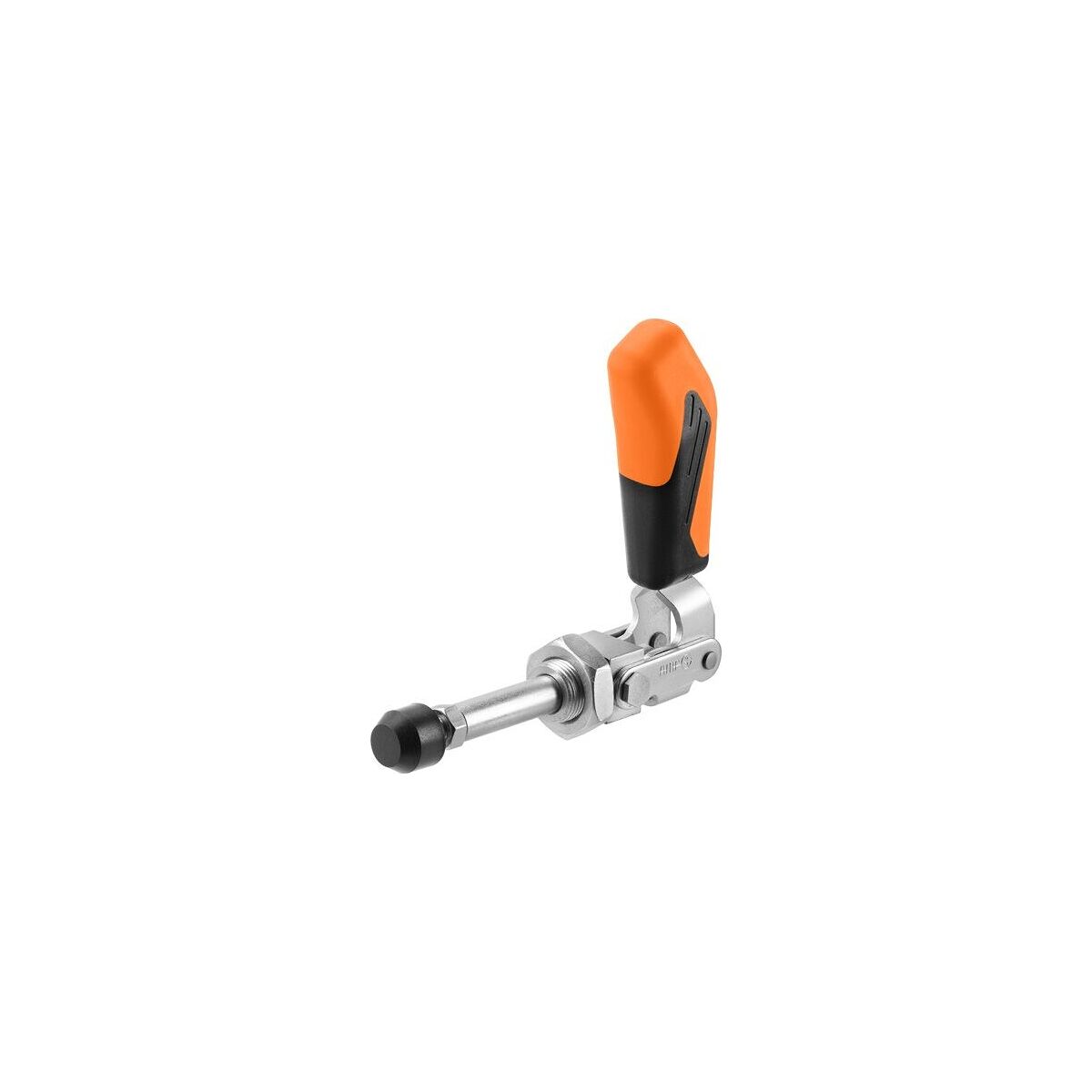

Push-pull toggle clamp short body, Type: 5
Article no.: 376700 5
Article code:
Product details

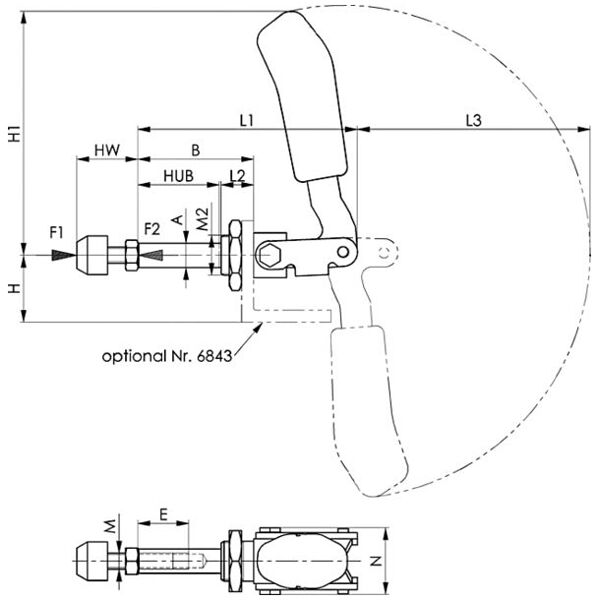

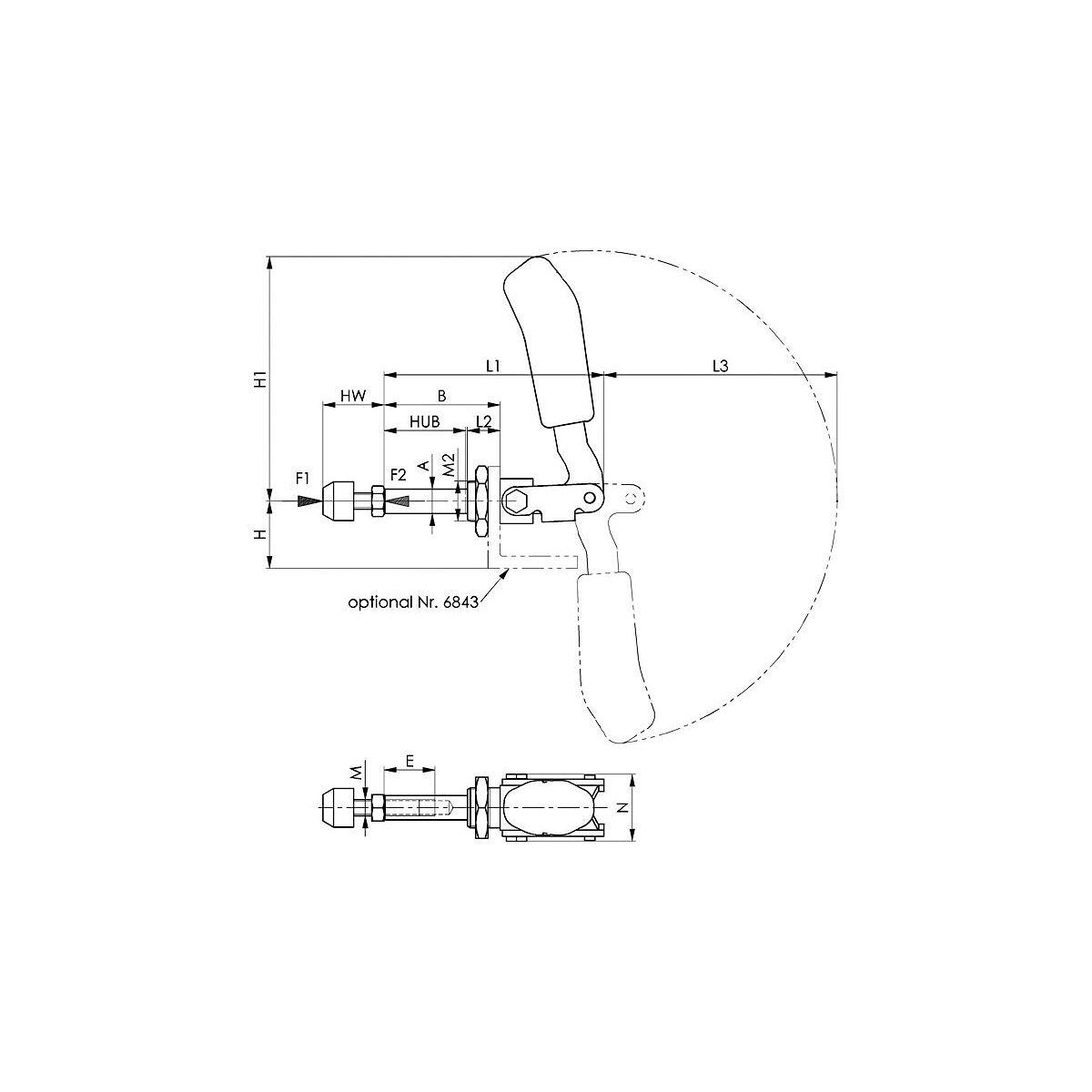

Technical Data
| Type | 6844J | |
| Clamping range | 67 mm | |
| Clamping force P (pressure and traction) | 4,000 N | |
| Overall height H | 149 mm | |
| Overall length L | 364 mm | |
| Contact screw | M12×50 mm | |
| thread at front of clamp | M24×1,5 mm | |
| Type of product | Push-pull toggle clamp |
Identification & Classification
| Article number | 376700 5 | |
| EAN / GTIN | 4020772008567 | |
| Manufacturer number | 557399 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Hardened shoulder screws.
- Compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
Application:
- Direct fixing to sheet metal fixing points.
- Connected to jig body with threaded end of arm.
Optional extras:
Angled base No. 376730.
Note:
- Available in stainless steel on request.
