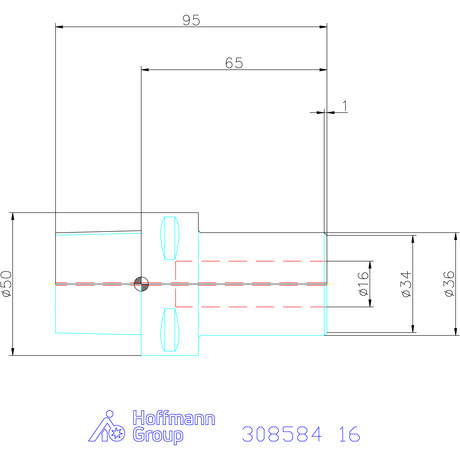

Arbor for indexable drills, PSC 50 short, for shank ⌀ Ds: 16mm
Article no.: 308584 16
Article code:
- Arbor standard: ISO 26623-1
- Through-coolant: yes
- Balance quality G at rotational speed: G 2.5 at 25,000 rpm
- Concentricity: ≤ 3
- Machining strategy: HSC; HPC
Product details
Technical Data
| Adapter | PSC 50 short | |
| Arbor standard | ISO 26623-1 | |
| Through-coolant | yes | |
| Balance quality G at rotational speed | G 2.5 at 25,000 rpm | |
| Concentricity | ≤ 3 µm | |
| Machining strategy | HSC; HPC | |
| Overhang dimension A | 65 mm | |
| External ⌀ D | 36 mm | |
| Type of product | Side lock arbor |
Identification & Classification
| Article number | 308584 16 | |
| EAN / GTIN | 4067263141136 | |
| Manufacturer number | 308584 16 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Position of the grub screw for countersinking in the indexable drill offset by 0.4 mm.
- When tightening the increased contact face ⌀ is clamped against the front face of the arbor.
- Better support, allowing higher feed rates.
- High concentricity due to 3 µm ground flat contact face.
- With RFID/Balluffchip bore.
Application:
For mounting all standard indexable drills to DIN 6595, Part 1.
Suitable for:
All indexable drills with parallel shank to DIN 6595, Part 1.
