Master Mute boring bar A.. SCLCR 95°, for indexable inserts CC.., right
Article no.: 265008 08/06
Article code:
- Shank type: Steel
- Standard: Works standard
- Vibration: damped
- Through-coolant: yes
Product details

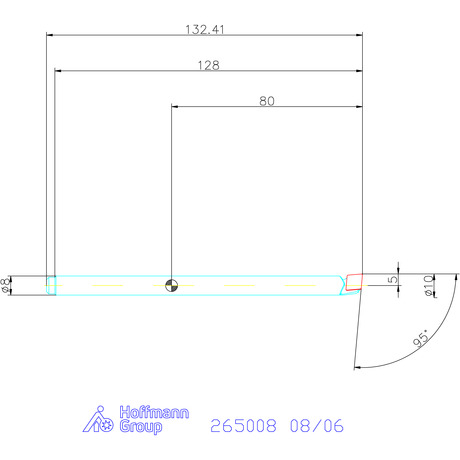

Technical Data
| Series | Master Mute | |
| Shank ⌀ Ds | 8 mm | |
| Insert size | 6 mm | |
| Application type | right-hand | |
| Shank type | Steel | |
| Standard | Works standard | |
| Vibration | damped | |
| Through-coolant | yes | |
| ISO code toolholder | A08X SCLCR/L06 | |
| Setting angle κ | 95 degrees | |
| suitable indexable insert | CC.. 0602.. | |
| Minimum pre-drill ⌀ Dmin | 10 mm | |
| Centre offset L3 | 5 mm | |
| Overall length L | 128 mm | |
| Overhang L1 | 88 mm | |
| Set of insert screws | 269028 54 | |
| Application | Internal longitudinal turning; Facing | |
| Type of product | Boring Bar |
Identification & Classification
| Article number | 265008 08/06 | |
| EAN / GTIN | 4069515024426 | |
| Manufacturer number | 265008 08/06 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Round shank without clamping face.
Carbide-reinforced shank.
Note:
Boring bar can be shortened as far as length Lmin. Use only with internal cooling (temperature resistance of up to max. 100°C).
