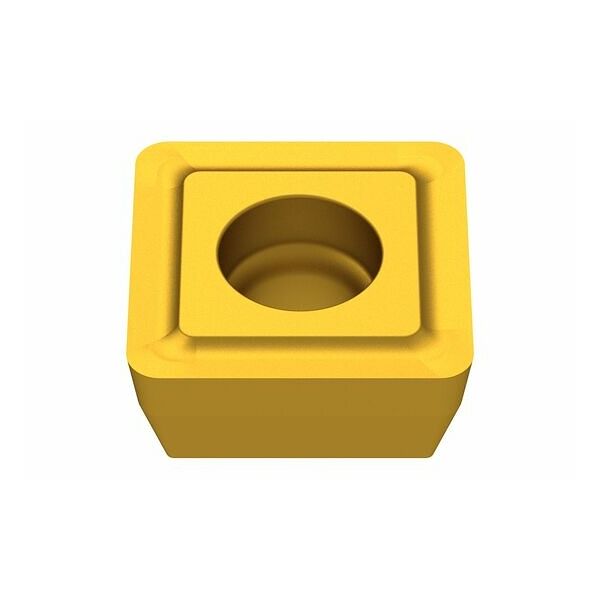

KOMET® Indexable insert, BK8425, Designation type W83: 13-010
Article no.: 236520 13-010
Article code:
Product details
Technical Data
| ISO code indexable insert | SOEX 050204 | |
| Series | KUB Quatron® | |
| Designation | 13-010 | |
| Type | BK8425 | |
| Type | Uni | |
| Tool material | Carbide | |
| Feed f in steel < 900 N/mm2 | 0.12 mm/rev. | |
| Number of changes/inserts | 4 | |
| maximum cutting depth ap max when side milling | 0.67 mm | |
| maximum cutting depth ap max when slot milling from solid | 0.67 mm | |
| Type of product | Indexable insert for drilling |
Identification & Classification
| Article number | 236520 13-010 | |
| EAN / GTIN | 4047109103399 | |
| Manufacturer number | W83 13010.048425 | |
| Manufacturer/responsible person | Ceratizit Besigheim GmbH, Zeppelinstraße 3, 74354 BESIGHEIM, Germany, www.kometgroup.com |
Application Table
N
600
N
300
N
250
P
300
P
250
P
200
P
160
P
130
M
160
M
160
S
80
K
200
Description
Version:
Ground on the circumference, with rounded cutting edge and sintered chip breaker.
Note:
Application values refer to the KUB Quatron®.
