BEYCEPS lifting tool and assembly tool, Safe working load: 180kg
Article no.: 086225 180
Article code:
New product
Click to enlarge image
Click to enlarge image
Click to enlarge image

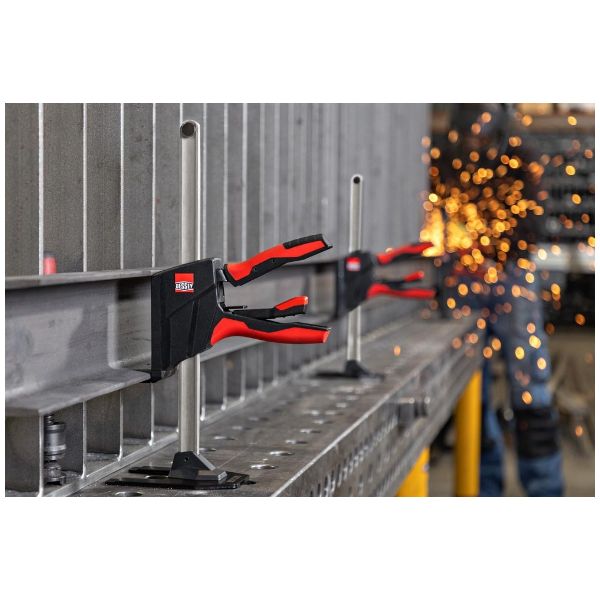

Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Click to enlarge image
Application example
Product details
Technical Data
| Length | 260 mm | |
| Width | 110 mm | |
| Height | 440 mm | |
| Lifting height | 230 mm | |
| minimum insertion height | 5 mm | |
| maximum load capacity | 180 t | |
| Weight | 1.94 kg |
Identification & Classification
| Article number | 086225 180 | |
| Manufacturer/responsible person | BESSEY Tool GmbH & Co. KG, Muehlenwieserstraße 40, 74321 BIETIGHEIM-BISSINGEN, Germany, www.bessey.de |
Description
Version:
BEYCEPS one-handed assembly tool
- Lifting force up to 1,800 N / 180 kg / 400 lbs
- For gentle and safe lifting (up to 8 mm per pump handle operation), lowering (up to 4 mm per lowering lever operation) and alignment of workpieces with just one hand, with millimetre precision.
- Ergonomic and safe handling, as the pump handle made of 2-component plastic is positioned on the top and the two levers for releasing and fine lowering are arranged separately underneath.
- Closed plastic housing protects the mechanism against dust, dirt and chips and prevents fingers from getting caught.
- Can be repositioned without tools for clamping.
- Protective caps for the base and lifting plate – included in delivery – prevent damage to sensitive surfaces.
