TorqueVario®-S electric torque screwdriver set, 19 pieces VDE fully insulated, maximum torque: 500cNm
Article no.: 659370 500
Article code:
- Direction of tightening: Right-hand tightening
- Torque measuring accuracy: ±6
- Test certificate: Manufacturer’s test certificate
- Standard: DIN EN ISO 6789
Product details
Technical Data
| maximum torque | 500 cNm | |
| Direction of tightening | Right-hand tightening | |
| Torque measuring accuracy | ±6 % | |
| Test certificate | Manufacturer’s test certificate | |
| Series | TorqueVario® | |
| Overall length L | 138 mm | |
| Torque range | 0,8 Nm - 5 Nm | |
| Torque range | 80 cNm - 500 cNm | |
| Display | analogue | |
| Release signalling | acoustic; haptic | |
| Trigger principle | mechanical short travel release | |
| Connection format | exchangeable blade | |
| Measurement technology | mechanical | |
| Torque fixed setting | no | |
| Data can be recorded | no | |
| Setting the trigger value | with adjustment scale | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | adjustable | |
| Standard | DIN EN ISO 6789 | |
| Drive profile | Slot-head screwdriver; Screwdriver for Phillips; Pozidriv screwdriver; Screwdriver for TORX® screws; Combination profile screwdriver Pozidriv/slot-head | |
| Type of product | Torque screwdriver |
Identification & Classification
| Article number | 659370 500 | |
| EAN / GTIN | 4010995367916 | |
| Manufacturer number | 36791 | |
| Manufacturer/responsible person | Wiha Werkzeuge GmbH, Obertalstraße 3-7, 78136 SCHONACH, Deutschland, www.wiha.com |
Description
Version:
Torque continuously adjustable using Torque−Setter (included). On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then immediately ready for use again. Handle and blade fully insulated up to 1000 V to DIN EN IEC 60900 / VDE 0682-201. With 15 Slim blades = reduced blade/and insulation diameter for deep-set screw and spring elements (insulation ⌀ = blade ⌀).

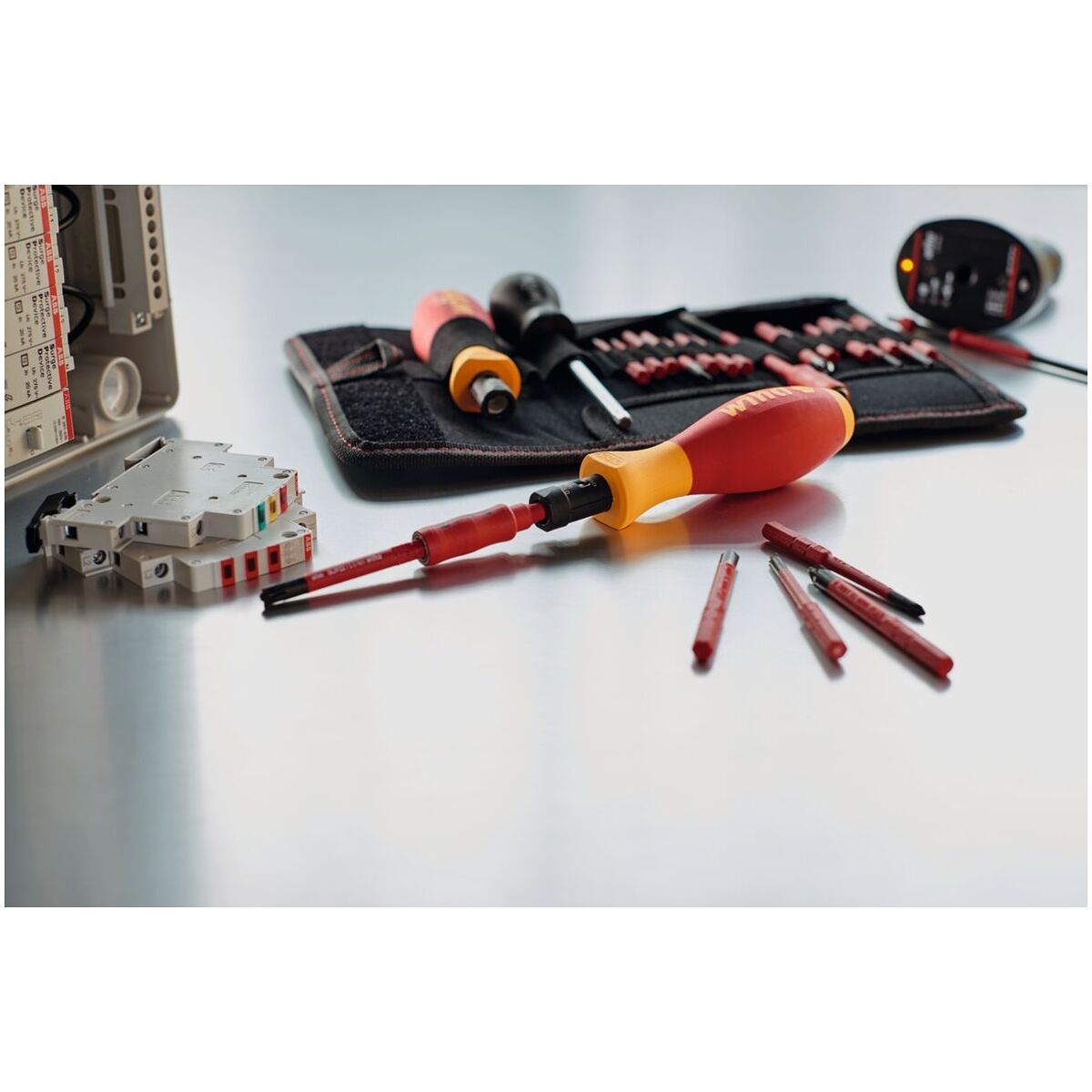

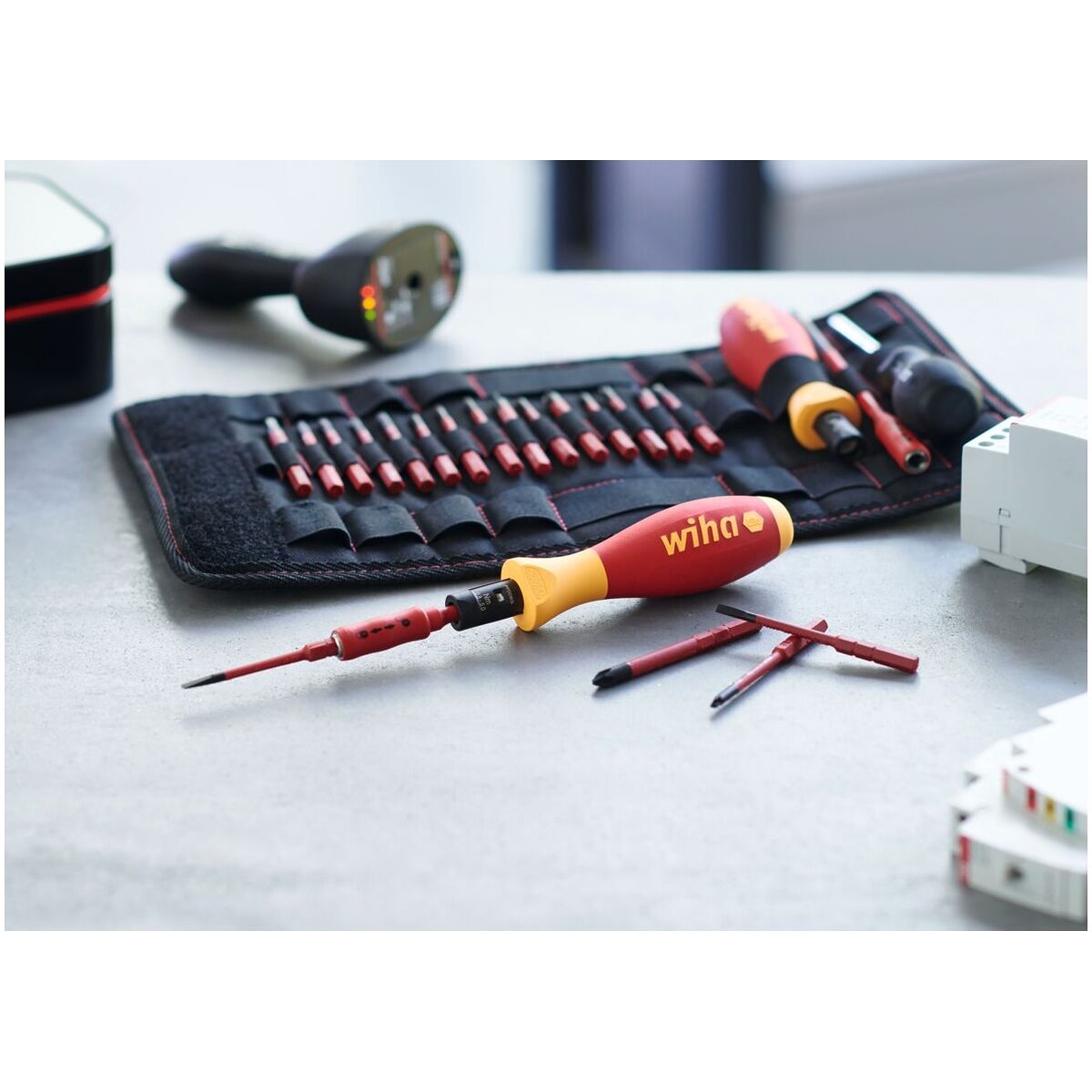

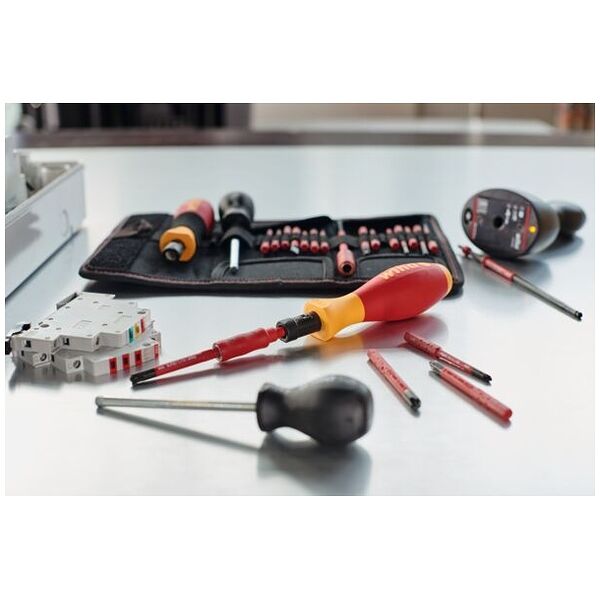

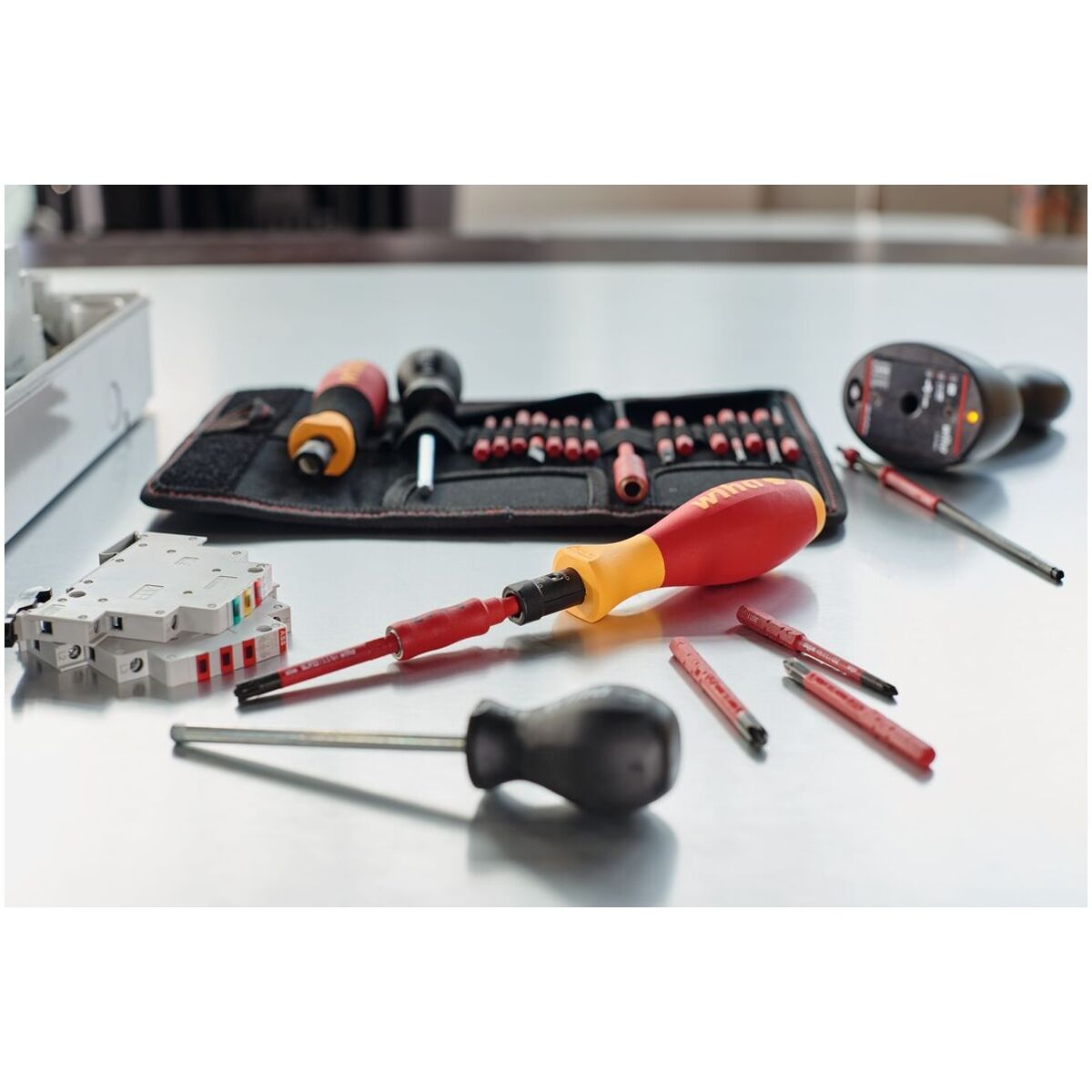

The fully certified TorqueVario®-S VDE torque system provides controlled screw tightening and at the same time safety in electrical applications. The tool set includes an ergonomically designed torque screwdriver handle with integrated numerical scale, 15 slimBits, a bit holder and the adjustment tool. All components are conveniently and neatly arranged in a high-quality, durable bag. The VDE torque screwdriver covers a wide range of applications with its variable torque range of 0.8-5.0 Nm. A clearly audible and perceptible signal when the torque is triggered ensures a process-safe torque mechanism that protects against material damage and rework. With a triggering accuracy of +/- 6%, the torque tool meets the requirements of DIN EN ISO 6789. The insulated ClicFix bit holder ensures a secure hold of the 75 mm long slimBits by means of a mechanical blade lock. Both the torque screwdriver and the slimBits are subjected to a routine test in accordance with the international standard IEC 60900 and enable safe working on live parts up to 1,000 V AC.
The blade diameter of conventional electric screwdrivers is often too large to reach deep-seated screws. However, removing the insulation is not permitted and also jeopardizes your own safety. Designed specifically for electrical applications, the Wiha slimTECHNOLOGY incorporates protective insulation into the blade to enable up to 33% slimmer blades. The slimBits can thus also be used to reach low-lying screw and spring elements effortlessly. The isolated slimBits undergo a routine test in accordance with the international standard IEC 60900 and enable safe working in the range of live parts up to 1000 V AC.
The fully certified TorqueVario®-S VDE torque system provides controlled screw tightening and at the same time safety in electrical applications. The tool set includes an ergonomically designed torque screwdriver handle with integrated numerical scale, 15 slimBits, a bit holder and the adjustment tool. All components are conveniently and neatly arranged in a high-quality, durable bag. The VDE torque screwdriver covers a wide range of applications with its variable torque range of 0.8-5.0 Nm. A clearly audible and perceptible signal when the torque is triggered ensures a process-safe torque mechanism that protects against material damage and rework. With a triggering accuracy of +/- 6%, the torque tool meets the requirements of DIN EN ISO 6789. The insulated ClicFix bit holder ensures a secure hold of the 75 mm long slimBits by means of a mechanical blade lock. Both the torque screwdriver and the slimBits are subjected to a routine test in accordance with the international standard IEC 60900 and enable safe working on live parts up to 1,000 V AC.
The blade diameter of conventional electric screwdrivers is often too large to reach deep-seated screws. However, removing the insulation is not permitted and also jeopardizes your own safety. Designed specifically for electrical applications, the Wiha slimTECHNOLOGY incorporates protective insulation into the blade to enable up to 33% slimmer blades. The slimBits can thus also be used to reach low-lying screw and spring elements effortlessly. The isolated slimBits undergo a routine test in accordance with the international standard IEC 60900 and enable safe working in the range of live parts up to 1000 V AC.
Application:
For use at voltages up to 1000 V.
Standard:
Tested to DIN EN ISO 6789.
Content:
Slot-head blades: 2.5; 3.5; 5.5; 6.5
Blades for Phillips: PH1 and PH2
Blades for Pozidriv: PZ1 and PZ2
blades for Torx®: TX9; TX10; TX15; TX20; TX25
Pozidriv-slot-head combination profile: PZ/ S1 and PZ/ S2 (combination profile)
Torque screwdriver: 1 pc.
Torque setter adjustment tool: 1 pc. No. 659931 size 1
Adapter for slimBits: 1 pc.
Blades for Phillips: PH1 and PH2
Blades for Pozidriv: PZ1 and PZ2
blades for Torx®: TX9; TX10; TX15; TX20; TX25
Pozidriv-slot-head combination profile: PZ/ S1 and PZ/ S2 (combination profile)
Torque screwdriver: 1 pc.
Torque setter adjustment tool: 1 pc. No. 659931 size 1
Adapter for slimBits: 1 pc.
Note:
6 mm slimBits must only be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system).
