Plug-in ratchet, slim, with recessed reverser 2-3/8 inch
Article no.: 657640 2-3/8
Article code:
- Exchangeable tool: Plug-in head
- Square drive: 3/8
- Material: Chrome vanadium steel
Product details
Technical Data
| Exchangeable tool | Plug-in head | |
| Square drive | 3/8 in | |
| Width b | 40 mm | |
| Height h | 14,3 mm | |
| Long-term rated loading | 200 Nm | |
| Pitch S | 36 mm | |
| No. of teeth | 40 | |
| Plug-in shank | 14×18 mm | |
| Material | Chrome vanadium steel | |
| Type of product | Ratchet |
Identification & Classification
| Article number | 657640 2-3/8 | |
| EAN / GTIN | 4000896179695 | |
| Manufacturer number | 6602-1 | |
| Manufacturer/responsible person | HAZET-WERK Hermann Zerver GmbH & Co. KG, Güldenwerther Bahnhofsstraße 25-29, 42857 REMSCHEID, Deutschland, www.hazet.com |
Description
Version:
Drop-forged; all plug-in heads = Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench.

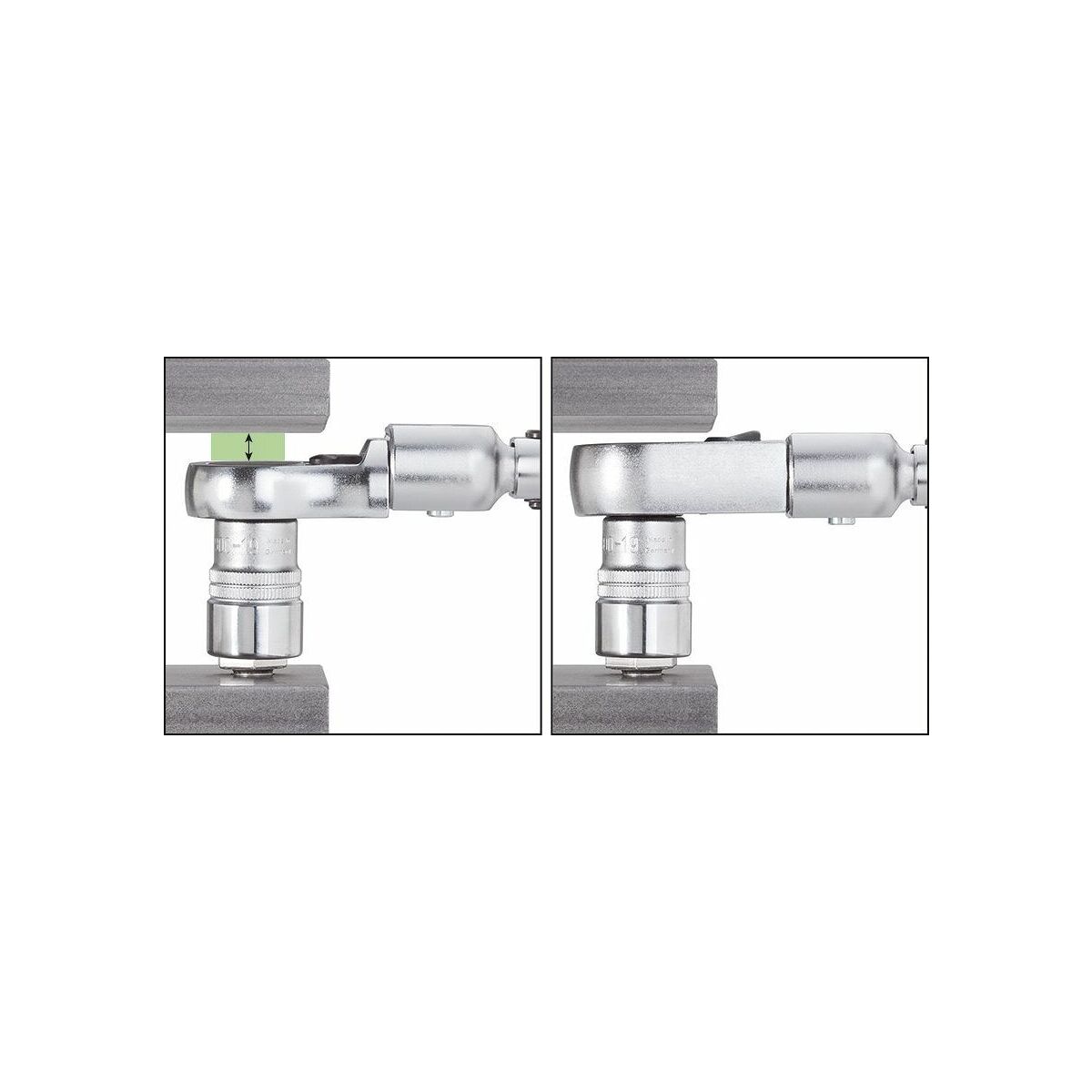

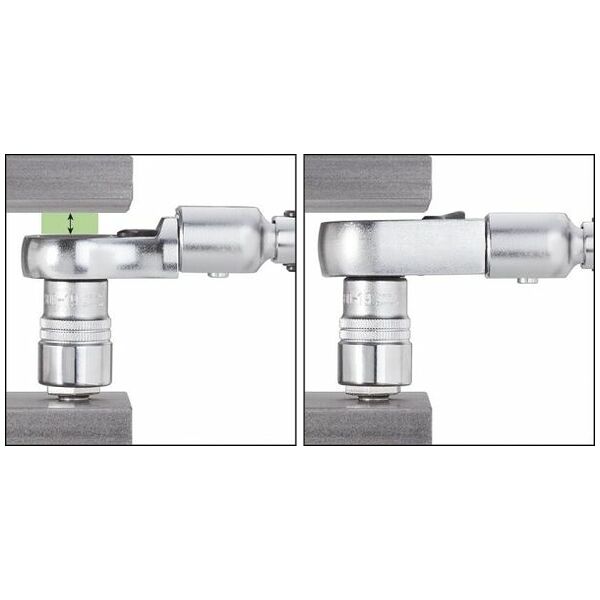

Slim plug-in ratchet with recessed reverser.
Slim plug-in ratchet with recessed reverser.
Material:
Chrome vanadium steel, chrome-plated.
Cutting data:
Legend for drawing and formula:
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
Suitable for:
Torque wrench with rectangular sockets.
Note:
Please note the pitch of the plug-in head and match this to that of the adjustment tool (see test certificate/operating instructions of the torque wrench you are using). If these vary, correct the pitch!
Further plug-in heads with rectangular plug-in shank 22 × 28 mm available on request.
Further plug-in heads with rectangular plug-in shank 22 × 28 mm available on request.
