Burr Carbide J1013 GARANT
Article no.: 541000 J1013
Article code:
Product details
Technical Data
| Series | Tooth configuration Z3 | |
| Tooth type abbreviation | Z3 | |
| Toothing grit designation | medium | |
| Tool material | Carbide | |
| Shape | J1013 | |
| Shape description | countersink | |

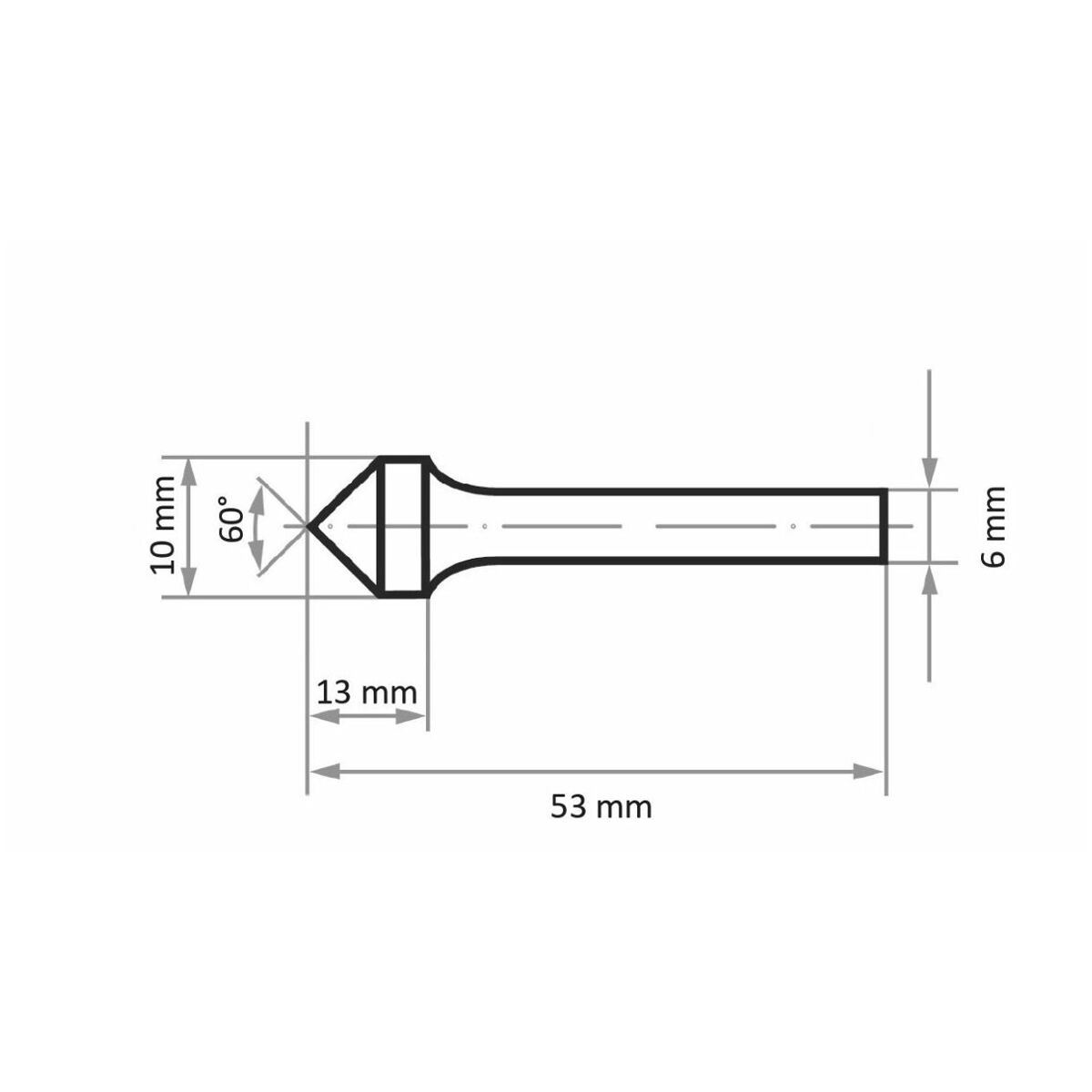

| Head ⌀ | 10 mm | |
| Head length | 13 mm | |
| Overall length | 53 mm | |
| Shank ⌀ | 6 mm | |
| Angle | 60 degrees | |
| Type of product | Burr |
Identification & Classification
| Article number | 541000 J1013 | |
| EAN / GTIN | 4045197521903 | |
| Manufacturer number | 541000 J1013 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, www.hoffmann-group.com |
Description
Version:
GARANT burrs are manufactured from high performance carbide grades with high wear resistance and maximum cutting edge strength, using only the latest CNC machines. Steel shanks are used when the head diameter is larger than the shank diameter, otherwise they are made from solid carbide.
Conical shape for countersinking and chamfering.
Special countersink shape (KSJ). Angle 60°.
Special countersink shape (KSJ). Angle 60°.
Application:
Suitable for use with power tools and industrial robots, on almost all materials. For deburring, edge breaking, cleaning, weld and surface preparation.
Note:
Reduced speed for burrs with an overall length of 120 mm: maximum 11,000 rpm
