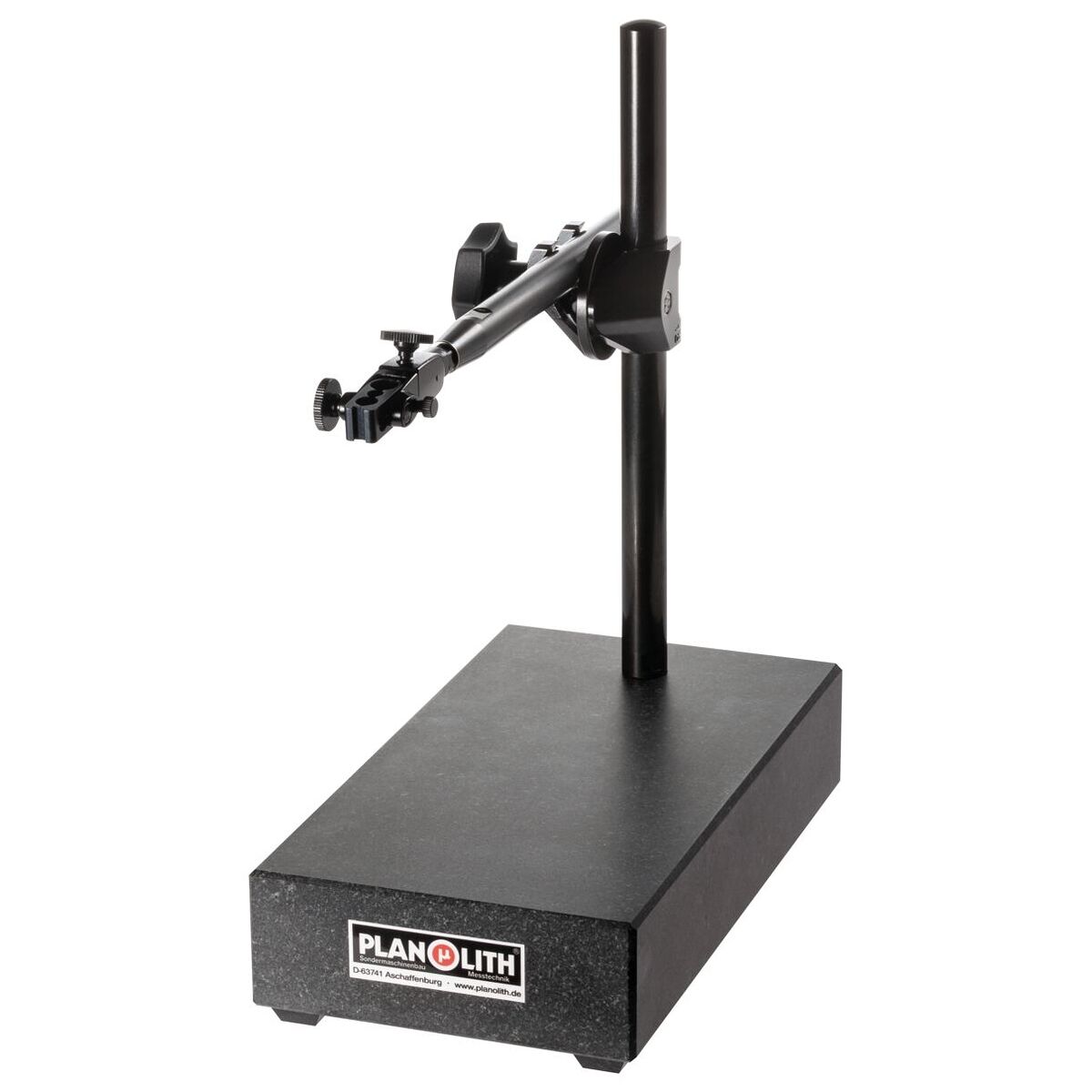

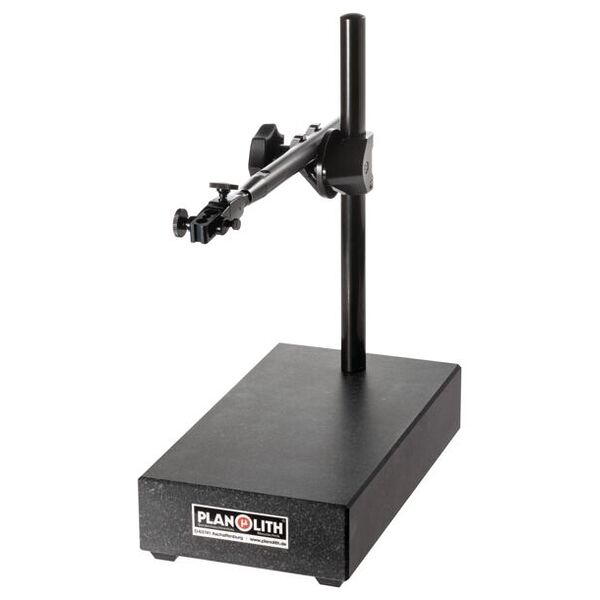

Universal precision comparator stand Granite 260 mm
Article no.: 442534 260
Article code:
- Standard: DIN 876
Product details
Technical Data
| Standard | DIN 876 | |
| Throat | 210 mm | |
| Maximum measuring height | 260 mm | |
| Column ⌀ | 18 mm | |
| Cross arm ⌀ | 16 mm | |
| Measuring face length | 200 mm | |
| Measuring face width | 140 mm | |
| Connection thread | M10 | |
| Table length | 260 mm | |
| Table width | 140 mm | |
| Weight | 7 kg | |
| Type of product | Comparator stand |
Identification & Classification
| Article number | 442534 260 | |
| EAN / GTIN | 2050002047044 |
Description
Version:
Stand table precision diamond lapped. Extremely rigid and solid structure. Natural granite table of finest quality and hardness.

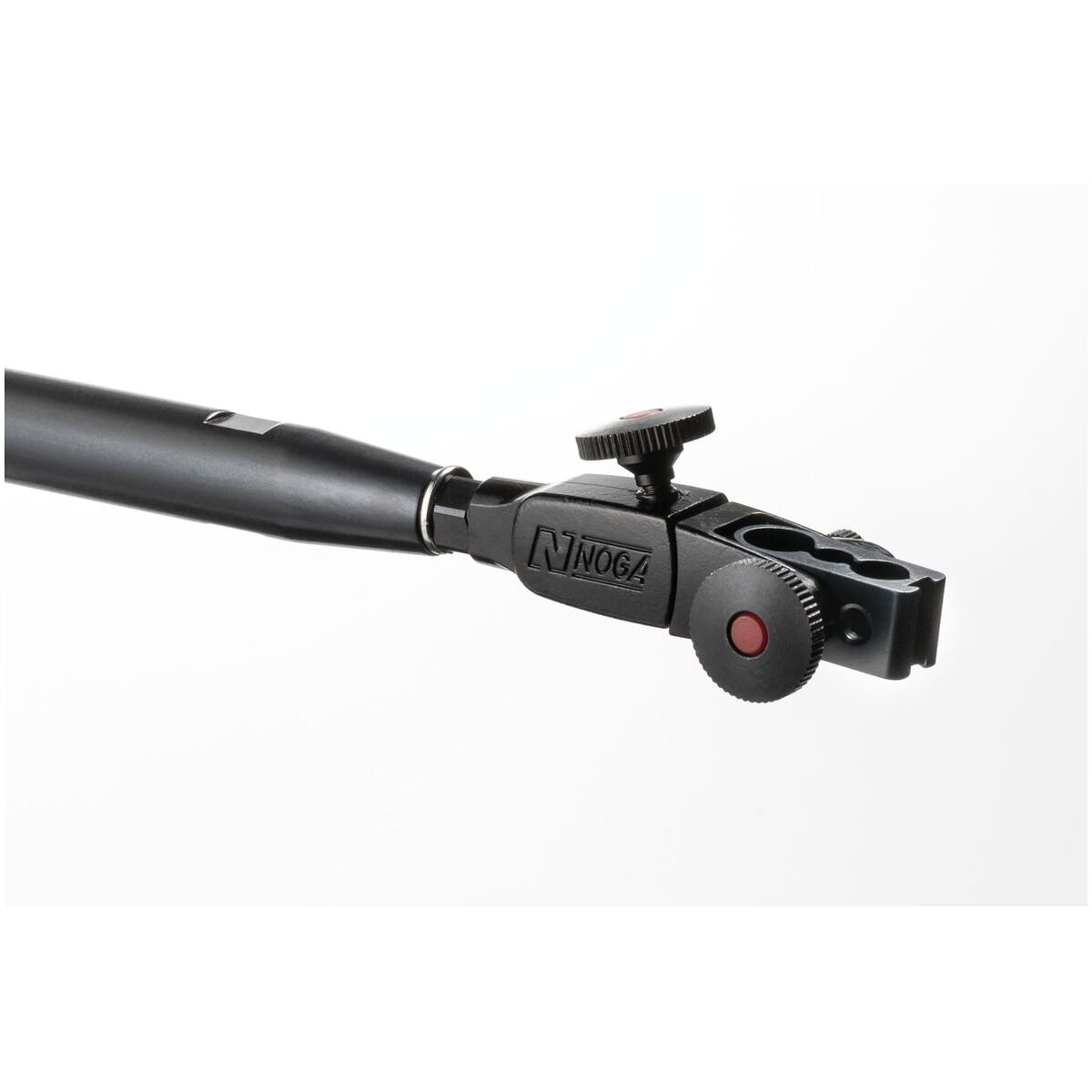

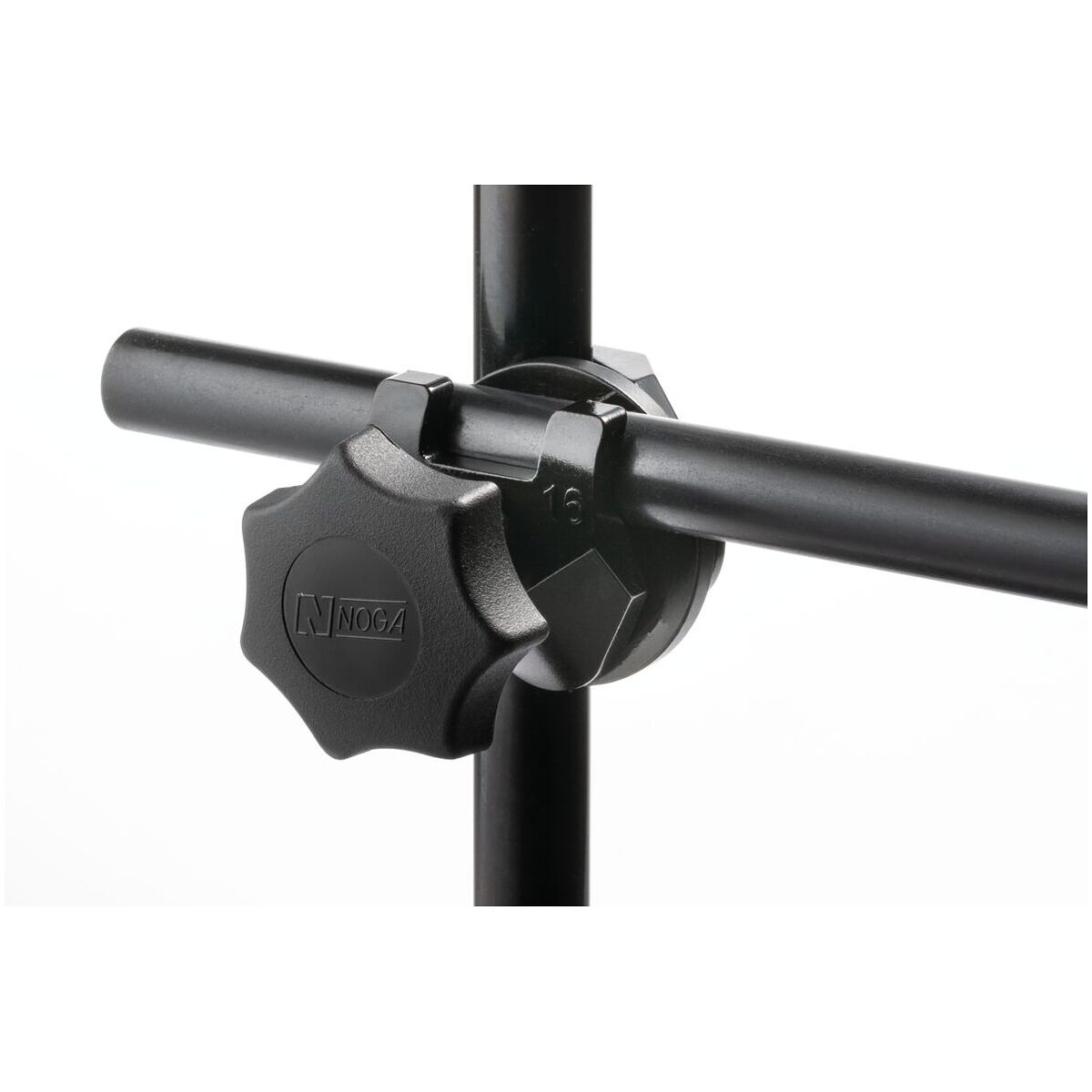

Precision comparator stand with universal measuring arm. 3-point clamping for high stiffness. Dial indicator holder with fine adjustment, for shank ⌀ 6 mm, 8 mm, 3/8 inch and lever dial indicators with dovetailed clamping slides.
Flatness ≤ 2 µm.
Precision comparator stand with universal measuring arm. 3-point clamping for high stiffness. Dial indicator holder with fine adjustment, for shank ⌀ 6 mm, 8 mm, 3/8 inch and lever dial indicators with dovetailed clamping slides.
Flatness ≤ 2 µm.
