IMICRO internal micrometer 3,5-4 mm
Article no.: 428800 3,5-4
Article code:
- Standard: DIN 863
- Micrometer barrel graduations: 1/50
- Test certificate: Manufacturer’s test certificate
Product details
Technical Data
| Standard | DIN 863 | |
| Measuring range | 3,5 mm - 4 mm | |
| Scale divisions | 0,001 mm | |
| Micrometer barrel graduations | 1/50 mm | |
| Error limit | 0,004 mm | |

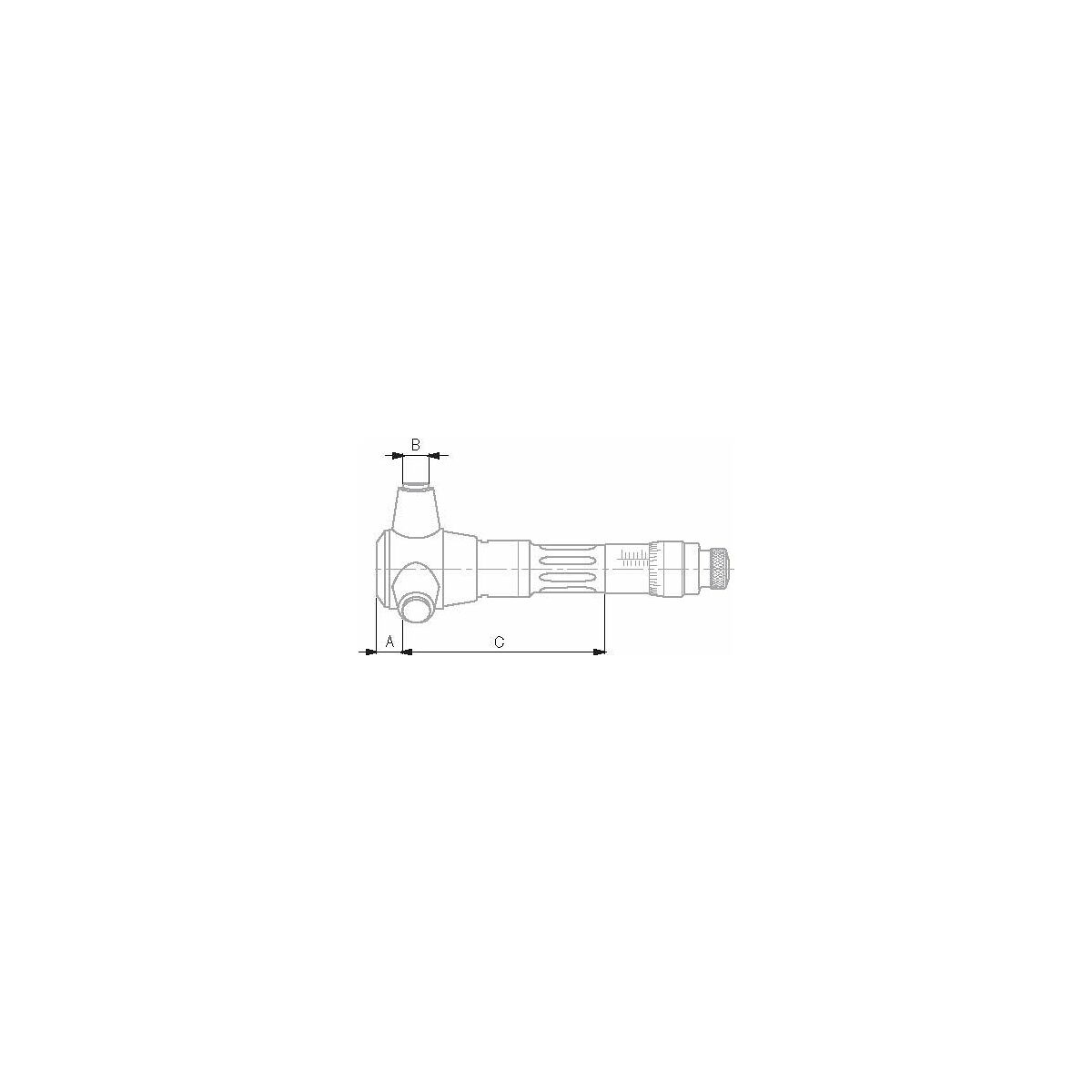

| Dimension a | 2 mm | |
| Standard measuring depth | 20 mm | |
| Measurement technology | analogue | |
| Test certificate | Manufacturer’s test certificate | |
| Type of product | 3-point internal micrometer |
Identification & Classification
| Article number | 428800 3,5-4 | |
| EAN / GTIN | 7630041108330 | |
| Manufacturer number | 00813410 |
Description
Version:
Analogue 3-point internal micrometer for high-precision measurement of bores, even at large depths (can be extended with up to three extensions). Self-centring and self-aligning. Individual internal micrometer to Abbé’s principle (no first order tilt error).
Anvils of hardened steel (HV30−770).
Optional extras:
Note:
Centring devices for large measurement depths on request.
