Clamping screw set 12/M12
Article no.: 375400 12/M12
Article code:
Product details
Technical Data
| Type | 6520 | |
| T-slot nominal size | 12 mm | |
| Thread | M12 | |
| Wooden box length | 278 mm | |
| Wooden box width | 234 mm | |
| Wooden box height | 36 mm | |
| Type of product | Clamping screw |
Identification & Classification
| Article number | 375400 12/M12 | |
| EAN / GTIN | 4020772082994 | |
| Manufacturer number | 82990 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Deutschland, www.amf.de |
Description
Version:
All parts quenched and tempered. Strength class 8.8 or 10.

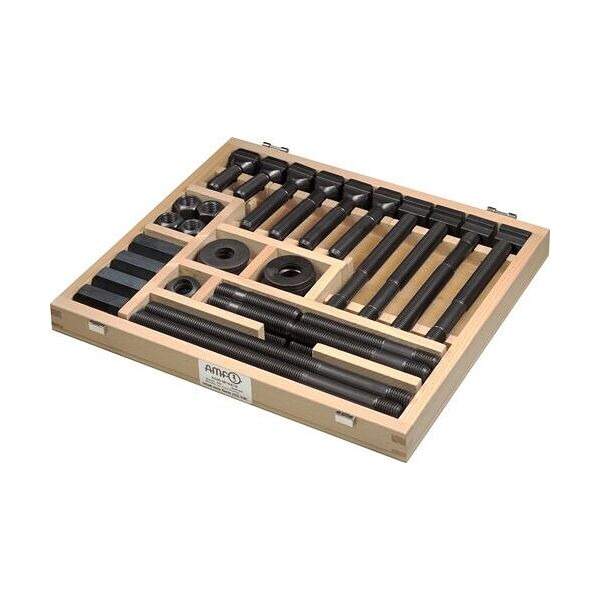

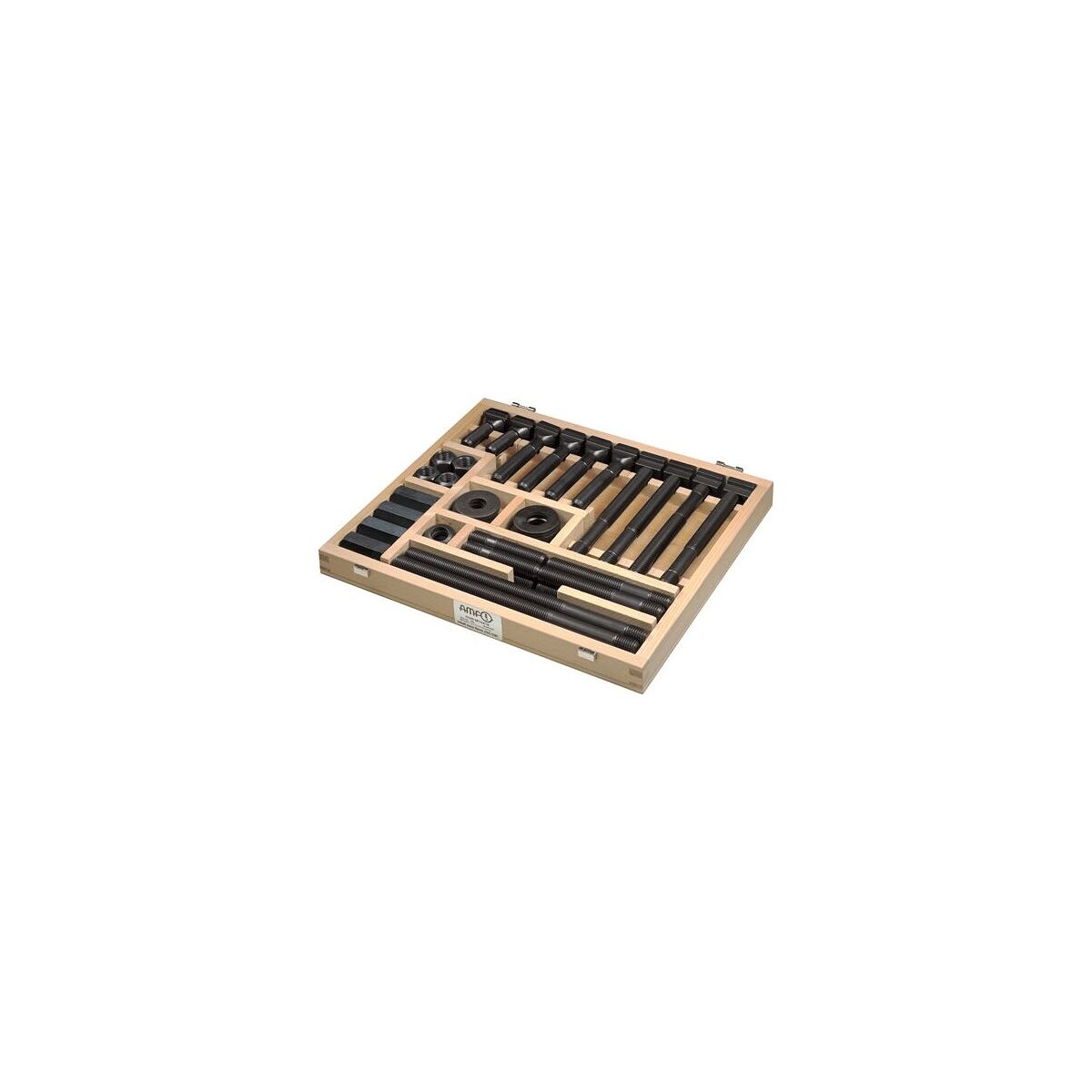

Presented in a sturdy wooden box with hinged lid.
Presented in a sturdy wooden box with hinged lid.
Supplied with:
T-bolts No. 375300 DIN 787: 4 pcs./80 mm; 4 pcs./125 mm; 2 pcs./50 mm
Studs No. 375380 DIN 6379: 4 pcs./63 mm; 4 pcs./100 mm; 4 pcs./200 mm
tall nuts No. 375385 DIN 6330 B: 4 pcs.
Extension nuts No. 375395: 4pcs.
Plain washers No. 375340 DIN 6340: 4pcs.
Spherical seat washers and collared washers No. 375350; 375360 DIN 6319 C + G: 4pcs.
Studs No. 375380 DIN 6379: 4 pcs./63 mm; 4 pcs./100 mm; 4 pcs./200 mm
tall nuts No. 375385 DIN 6330 B: 4 pcs.
Extension nuts No. 375395: 4pcs.
Plain washers No. 375340 DIN 6340: 4pcs.
Spherical seat washers and collared washers No. 375350; 375360 DIN 6319 C + G: 4pcs.
